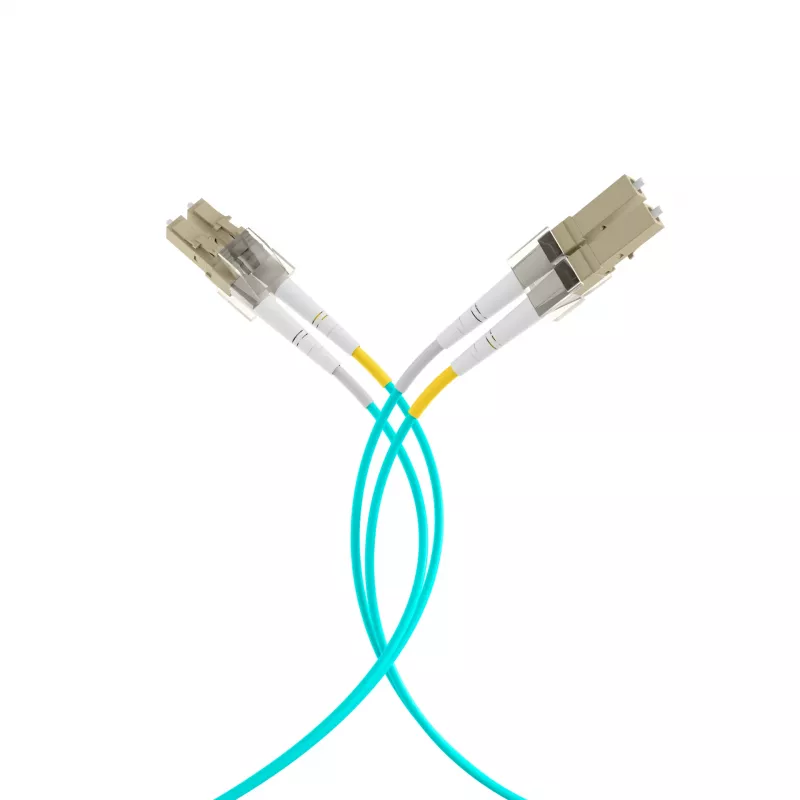

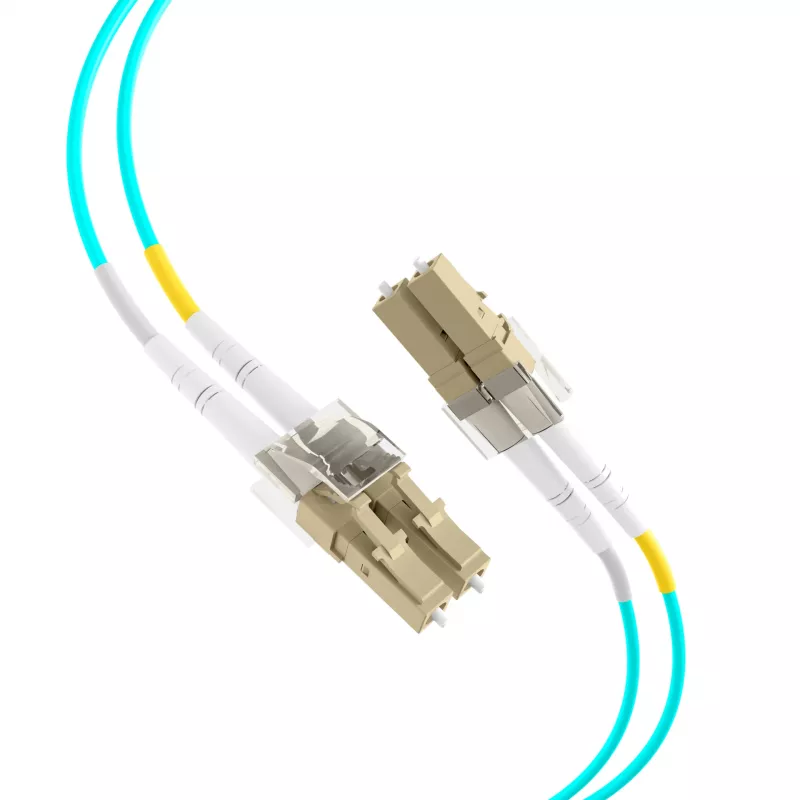

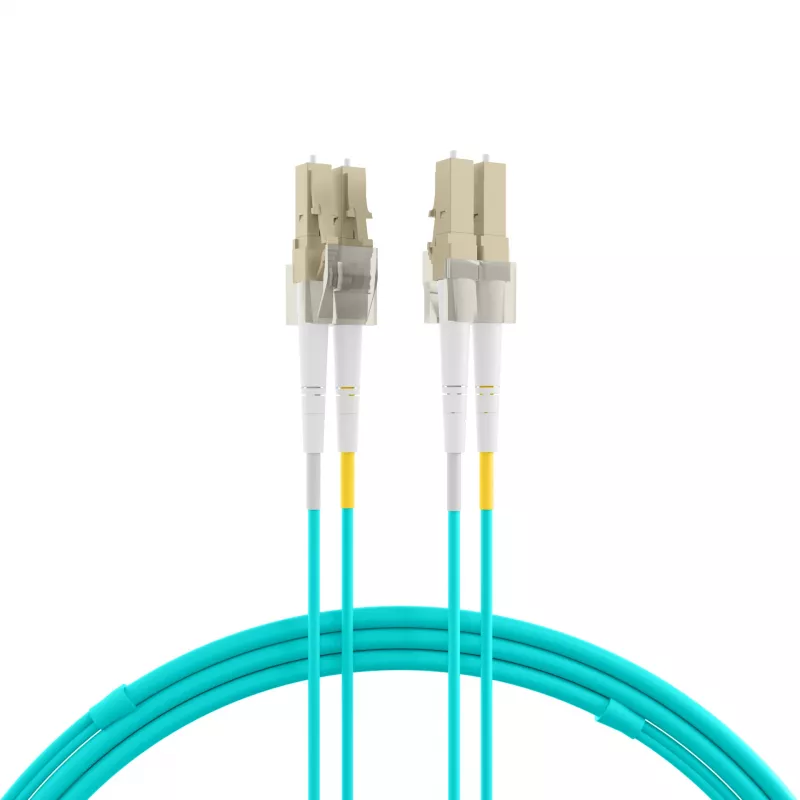

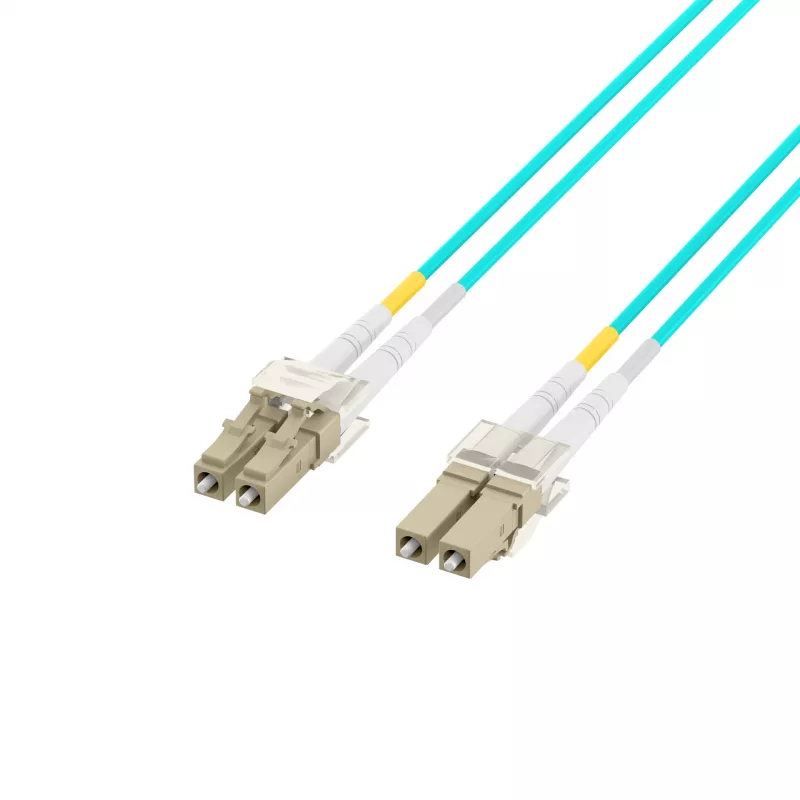

EFB Elektronik Jumper duplex LC-LC 50/125µm OM3 LSZH aqua 2.0mm 35m

The EFB Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 35 meters, this OM3 multimode cable features LC to LC duplex connectors, a 50/125µm core/cladding, and a low smoke zero halogen (LSZH) jacket in aqua color. Ideal for data centers, enterprise networks, and telecommunications, it ensures minimal signal loss and high bandwidth.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it safe for indoor installations. Its 2.0mm diameter provides flexibility while maintaining durability.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunication systems
• High-speed fiber optic connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connector Type: LC Duplex to LC Duplex
• Core/Cladding: 50/125 µm
• Length: 35 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Diameter: 2.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Attenuation at 850nm: ≤ 3.5 dB/km
• Attenuation at 1300nm: ≤ 1.5 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC interfaces and supports 10 Gbps Ethernet applications.
