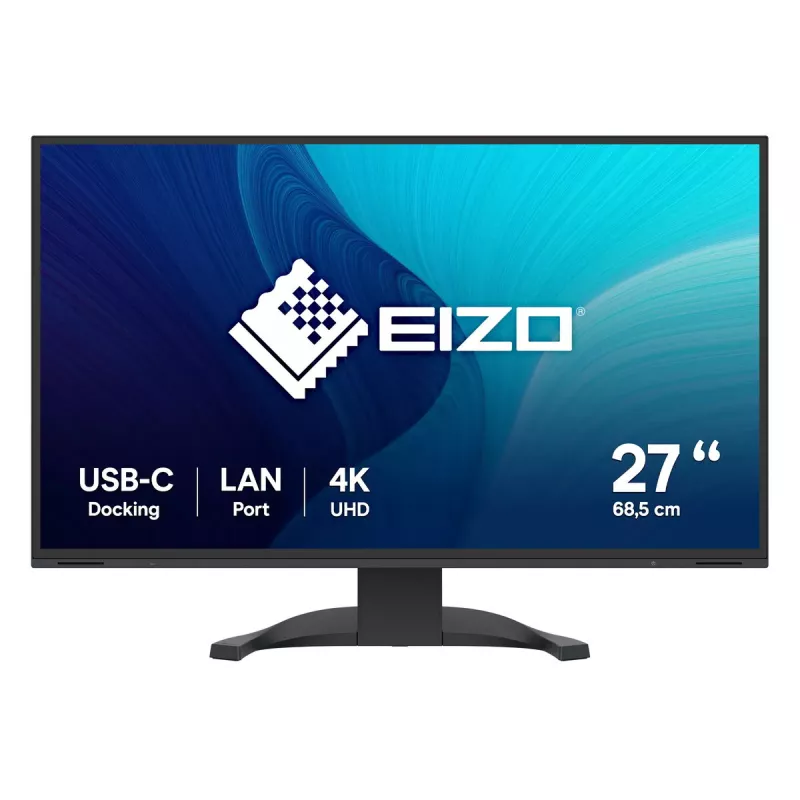

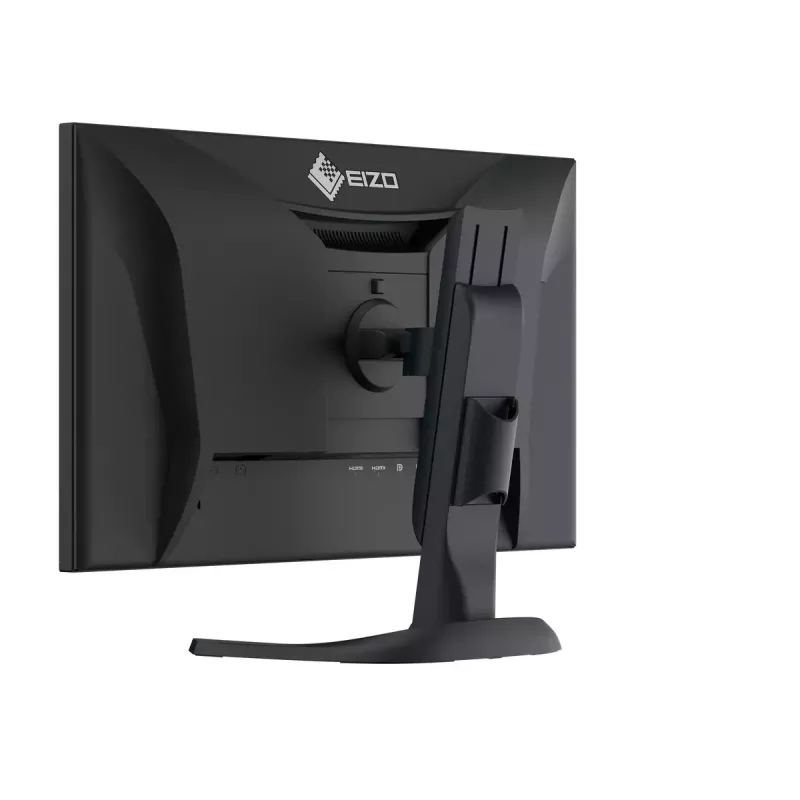

EIZO FlexScan EV2740X-BK Monitor de computador 68,6 cm (27") 3840 x 2160 pixels 4K Ultra HD LCD preto

The EIZO FlexScan EV2740X-BK is a 27-inch 4K Ultra HD (3840 x 2160) LCD monitor designed for professional office and CAD use. It offers high pixel density (approximately 163 dpi) for crisp graphics and readable text, an IPS panel with wide 178° viewing angles, built-in speakers and a USB hub. The monitor supports USB-C docking with up to 94 W Power Delivery, allowing a single cable connection for video, audio, USB data, network and notebook charging. The case is available in black and the monitor supports VESA mounting and height adjustment.

Advantages

The EV2740X-BK combines 4K resolution with USB-C docking and 94 W Power Delivery, simplifying connections for notebook and tablet users. Its 163 dpi display quality ensures detailed image and text rendering, while multiple inputs (two HDMI, one DisplayPort and one USB-C) and a built-in USB hub add connectivity. Dual USB upstream ports enable switching one keyboard and mouse between two connected computers, and Picture-by-Picture mode can show two sources simultaneously. The IPS panel and 178° viewing angles provide consistent color and contrast across wide viewing positions.

Suitable for

• Professional office work and productivity tasks
• CAD and technical drawing where high resolution and detail matter
• Home office setups with laptops or tablets using USB-C docking
• Multi-system workstations that require keyboard/mouse switching or Picture-by-Picture

Key specifications

• Display diagonal: 27"
• Resolution: 3840 x 2160 (4K Ultra HD)
• Panel type: IPS; Aspect ratio: 16:9
• Pixel pitch: 0.155 x 0.155 mm; Pixel density: approx. 163 dpi
• Response time: 5 ms; Contrast ratio (typical): 2000:1
• Brightness (typical): 350 cd/m²
• Inputs: 2 × HDMI, 1 × DisplayPort, 1 × USB-C (with up to 94 W Power Delivery)
• USB: Built-in hub, 1 USB-C downstream port, 2 USB upstream ports

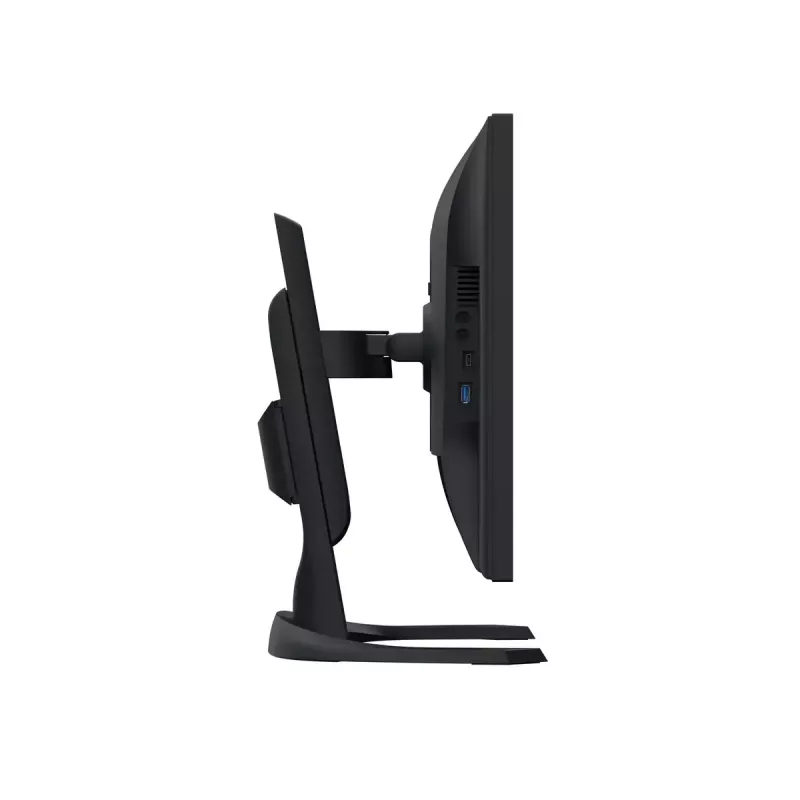

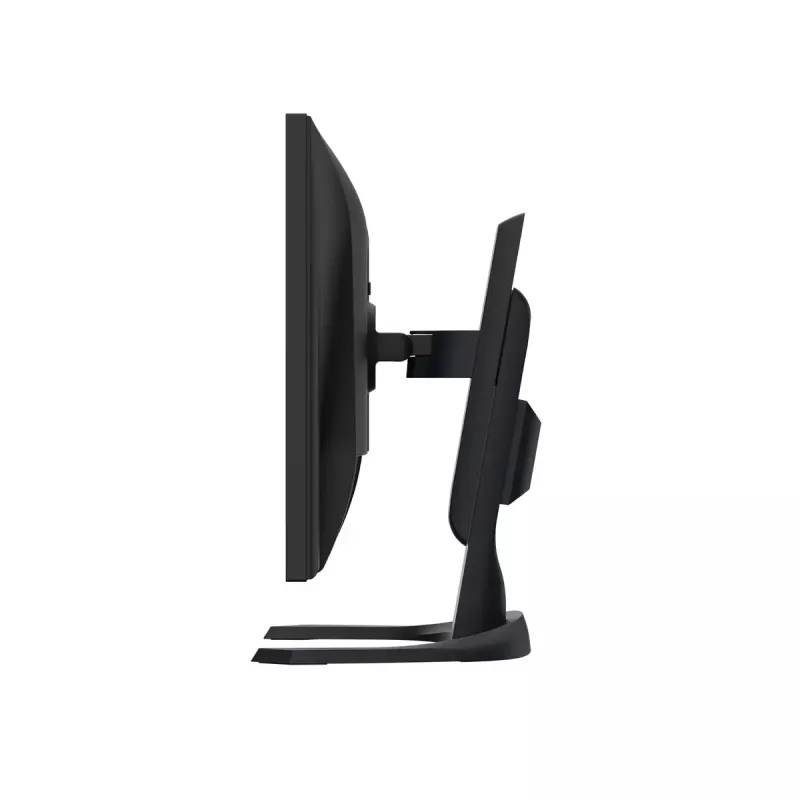

• Built-in speakers; VESA mounting supported; Height adjustable
• Energy efficiency (SDR): Class D; Energy consumption (SDR): 18 kWh/1000 h
• Color: Black; MPN: EV2740X-BK; EAN: 4995047065180

How to use

Connect your laptop or tablet to the monitor using the USB-C port to transfer video, audio, USB data and network while providing up to 94 W charging power. Alternatively, connect desktop PCs or additional devices via HDMI or DisplayPort. Use the built-in USB hub and the two upstream ports to share a keyboard and mouse between two computers. If needed, enable Picture-by-Picture mode to view two input sources side by side. Adjust height and position for ergonomic viewing and use the on-screen controls to select input sources and display settings.

Recommendations

For best image clarity and accurate detail in CAD or design work, set your source device to the monitor’s native 3840 × 2160 resolution and ensure scaling is configured appropriately in your operating system. When using USB-C docking, verify that your cable and host device support 94 W Power Delivery to enable laptop charging at full power.
