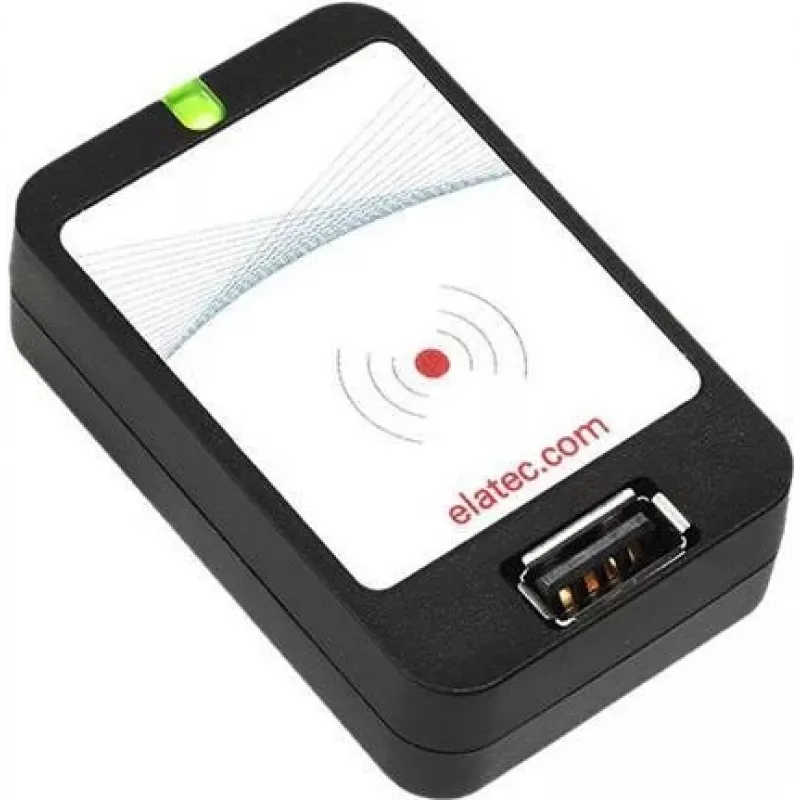

ELATEC TWN4 Leitor frontal USB-P LEGIC

The ELATEC TWN4 USB Front Reader-P LEGIC is a multi-technology RFID reader engineered for seamless integration into access control, time & attendance, and secure identification systems. Its standout capability is the simultaneous support for both 125 kHz low-frequency and 13.56 MHz high-frequency credentials, including LEGIC Prime and advant, ISO14443A/B, ISO15693, and NFC tags, making it a universal solution for mixed card environments.

Advantages

With a panel-mount design and front-side IP54 protection, the reader is built for durability in demanding indoor applications. The integrated multi-color LED and buzzer provide clear user feedback, while USB 2.0 connectivity with HID, CDC, and keyboard emulation modes ensures effortless integration with existing infrastructure—no additional drivers required. Field-upgradeable firmware and a comprehensive SDK allow for future-proof customization and expansion.

Suitable for

• Access control systems in offices, industrial facilities, and educational institutions
• Time & attendance terminals requiring multi-standard card reading
• Secure printing and PC logon applications
• Integration into kiosks, vending machines, and self-service solutions
• Custom RFID projects leveraging the ELATEC SDK

Key specifications

• Supported frequencies: 125 kHz (LF) and 13.56 MHz (HF)
• HF transponders: LEGIC Prime, LEGIC advant, ISO14443A/B (Mifare Classic, DESFire, Ultralight, NTAG), ISO15693, FeliCa, NFC Forum Tag Types 1-5
• LF transponders: EM4100, EM4102, EM4200, HID Prox, Indala, T5577
• Interface: USB 2.0 (HID, CDC, Keyboard Emulation)
• Power supply: 5V DC via USB
• Operating temperature: -25 °C to +80 °C
• Storage temperature: -40 °C to +85 °C
• Relative humidity: 5% to 95% non-condensing
• Protection class: IP54 (front side)
• Housing material: Polycarbonate (PC), black
• Certifications: CE, FCC, IC, RCM, RoHS, REACH

Recommendations

For system integrators and developers seeking a versatile, future-proof RFID reader, the ELATEC TWN4 USB Front Reader-P LEGIC delivers unmatched compatibility and reliability. Pair it with the ELATEC SDK to tailor functionality to your exact workflow, and take advantage of the panel-mount design for a clean, professional installation.
