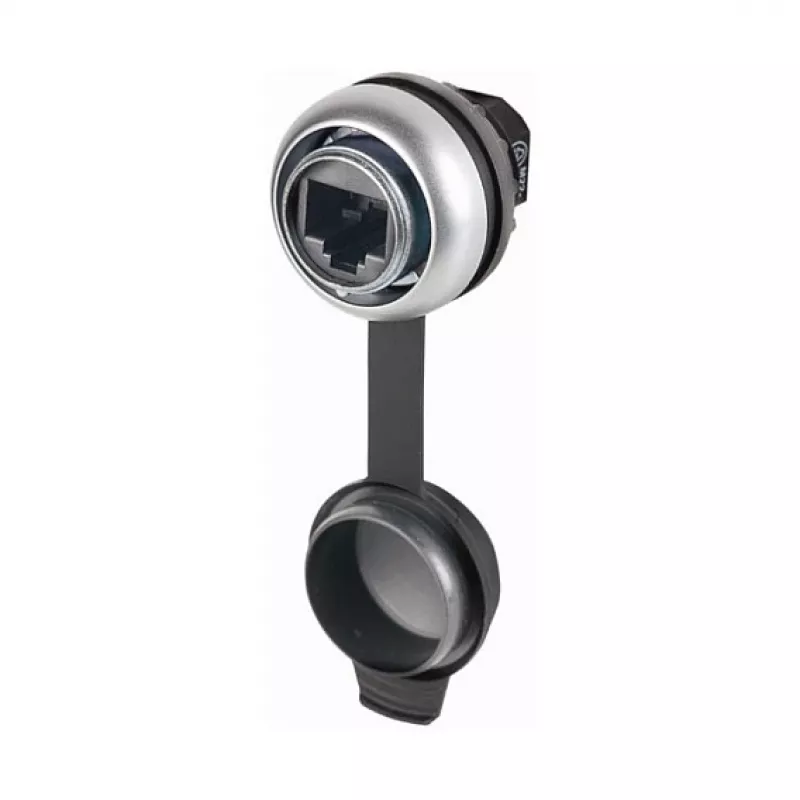

Elemento frontal Eaton M22-RJ45-SA + tomada de montagem RJ45, Preto/Prata, 107413

Industrial control panels often require Ethernet connectivity at the panel surface while maintaining protection against dust and moisture. The Eaton M22-RJ45-SA front element provides a rugged, sealed RJ45 pass-through connection point that mounts directly into a standard 22.5mm panel cutout. With an IP65-rated front face, it keeps your enclosure safe while allowing quick Ethernet patching from the outside.

Who is it for

Automation engineers, panel builders, and maintenance technicians working with control cabinets, industrial PCs, and networked machinery in demanding production environments. Ideal for terminating Cat5e Ethernet connections at the panel surface without opening the enclosure.

Main features

• RJ45 female-to-female pass-through coupler for simple patching
• IP65 protection on the front side, IP20 on the rear
• Compatible with Cat5e (Category 5e) cabling
• Designed for 22.5mm mounting holes
• Robust plastic bezel in black with silver accent
• Operating range from -25°C to +70°C
• Fits the Eaton M22 modular range

Specifications

• Brand: Eaton
• Model: M22-RJ45-SA
• MPN: 107413
• EAN: 4015081071517
• Product Type: RJ45 Socket Front Element
• Connector: RJ45 (8P8C)
• Number of Ports: 1
• Connector Front: RJ45 Female
• Connector Rear: RJ45 Female
• Protection Rating: IP65 (front), IP20 (rear)
• Operating Temperature: -25°C to +70°C
• Material: Plastic
• Colour: Black
• Mounting Type: Panel Mount
• Mounting Diameter: 22.5 mm
• Ethernet Category: Cat.5e
• Function: Pass-through coupler
• Standards: IEC/EN 60947
• Application: Industrial, Automation, Control Panels

Tips

For a complete installation, pair this front element with a compatible RJ45 patch cable and ensure the panel cutout is exactly 22.5mm. The IP65 rating applies only when properly mounted and sealed; the rear side is IP20 and should be protected inside the enclosure.
