Monitor Elo Touch Solutions 1590L 15 polegadas LCD ecrã tátil 1024 x 768

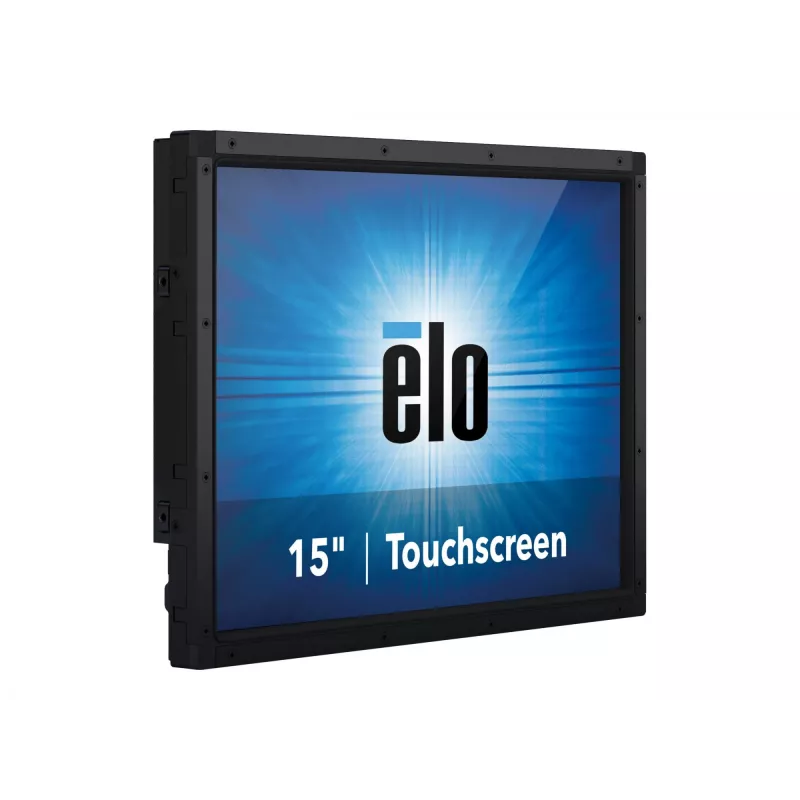

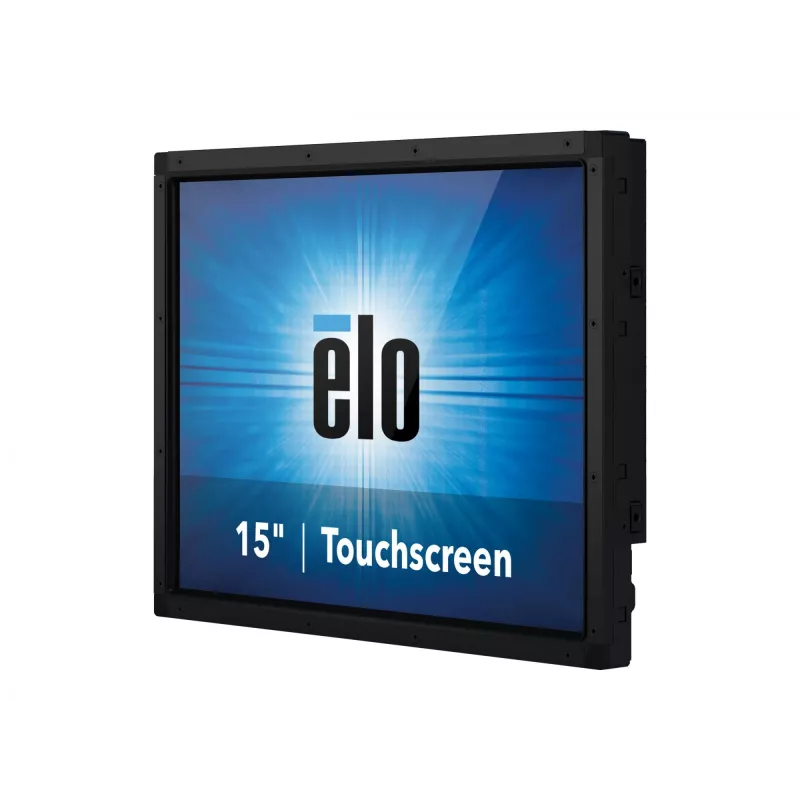

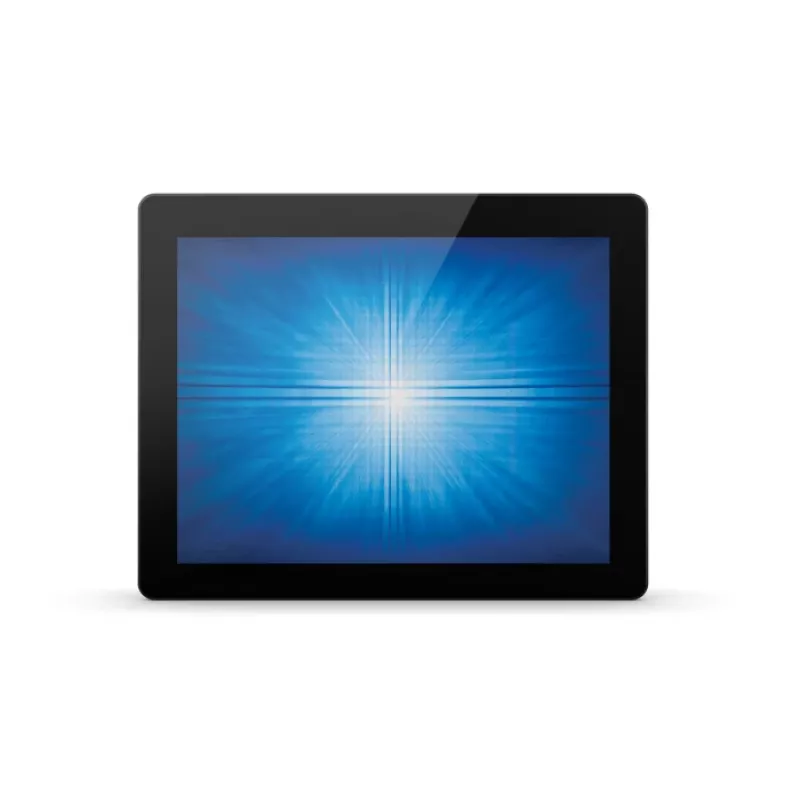

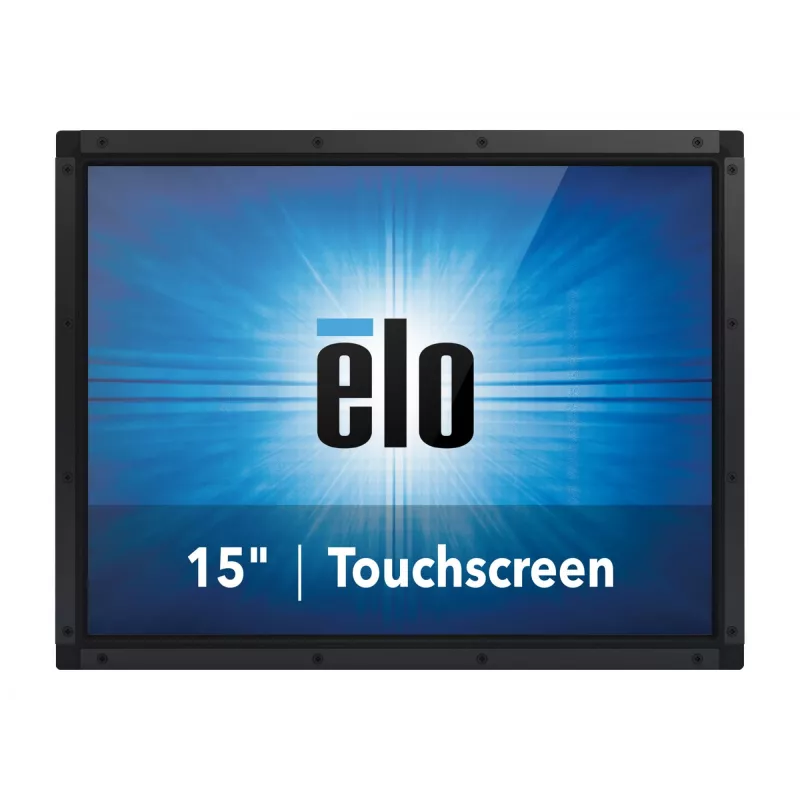

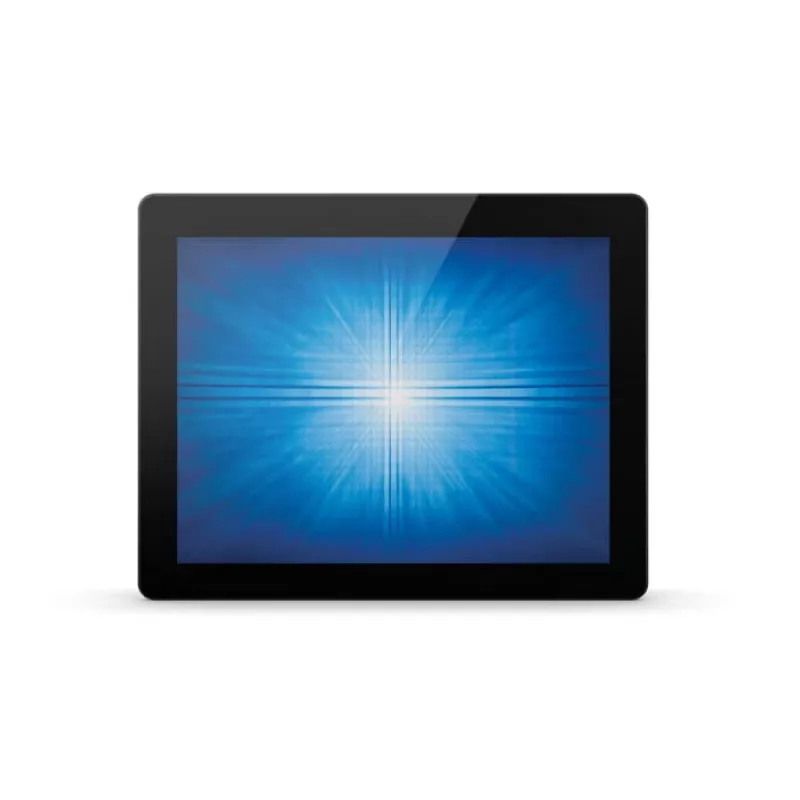

The Elo 1590L is a 15-inch open-frame LCD touchscreen with a 1024 x 768 resolution and a slim, compact design enabled by an energy-saving LED backlight. The unit offers stable, drift-free touch operation with high image clarity and light transmission, making it suitable for kiosks, casino and amusement terminals, retail self-service stations, and industrial automation. The display is designed for integration and long-term availability, and is available in multiple touch technologies to suit different environments.

Advantages

The monitor uses an efficient LED backlight that reduces power consumption and heat generation while maintaining a brightness of 240 cd/m² and a typical contrast ratio of 800:1. Its touchscreen is sealed against dirt, dust and liquids and Projected Capacitive (PCAP) variants can achieve an IP65 front rating. Multiple touch options are offered, including multi-touch TouchPro™ PCAP (2GS) with up to 10-touch capability and two-touch thru-glass support, as well as single-touch technologies such as AccuTouch® five-wire resistive, IntelliTouch® SAW and SecureTouch® anti-vandal SAW. The product is commercial-grade, backed by a three-year standard warranty and rigorous reliability testing.

Suitable for

• Kiosks and self-service terminals
• Casino and amusement machines
• Retail point-of-sale and interactive displays
• Industrial automation and control panels

Key specifications

• Display diagonal: 15"
• Resolution: 1024 x 768 (4:3)
• Display technology: LCD with LED backlight
• Brightness: 240 cd/m²
• Response time: 16 ms
• Contrast ratio (typical): 800:1
• Screen shape: Flat

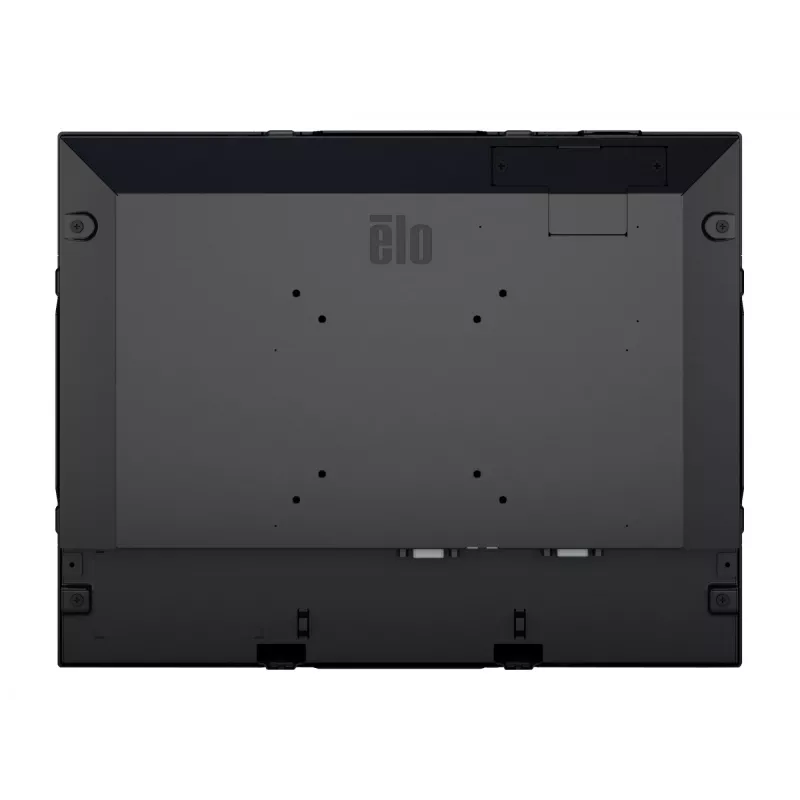

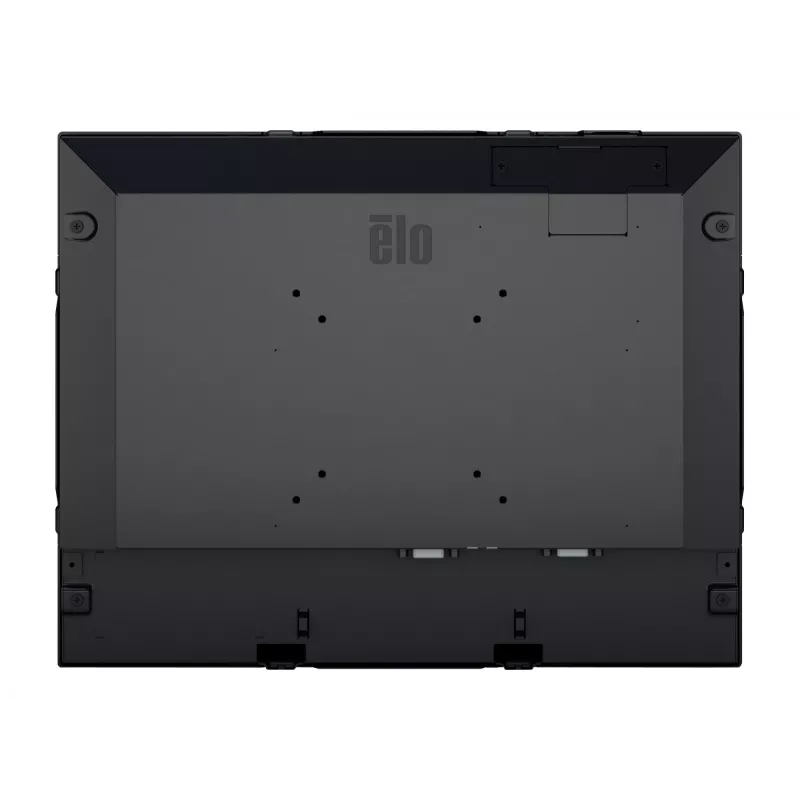

• VESA mounting: Yes
• Colour: Black
• Front ingress protection (PCAP option): IP65
• Warranty: 3 years (standard)

How to use

Install the Elo 1590L into the kiosk or enclosure following the VESA mounting provisions and ensure the front bezel and touch surface are correctly sealed if using a PCAP unit to maintain the IP65 rating. Connect the display to the host system using the supplied video and touch interface cables and install Elo drivers and software for optimal touch performance. Configure touch settings and calibrate if required through the driver utility to ensure accurate, drift-free operation.

Recommendations

For reliable long-term performance, avoid exposing the touchscreen to prolonged direct sunlight and follow Elo's installation and driver update guidance. Choose the appropriate touch technology for the environment: TouchPro™ PCAP for multi-touch and thru-glass glove support, or resistive/SAW options where single-touch or anti-vandal protection is needed.
