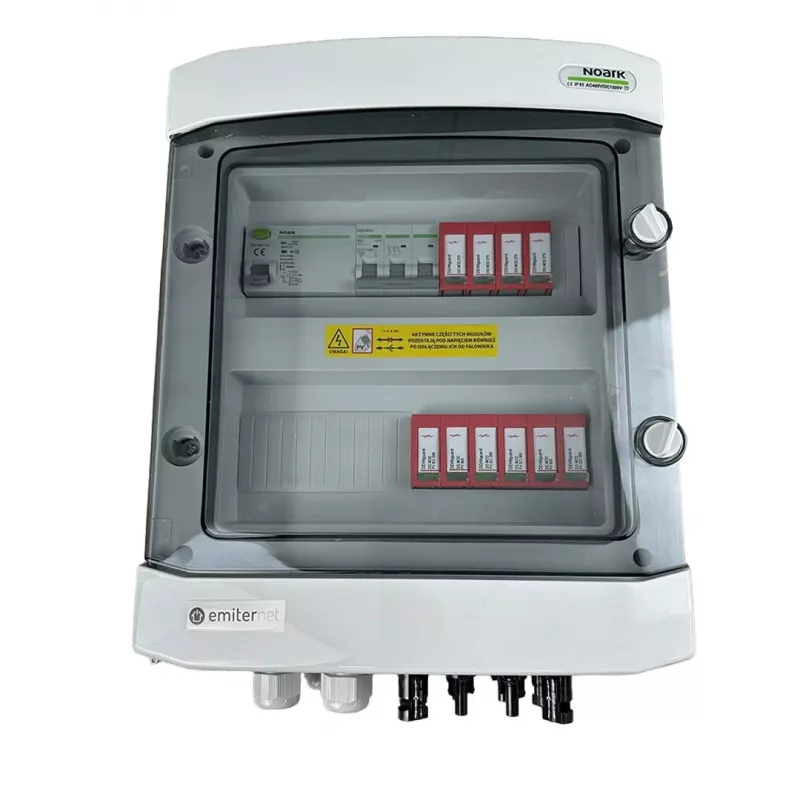

EMITER Quadro elétrico ligado DCAC hermético IP65 EMITTER com para-raios DC Dehn 1000V Tipo 2, 2 x string PV, 2 x MPPT // e AC Dehn Tipo 2, 25A trifásico, DDR 40A/300mA

The EMITER Switchgear Attached DCAC Hermetic IP65 EMITTER is a comprehensive PV distribution board designed for solar photovoltaic systems. It integrates DC and AC protection in a single sealed enclosure, featuring Dehn surge arresters and a residual current device for maximum safety and reliability.

Advantages

This all-in-one solution simplifies installation by combining DC and AC components in a hermetic IP65 enclosure, ensuring protection against dust and water ingress. The integrated Dehn Type 2 surge arresters on both DC and AC sides safeguard your PV system from transient overvoltages, while the 40A/300mA RCD provides additional protection against earth faults. With support for 2 PV strings and 2 MPPTs, it is ideal for residential and small commercial solar installations.

Suitable for

• Photovoltaic (solar PV) systems requiring DC and AC distribution in a single enclosure
• Outdoor or harsh environment installations needing IP65 protection
• Systems requiring Type 2 surge protection on both DC and AC sides
• 3-phase AC systems with up to 25A nominal current

Key specifications

• Product Type: PV DC/AC Distribution Board
• Enclosure IP Rating: IP65 (hermetic sealed)
• DC System Voltage (Max): 1000 V
• Number of DC Inputs (PV Strings): 2
• Number of MPPTs Supported: 2
• DC Surge Protection Device (SPD): Yes, Type 2, Dehn
• AC Phase Configuration: 3-Phase
• AC Nominal Current: 25 A
• AC Surge Protection Device (SPD): Yes, Type 2, Dehn
• Residual Current Device (RCD): Yes, 40 A / 300 mA
• Application: Photovoltaic (Solar PV) Systems

Recommendations

For optimal performance, ensure that the PV system design matches the specifications of this distribution board. Professional installation by a qualified electrician is recommended. Always follow local electrical codes and manufacturer guidelines.
