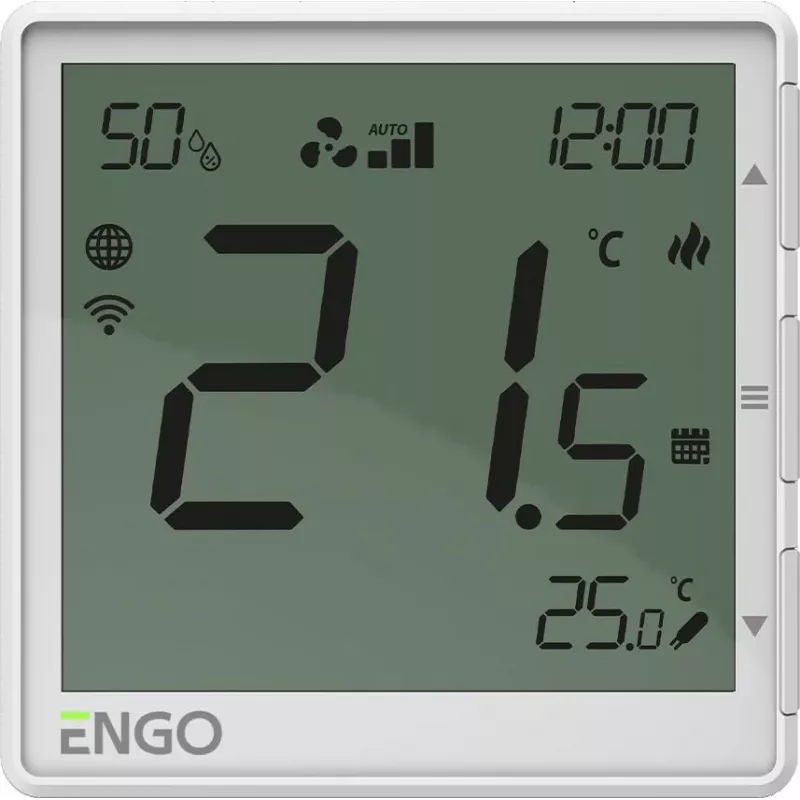

ENGO Controls EFAN-230W Termostato para fan coil, 230V

The ENGO Controls EFAN-230W is a reliable fan coil thermostat designed for 230V AC systems. It provides precise temperature control for heating, cooling, and ventilation applications in residential and commercial environments. Featuring an LCD backlit display and intuitive controls, this thermostat offers three fan speeds (Low, Medium, High, Auto) and on/off valve control. Its wall-mounted design fits standard electrical boxes, making installation straightforward.

Advantages

This thermostat combines simplicity with functionality. The large LCD display with backlight ensures easy reading even in low light. The key lock function prevents unauthorized adjustments, ideal for public spaces. Frost protection safeguards against freezing temperatures, while the memory function retains settings during power outages. With a temperature accuracy of ±0.5°C, it maintains comfortable conditions efficiently.

Suitable for

• Fan coil units in HVAC systems
• Hotels, offices, and residential buildings
• Heating and cooling zones requiring individual control

Key specifications

• Power Supply: 230V AC, 50Hz
• Max Load: 3A
• Control: On/Off valve, 3-speed fan (Low, Medium, High, Auto)
• Temperature Set Range: 5°C - 35°C
• Temperature Display Range: 0°C - 50°C
• Accuracy: ±0.5°C
• Display: LCD with backlight
• Operating Modes: Heating, Cooling, Ventilation (Fan Only)
• Sensor: Internal NTC
• Mounting: Wall-mounted (standard electrical box)
• Protection Rating: IP20
• Frost Protection: Yes
• Key Lock Function: Yes
• Outputs: Relay for fan and valve
• Operating Temperature: 0°C to 45°C
• Humidity: 5-95% RH (non-condensing)

Recommendations

For optimal performance, ensure the thermostat is installed by a qualified electrician. Pair with compatible fan coil units for seamless integration. The unit is not suitable for outdoor use or high-humidity areas beyond specified limits.
