Enrolador de mangueira Einhell TC-PH 150 15 m de comprimento

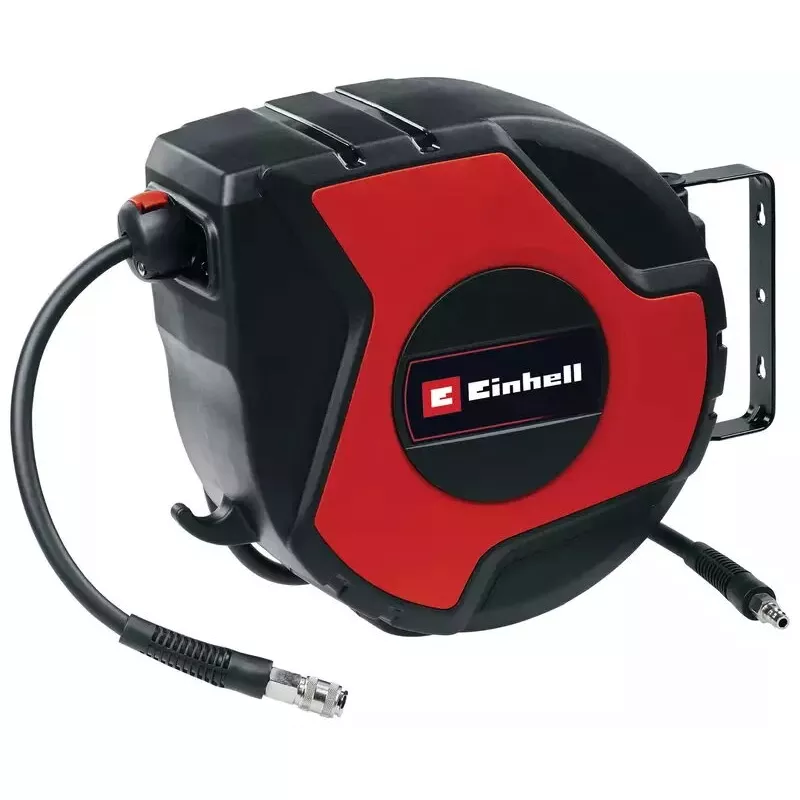

The Einhell TC-PH 150 compressed air hose reel stores and dispenses a 15 m working hose with an integrated 1.5 m connection hose (each with 9 mm inner diameter). Both hoses are made of a PVC-rubber compound that keeps them flexible and resistant to kinking. The reel supports a maximum working pressure of 16 bar and includes a 170° swivel wall mount with mounting accessories for flexible installation.

Advantages

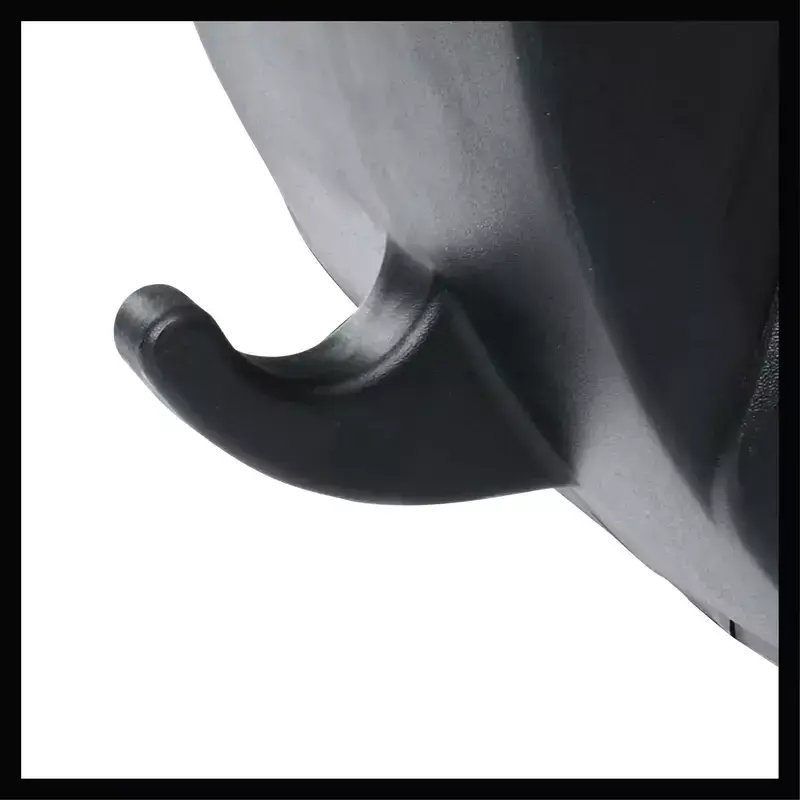

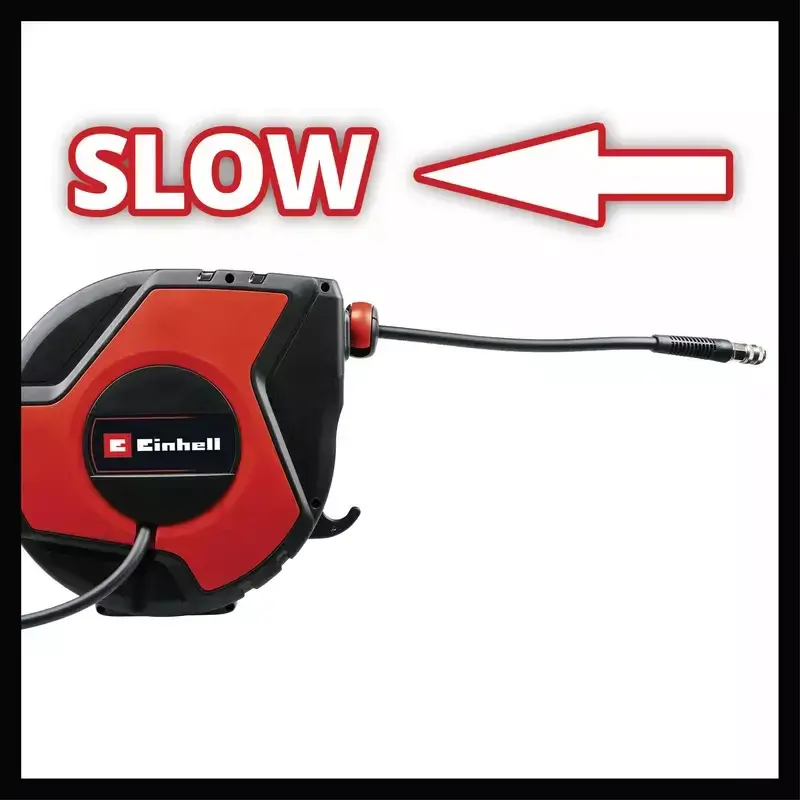

The automatic slow retraction mechanism ensures the hose is rolled up safely and reduces the risk of accidents by avoiding loose hoses. Layer-wound winding prevents the hose from jamming during retraction, and the strain-relief during unwinding provides reliable, easy handling. A front hook on the housing allows convenient attachment and storage of a blow gun.

Suitable for

• Home workshop compressed-air tasks
• Garage use for inflating, blowing and pneumatic tools
• Small professional or hobby applications requiring a 15 m working radius

Key specifications

• Type: Compressed air hose reel (Einhell TC-PH 150)
• Hose lengths: 15 m reel hose + 1.5 m connection hose
• Inner diameter: 9 mm (both hoses)
• Material: PVC-rubber compound
• Maximum working pressure: 16 bar
• Swivel wall mount: 170° (mounting accessories included)

How to use

Mount the reel on a suitable wall using the supplied mounting accessories and align the swivel bracket for the desired working area. Connect the 1.5 m connection hose to your compressor and attach the 15 m hose to the pneumatic tool or blow gun. Pull out the required hose length; the strain-relief feature helps to unwind smoothly. After use, allow the automatic slow retraction to wind the hose back onto the reel, ensuring it lays in layers to avoid jamming.

Recommendations

Check hose and connections regularly for wear or damage and do not exceed the maximum working pressure of 16 bar. Store the reel in a dry location and avoid sharp bends or exposure to aggressive chemicals to preserve the PVC-rubber hoses.
