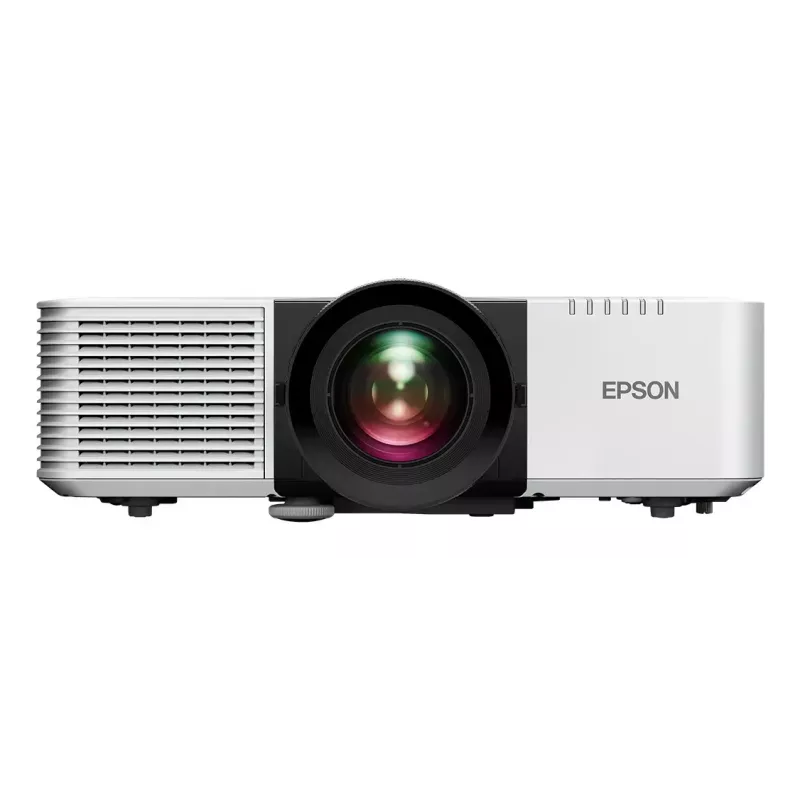

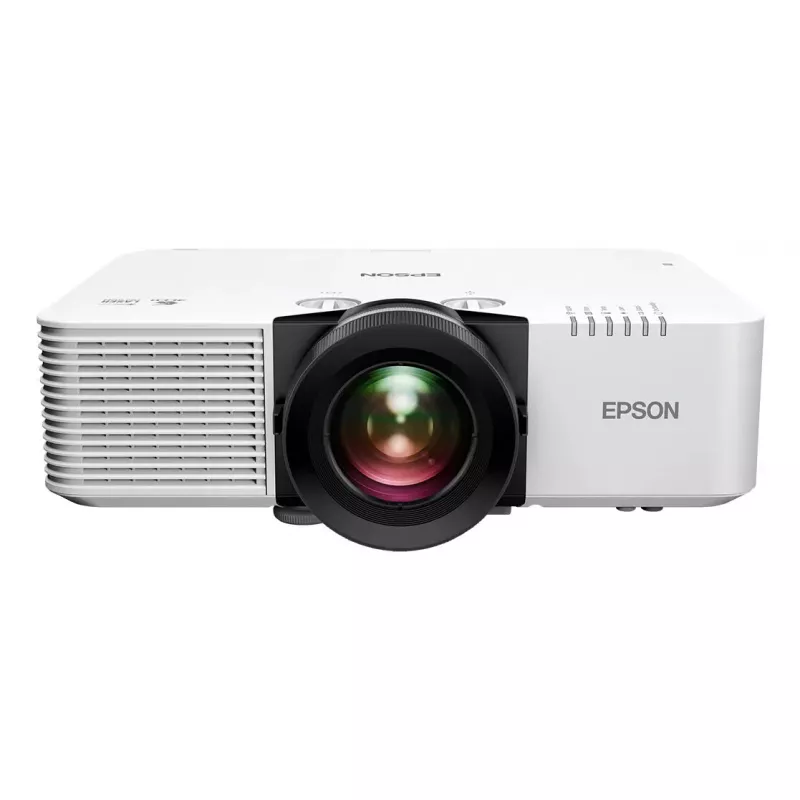

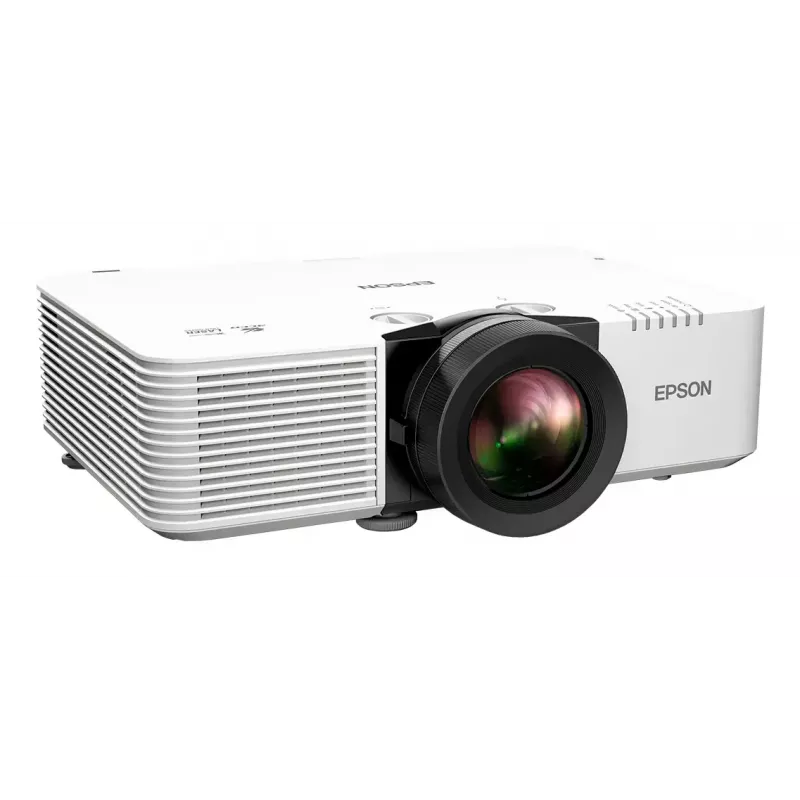

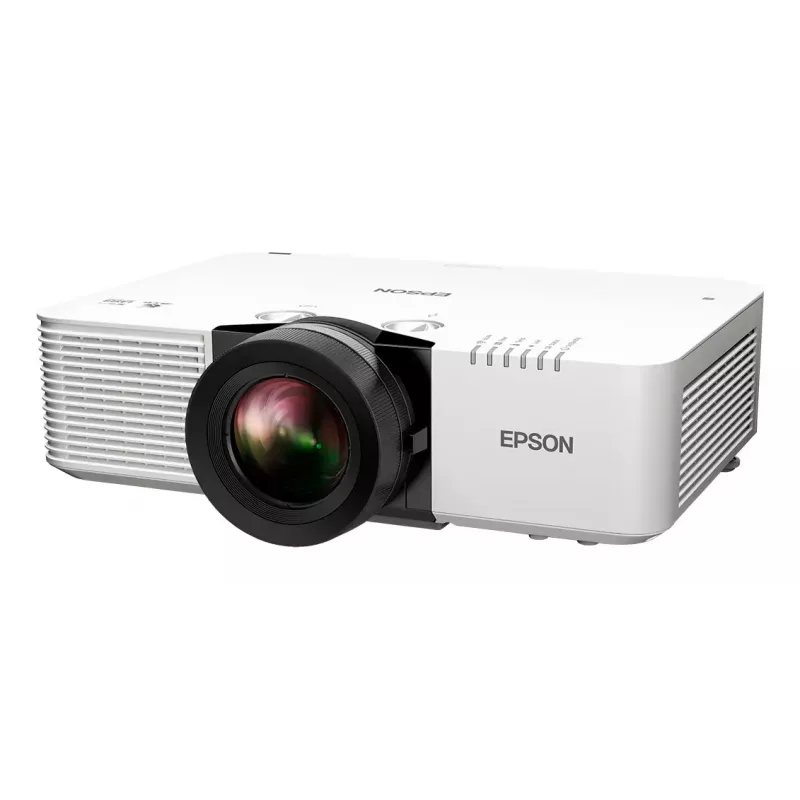

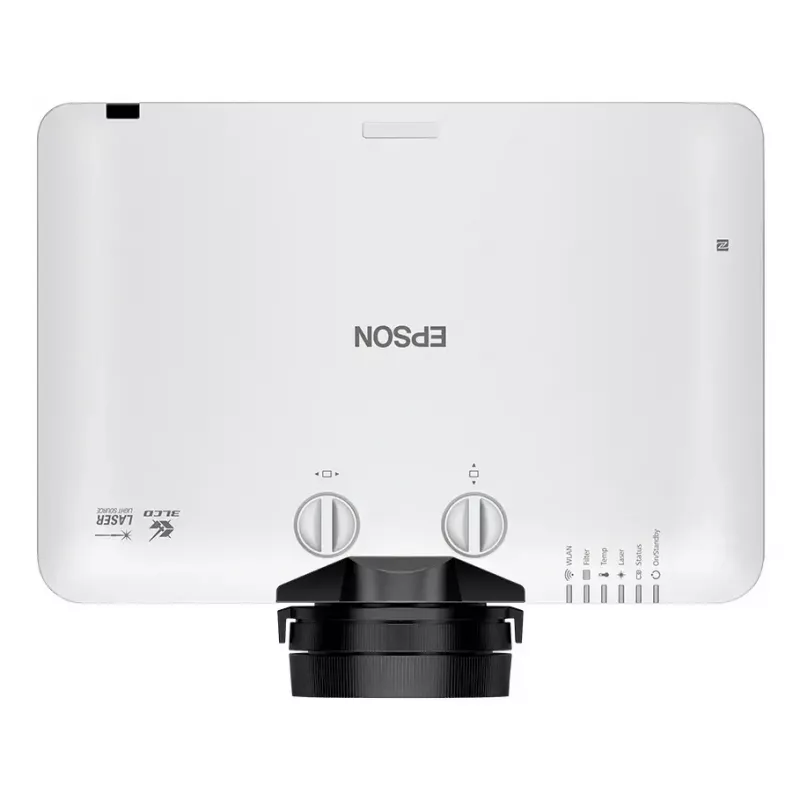

Epson EB-L690SE Projetor de curta distância 6000 ANSI Lumen 3LCD WUXGA (1920x1200) Branco

The Epson EB-L690SE short-throw projector delivers 6,000 ANSI lumens of brightness in WUXGA (1920×1200) resolution with 4K Enhancement and HDR support. Designed for compact spaces and professional installations, it uses 3LCD projection and a laser light source for long operational life and low maintenance. The projector includes lens shift, 1.4x optical zoom, corner focus and supports display sizes up to 500 inches, with flexible connectivity options such as HDBaseT, LAN, HDMI and optional wireless modules.

Advantages

The EB-L690SE combines high brightness and WUXGA clarity with short-throw optics (0.5–0.7:1) to produce large, shadow-free images in confined rooms. Its laser light engine offers extended runtime and reduced upkeep, while built-in lens shift, keystone and 360° projection simplify alignment. Professional installation features include edge blending, geometry correction and split-screen capability, plus optional camera-assisted calibration for faster setup. Built for durability, it comes in a compact white chassis and is backed by a manufacturer warranty.

Suitable for (tasks / use cases)

• Classroom and lecture halls with limited throw distance
• Corporate meeting rooms and presentation spaces
• Museums, galleries and immersive exhibits
• Multi-projector installations, edge blending and large-format displays
• Environments requiring centralised network management and monitoring

Key specifications

• Model: Epson EB-L690SE (MPN: V11HB36080, EAN: 8715946737904)
• Brightness: 6000 ANSI lumens
• Native resolution: WUXGA (1920×1200)
• Projection technology: 3LCD with laser light source
• Short-throw ratio: 0.5–0.7:1
• Optical zoom: 1.4×
• Screen size compatibility: approx. 2540–12700 mm (up to 500")
• Weight: 9.3 kg
• Colour: White

How to use

Install the projector at the appropriate short-throw distance so the image fills the intended screen size; use the built-in lens shift, corner focus and keystone controls to position the image precisely. Connect source devices via HDMI, HDBaseT or LAN, or enable optional wireless connectivity. For PC-free playback, use the USB-A port. Use the Epson Projector Professional Tool or optional ELPEC01 camera for geometry correction and calibration when performing multi-projector setups. Follow the user manual for power-up, firmware updates and safety instructions.

Recommendations

For reliable long-term operation, run the projector in Eco mode where possible to extend laser life and reduce power consumption. Use centralised management tools (Epson Projector Config Tool, EPMC or Crestron XiO Cloud) for fleet monitoring and scheduling. Ensure sufficient ventilation around the unit and perform periodic checks of mounting hardware and network settings during multi-projector installations.
