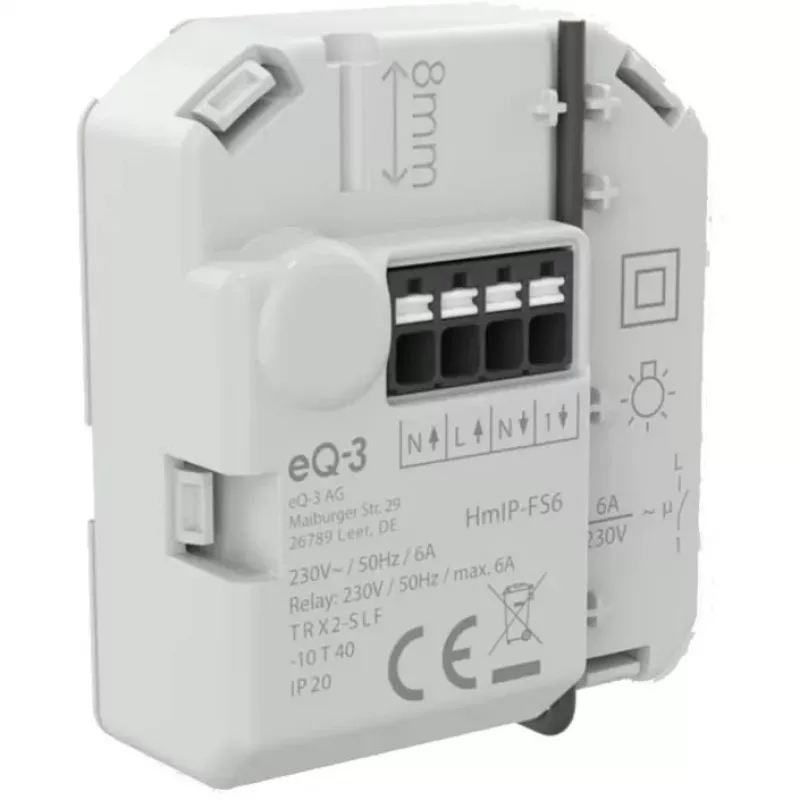

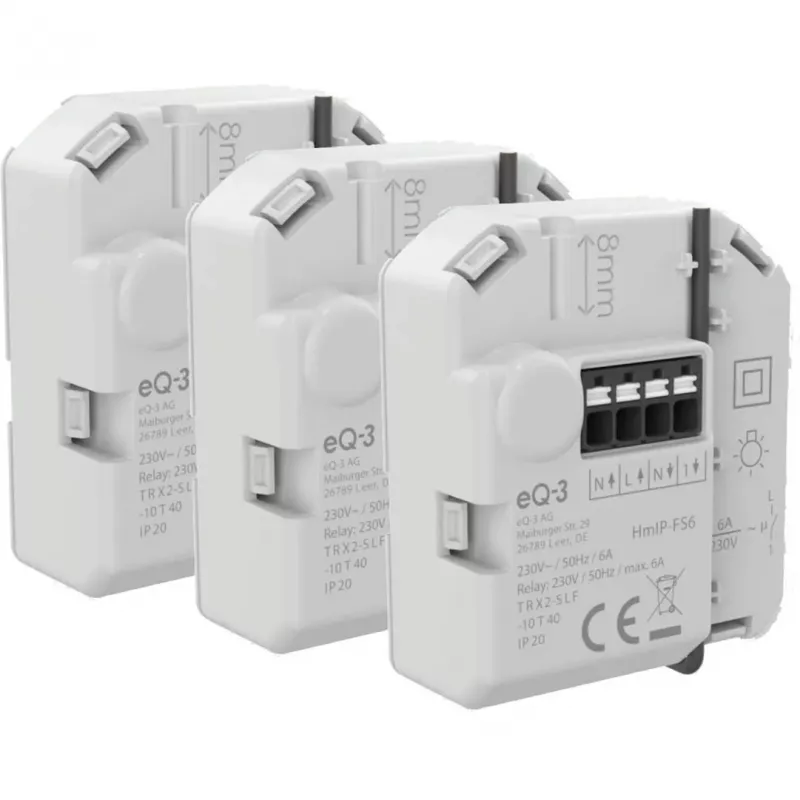

Atuador de comutação encastrado Homematic IP 6 A (pack de 3)

Managing lighting and small appliances in existing installations often means dealing with bulky external modules or complex wiring. The Homematic IP Flush-Mounted Switch Actuator solves this by integrating directly into standard flush-mounted boxes, providing wireless control for a single load up to 6 A. This 3-pack lets you automate three separate circuits, making it ideal for retrofitting smart lighting in multiple rooms without additional visible hardware.

Who is it for

Homeowners and renters who want to add smart control to existing light switches, lamps, or small motors without replacing the entire electrical installation. It suits DIY enthusiasts comfortable with basic wiring and professionals looking for a reliable, compact actuator for Homematic IP systems.

Main features

• Wireless switching via Homematic IP protocol (868 MHz, range up to 400 m free field)
• Flush-mounted design fits standard DIN 49073-1 boxes, keeping walls clean
• Handles resistive, inductive, and capacitive loads up to 6 A / 1380 W
• Overload and short-circuit protection for safe operation
• Low standby power consumption of only 0.2 W
• Compatible with Homematic IP Access Point or CCU3 for app control and automation

Specifications

• Product type: Wireless switch actuator
• Installation: Flush-mounted (Unterputz)
• Set contents: 3 actuators
• Max. switching current: 6 A
• Max. switching capacity (resistive): 1380 W
• Operating voltage: 230 V AC, 50 Hz
• Standby power: 0.2 W
• Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
• Radio range: up to 400 m free field
• Number of channels: 1
• Compatibility: Homematic IP Access Point, Homematic IP CCU3
• Protection class: IP20
• Ambient temperature: 0 to 35 °C
• Mounting: Standard flush-mounted boxes (e.g., DIN 49073-1)
• Load types: Resistive, inductive, capacitive (e.g., incandescent, halogen, LED, fluorescent lamps, motors)
• Overload protection: Yes
• Short-circuit protection: Yes
• Dimensions (per unit): 54 x 54 x 33 mm (W x H x D)
• Weight (per unit): 40 g

Tips

For best results, pair with a Homematic IP Access Point or CCU3 to enable remote control and automation via the app. Ensure installation is performed by a qualified electrician if you are not familiar with mains wiring.
