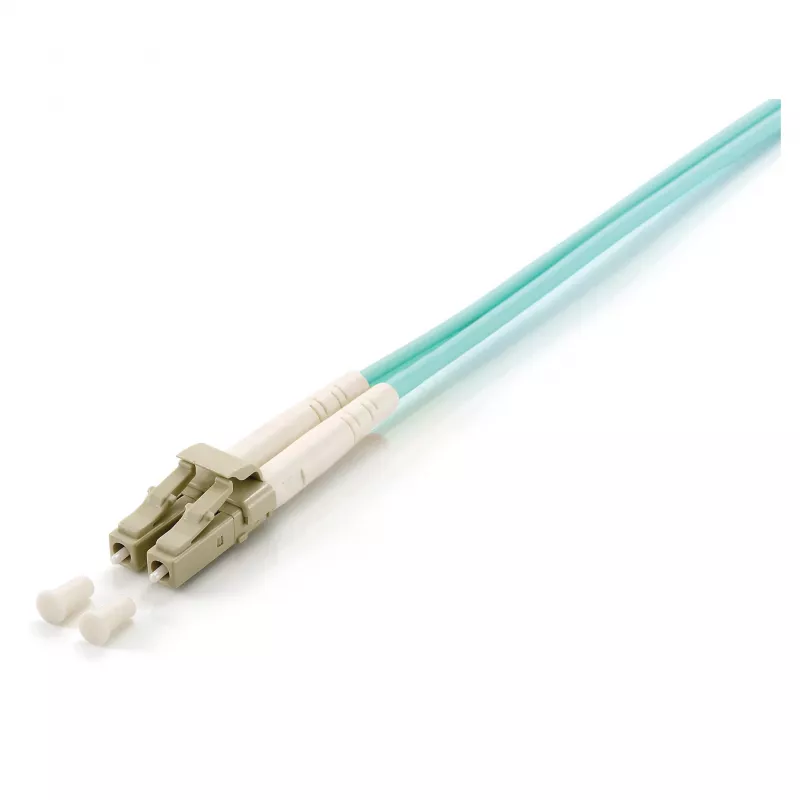

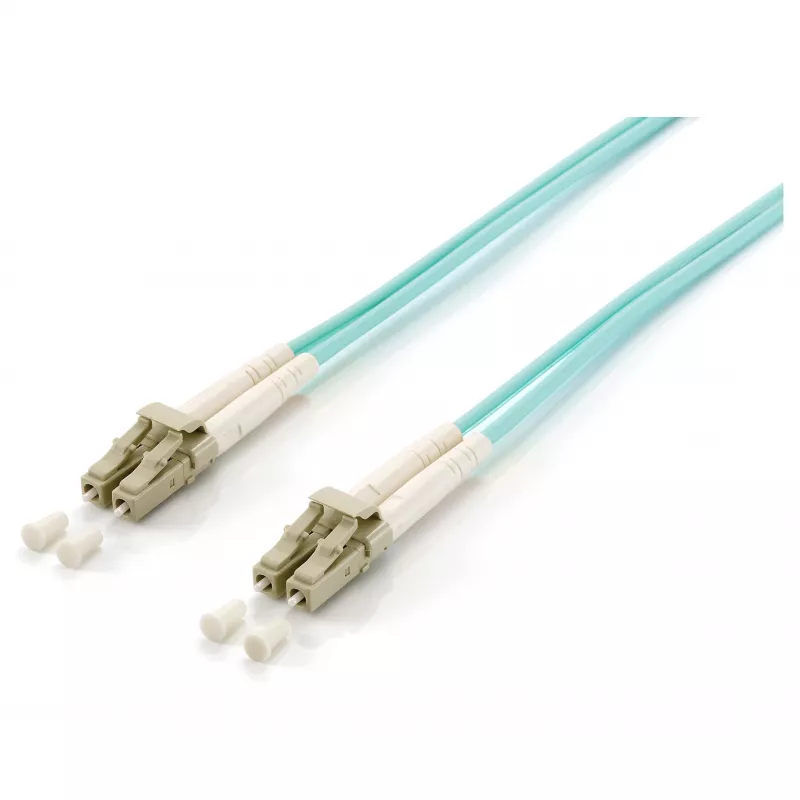

Equip Cabo de ligação LC-LC 7,5m Multimodo Duplex OM3 Turquesa

The Equip Patch Cable LC-LC 7.5m Multimode Duplex OM3 Turquoise is a high-performance fiber optic patch cable designed for reliable data transmission in network environments. With LC to LC connectors, multimode OM3 grade, and a length of 7.5 meters, this duplex cable supports 10 Gbps data rates, making it ideal for data centers, server rooms, and enterprise networks.

Advantages

This cable offers low insertion loss and high return loss, ensuring minimal signal degradation and stable connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety by reducing toxic fumes in case of fire. Its turquoise color allows for easy identification and organization within cable management systems.

Suitable for

• Data centers and server rooms requiring high-speed fiber connections
• Enterprise network infrastructure for backbone and horizontal cabling
• Telecommunications and broadcast applications

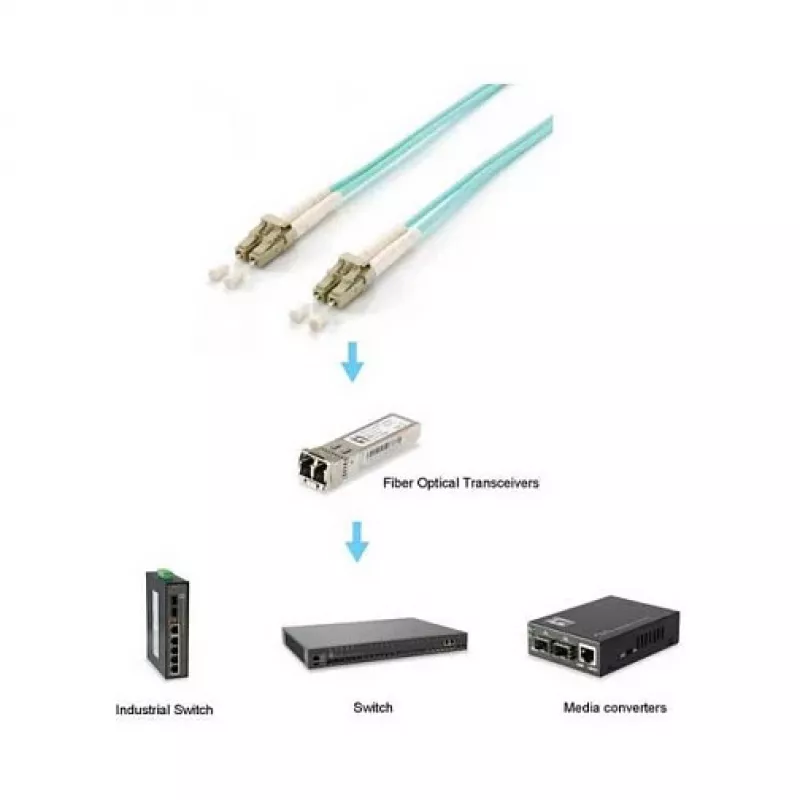

• Connecting switches, routers, and patch panels with LC interfaces

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type (End 1): LC
• Connector Type (End 2): LC
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Cable Length: 7.5 m
• Fiber Count: Duplex (2 Fibers)
• Jacket Color: Turquoise
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Maximum Data Rate: 10 Gbps
• Bandwidth (850nm): 1500 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Ferrule Material: Ceramic
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to 70°C
• Standards Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that the connectors are clean before installation. This cable is compatible with all standard LC duplex ports and is suitable for use in structured cabling systems. Pair with Equip fiber optic adapters and patch panels for a complete solution.
