Equip Patch Panel 16 portas Cat.5e não blindado, preto

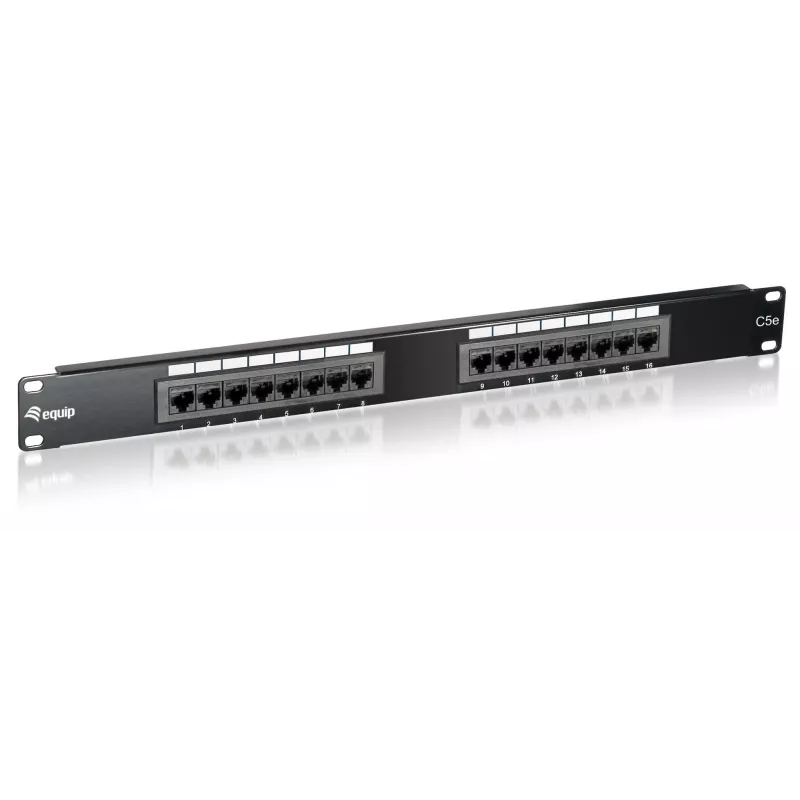

The equip® Patch Panel is a 19" 1U rack-mount network distribution unit designed for structured cabling environments. It provides 16 RJ45 ports with gold-plated contacts and supports unshielded Cat5e cabling. The panel integrates a cable management system for improved routing and strain relief, and each port is clearly numbered for easy identification.

Advantages

The 16-port design saves rack space while enabling orderly port allocation. Gold-plated contacts improve signal transmission and contact reliability. Built-in cable management and compatibility with both LSA and 110 termination standards facilitate clean installation and flexible use with common cabling tools. Its black 1U metal housing offers professional appearance and standard rack compatibility.

Suitable for

• Small to medium office network patching
• Server room or rack-mounted telecom cabinets
• Cat5e structured cabling terminations
• Connections using unshielded twisted-pair (UTP) patch cords

Key specifications

• Ports quantity: 16 × RJ45
• Category support: Cat5e (unshielded)
• Termination standards: LSA and 110 compatible
• Mounting size: 19" 1U rack
• Material / colour: Black metal housing
• Dimensions (W×H×D): 483 × 44 × 29 mm
• Weight: 0.51 kg
• Manufacturer: EQUIP, MPN 235316

How to use

Mount the patch panel in a standard 19" rack occupying 1U of space. Terminate incoming horizontal cabling to the rear IDC/LSA or 110 blocks according to the chosen standard, observing correct pair colour codes. Connect patch cords to the front RJ45 ports to link devices or network switches. Use the integrated cable management features to route and secure cables, ensuring strain relief and avoiding sharp bends.

Recommendations

For best performance, use Cat5e-rated UTP patch cords and maintain correct cable lengths and pair integrity. Label both ends of backbone and patch cables, and avoid over-tightening cable ties to prevent damage to conductors and connectors.
