Ernitec 0070-24175 monitor de vigilância monitor CCTV 190,5 cm (75 polegadas) 3840 x 2160 píxeis

The Ernitec 0070-24175 is a 75" CCTV monitor with a 3840 × 2160 (4K) TFT-LED panel. Designed for wall mounting, the monitor offers a 16:9 aspect ratio, 1.073 billion display colours and wide 178°/178° viewing angles. The unit supports NTSC, PAL and SECAM video formats and includes a built-in 6 W speaker. Typical power consumption is 140 W with an AC input range of 100–240 V.

Advantages

This 75-inch Ernitec monitor delivers high pixel density and a 3840 × 2160 resolution for detailed CCTV images. The TFT-LED backlight and 350 cd/m² brightness provide consistent image visibility in typical indoor environments, while the 3000:1 contrast ratio and 8 ms response time support clear motion rendering. Wall-mount compatibility (VESA) and a standard black finish make the display suitable for control rooms and monitoring installations.

Suitable for

• Security control rooms and monitoring stations
• Video surveillance playback and live feeds
• Public area monitoring where wall-mounted displays are required

Key specifications

• Screen size: 75"
• Active display area: 1605.3 mm × 933.75 mm
• Resolution: 3840 × 2160 (4K)
• Display mode: 16:9
• Panel type: TFT-LED with LED backlight
• Display colours: 1.073 billion
• Pixel pitch: 0.372 mm × 0.372 mm
• Brightness: 350 cd/m²
• Contrast ratio (typical): 3000:1
• Viewing angle: 178° horizontal / 178° vertical
• Response time: 8 ms
• Audio: 6 W speaker
• Power consumption (typical): 140 W; AC input: 100–240 V
• Colour: Black

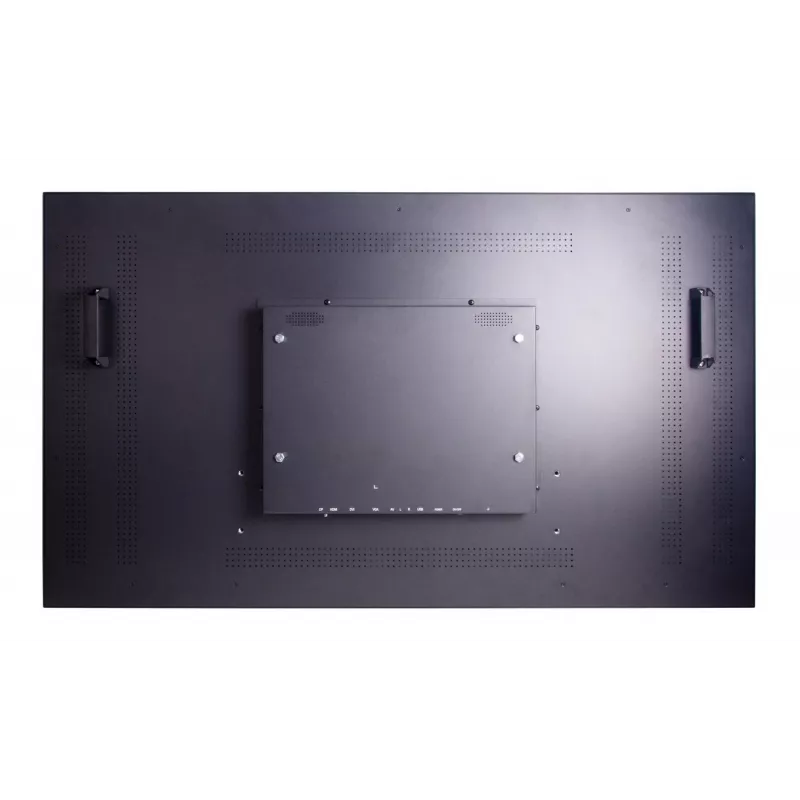

• VESA mounting: Yes

How to use

Mount the Ernitec 0070-24175 on a suitably rated wall bracket following the VESA mounting specifications. Connect video inputs from CCTV encoders or DVR/NVR outputs that support NTSC, PAL or SECAM formats. Adjust display settings (brightness, contrast, aspect ratio) via the on-screen menu to match ambient lighting and camera output. Use the built-in speaker for basic audio monitoring or connect external audio equipment if required.

Recommendations

Install the monitor in a controlled indoor environment to avoid direct sunlight and excessive dust. For continuous 24/7 surveillance use, ensure adequate ventilation and follow manufacturer guidelines for mounting and power connections.
