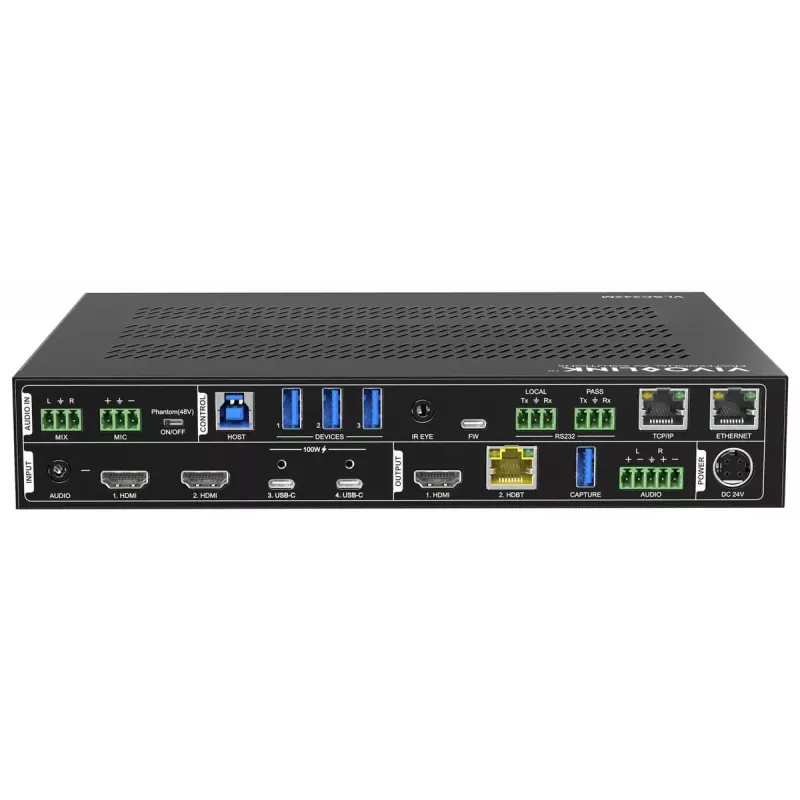

Escalador de vídeo Vivolink VLSC242M, caixa metálica, HDCP 1.4/2.2, AC 110–230V, 250×200×44 mm

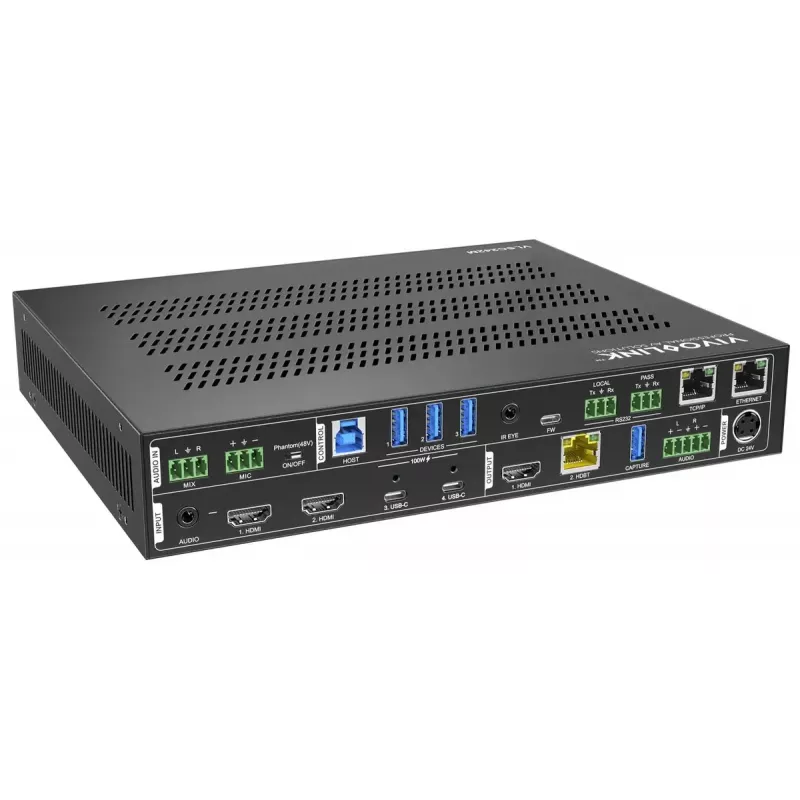

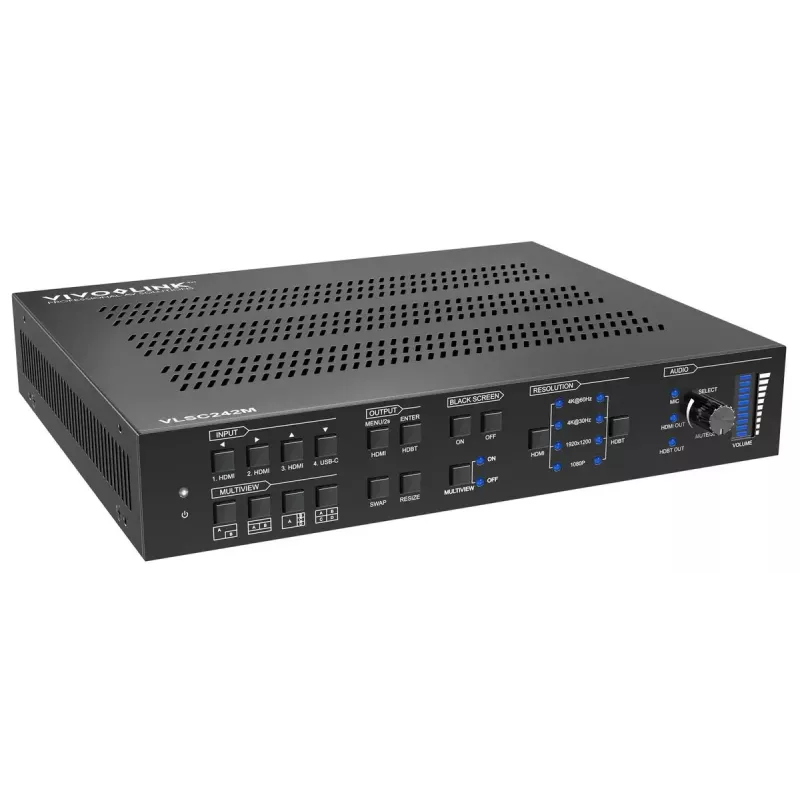

VLSC242M is a 4x2 seamless KVM switcher with Multiview and an HDBaseT receiver included. Built on HDBaseT 3.0, it supports up to 4K@60Hz 4:4:4 video and handles both HDMI and USB-C sources. The unit is housed in a metal enclosure and accepts AC 110–230V power.

Advantages

The switcher provides true seamless switching between four inputs (2x HDMI and 2x USB-C) and offers multiview output for simultaneous source monitoring. USB-C inputs support up to 100 W power delivery for connected hosts. The system supports HDMI2.0 with HDCP 2.2, USB 3.2 Gen1 video streaming for conferencing platforms, local and remote audio breakout, Ethernet pass-through and control via TCP/IP and RS232. An HDBaseT receiver with local HDMI, analogue audio and USB connectivity is included for remote presentation endpoints.

Suitable for

• Conference rooms and huddle spaces with mixed HDMI and USB-C laptops
• Meeting rooms requiring seamless AV switching and multiview presentation
• AV installations needing long-distance HDBaseT extension to a display or receiver

Key specifications

• Input formats: 2x HDMI, 2x USB-C (supports video and up to 100 W PD)
• Output formats: HDMI local output, HDBaseT output, USB3.0 video stream for conferencing
• Video support: up to 4K@60Hz 4:4:4, HDMI 2.0, HDCP 1.4/2.2
• Audio: mic/line input, analogue audio output at receiver, LPCM and supported passthrough for Dolby and DTS formats

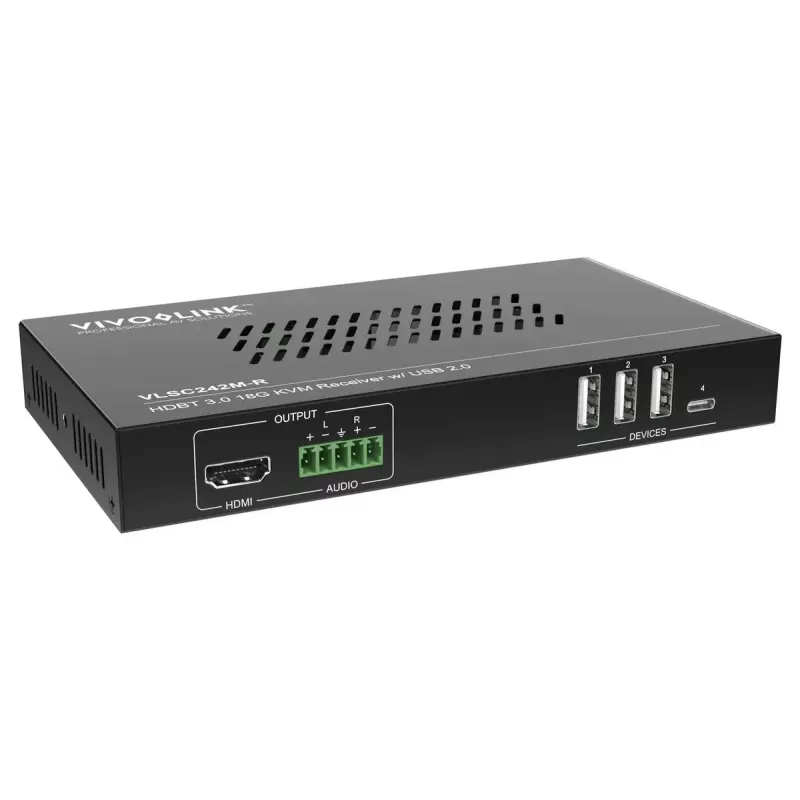

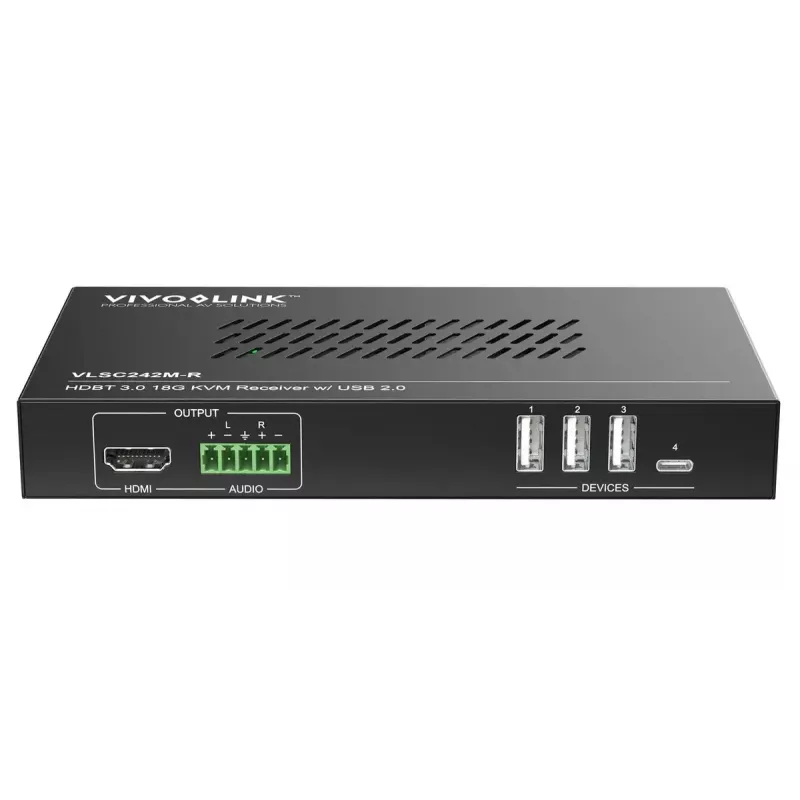

• USB: USB 3.2 Gen1 host/device ports on transmitter and 3x USB-A + 1x USB-C inputs on receiver
• Control and network: Ethernet pass-through, TCP/IP and RS232 control
• Power: AC 110–230 V input (external PSU)
• Mechanical: metal housing, dimensions approx. 250×200×44 mm

How to use

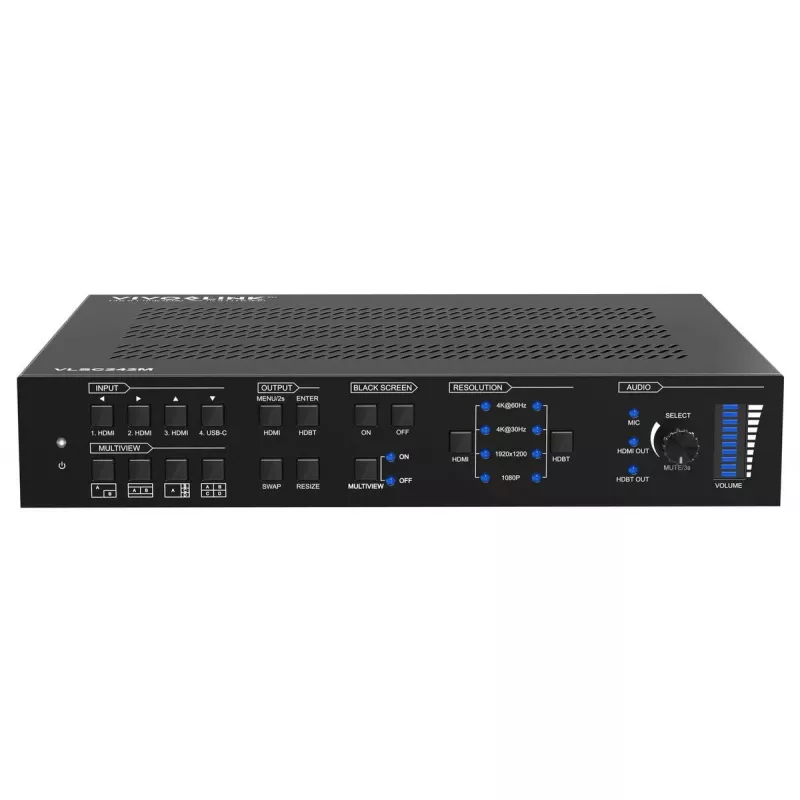

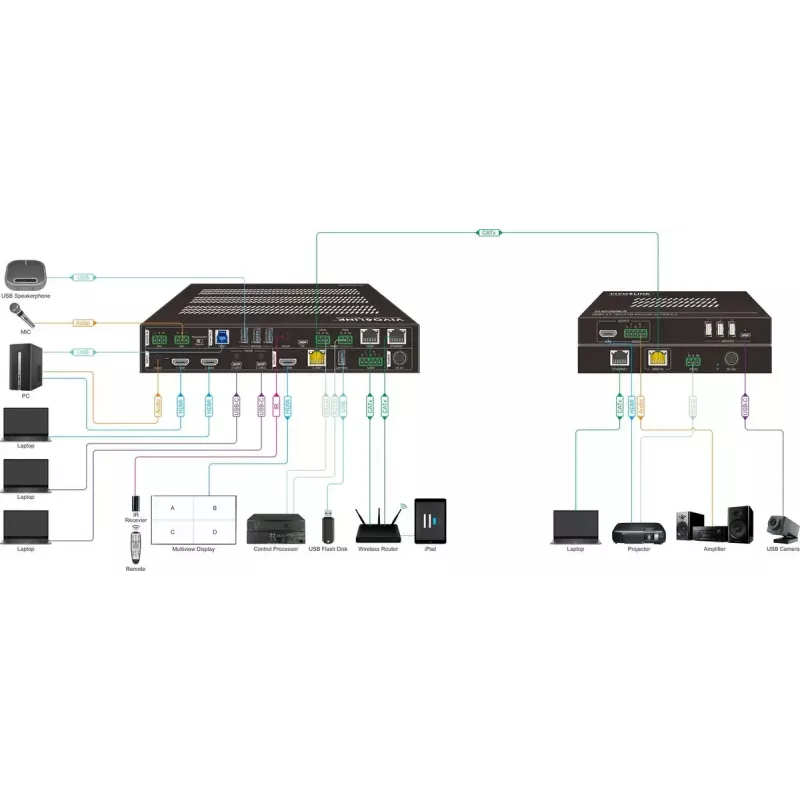

Connect source devices to the transmitter inputs (HDMI or USB-C). If a laptop supports USB-C power delivery, it can be charged by the connected USB-C input (up to 100 W). Connect the HDBaseT output to the included receiver using a compatible Cat cable to extend video, audio and USB signals to the remote location. Use the local HDMI output for a nearby display if required. For conferencing, enable the USB3.0 video stream to connect to platforms such as Teams or Zoom. Control switching via front-panel controls, TCP/IP or RS232 integration.

Recommendations

For reliable HDBaseT performance over long runs, use a high-quality Cat6a/Cat7 cable and keep cable runs within recommended distances. Verify source devices support the required video and HDCP formats and ensure firmware and connected conferencing software support USB3.0 video streaming where needed.
