ESPE HDN-3024 fonte de alimentação para calha DIN, 24 V 30 W 1 A

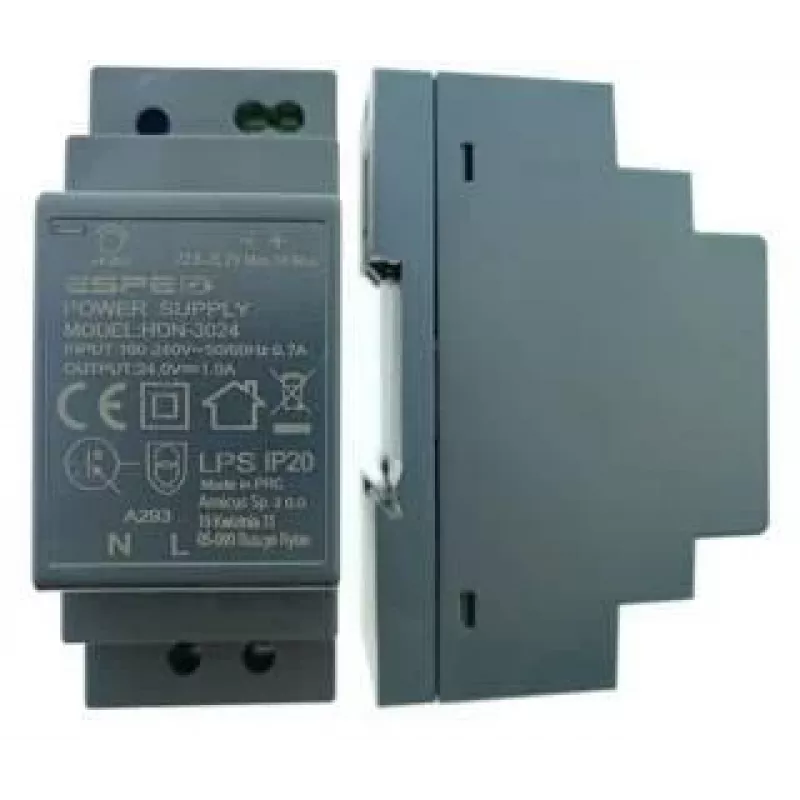

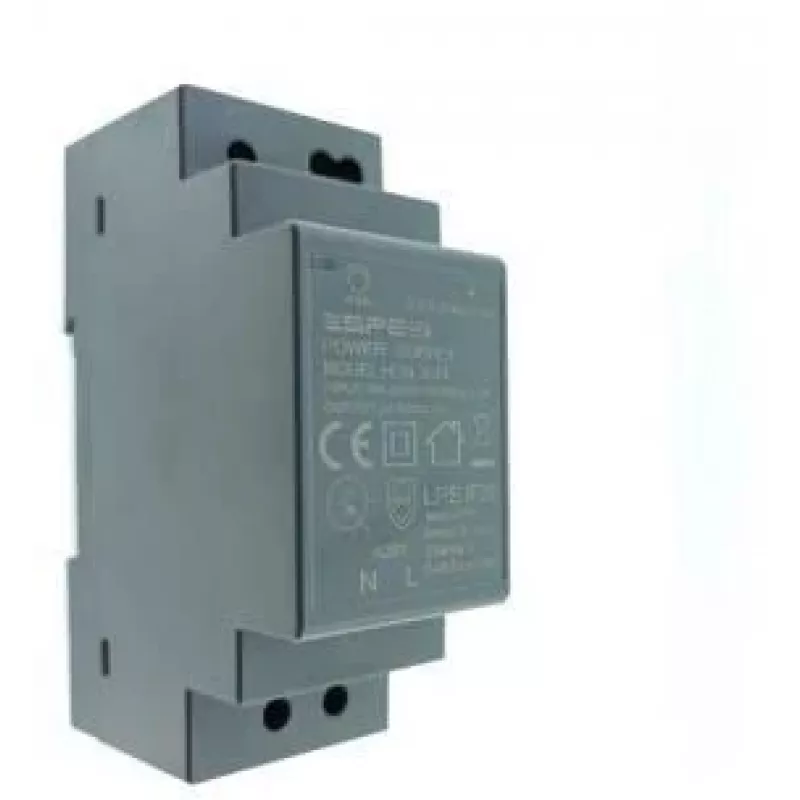

The ESPE HDN-3024 is a DIN rail switching power supply with a 24 V output, 30 W power rating, and 1 A current. It is designed for mounting on a TS35 mm DIN rail with a 2U width and features a perforated plastic housing for ventilation.

Key features

• DIN rail mounting (TS35 mm, 2U width)
• Perforated plastic housing for ventilation
• Trimmer for output voltage adjustment
• LED indicator
• Double output terminals
• Protections: output overcurrent (OCP), short circuit (SCP), overvoltage (OVP); input overvoltage (OVP), undervoltage (UVP)

Specifications

• Input voltage range: 100-240 VAC
• Input frequency range: 47-53 Hz
• No-load power consumption: below 0.25 W
• Regulation type: CV - constant voltage
• Nominal output voltage: 24 V
• Output voltage adjustment via trimmer: 22.8-25.2 V
• Nominal output power: 24 W
• Nominal load current: 1 A
• Max. output ripple: 150 mVp-p
• Energy conversion efficiency: above 79%
• Operating temperature range: 0°C to +40°C
• MTBF: 30,000 hours
• Dimensions: 90 x 58 x 35 mm
• Weight: 70 g
• Housing: IP20
