Estação de acoplamento/replicador de portas DELL 331-6307 docking preto

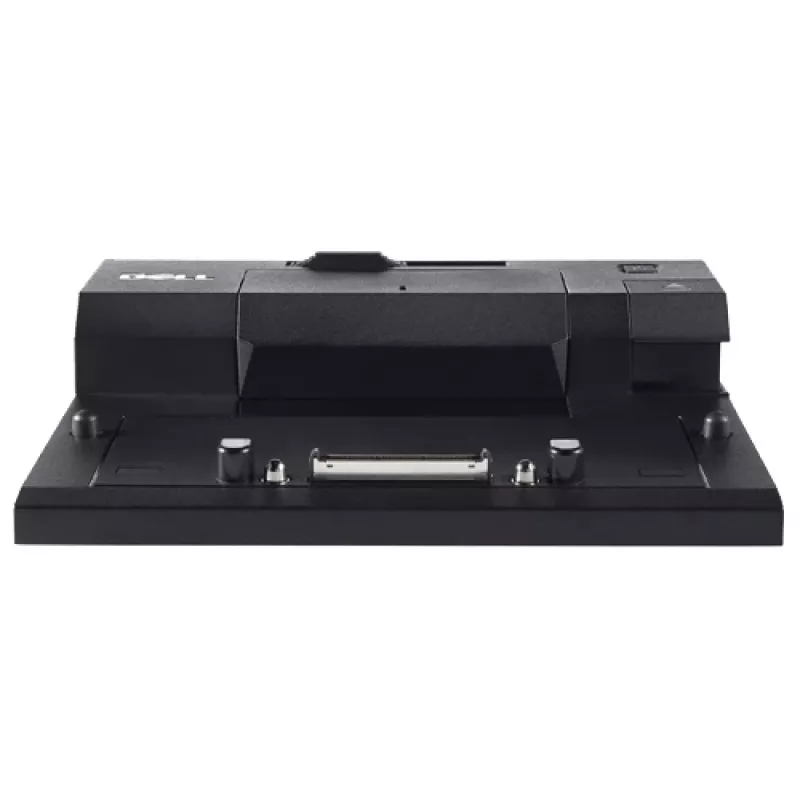

The Dell E-Port Replicator with USB 3.0 (model 331-6307) is a compact docking station designed to connect a Dell Latitude E-series laptop to desk peripherals. It replaces older USB 2.0 ports with USB 3.0 for faster data transfer, includes DisplayPort 1.2 support for daisy-chaining multiple monitors, and reduces adapter complexity. The unit is validated on Dell systems and is supported by Dell Technical Support when used with a compatible Dell system.

Advantages

This docking station provides USB 3.0 connectivity for improved transfer speeds compared with USB 2.0, DisplayPort 1.2 for multi-monitor daisy-chaining, and a compact footprint (201 mm × 170 mm × 53.3 mm) that saves desk space. It is tested and supported on Dell systems and includes standard USB Type-A ports and a 3.5 mm headphone jack for immediate peripheral connections.

Suitable for

• Office workstations requiring multiple peripheral connections
• Home offices where space-saving docking is needed
• Users of Dell Latitude E-series laptops seeking a validated docking solution
• Setups needing multi-monitor support via DisplayPort daisy-chaining

Key specifications

• Model: Dell 331-6307
• Interfaces: USB 3.0 (Type-A ports), DisplayPort 1.2, 3.5 mm headphone jack
• Power consumption: 130 W
• Compatibility: Validated on Dell systems, compatible with Dell Latitude E-series laptops
• Dimensions (W × D × H): 201 mm × 170 mm × 53.3 mm

How to use

Place the docking station on a stable surface and connect it to a compatible Dell Latitude E-series laptop using the laptop’s docking connector or the supplied cable as applicable. Attach monitors to the DisplayPort and connect peripherals (keyboard, mouse, external drives) to the USB Type-A ports. Plug headphones into the 3.5 mm jack if audio output is required. Ensure the laptop is powered and recognized by the system; drivers may install automatically or be obtained from Dell if needed.

Recommendations

Use this docking station with supported Dell systems to ensure full functionality and Dell Technical Support coverage. For multi-monitor setups, use DisplayPort 1.2–compliant displays and high-quality cables to enable daisy-chaining and optimal performance.
