Estroboscópio de discoteca Eurolite TMH-41 preto LED 30W DMX

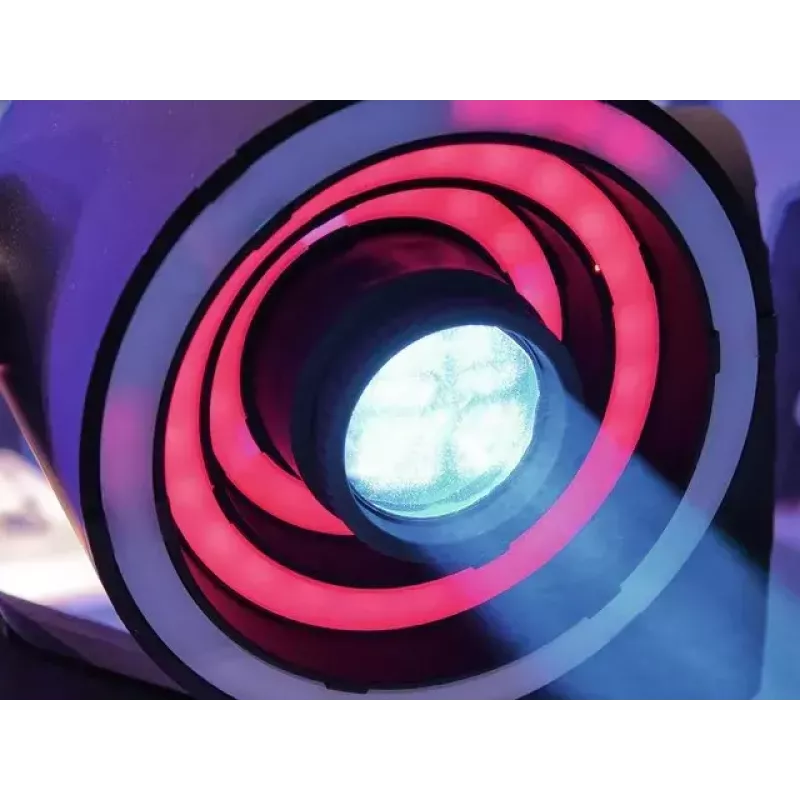

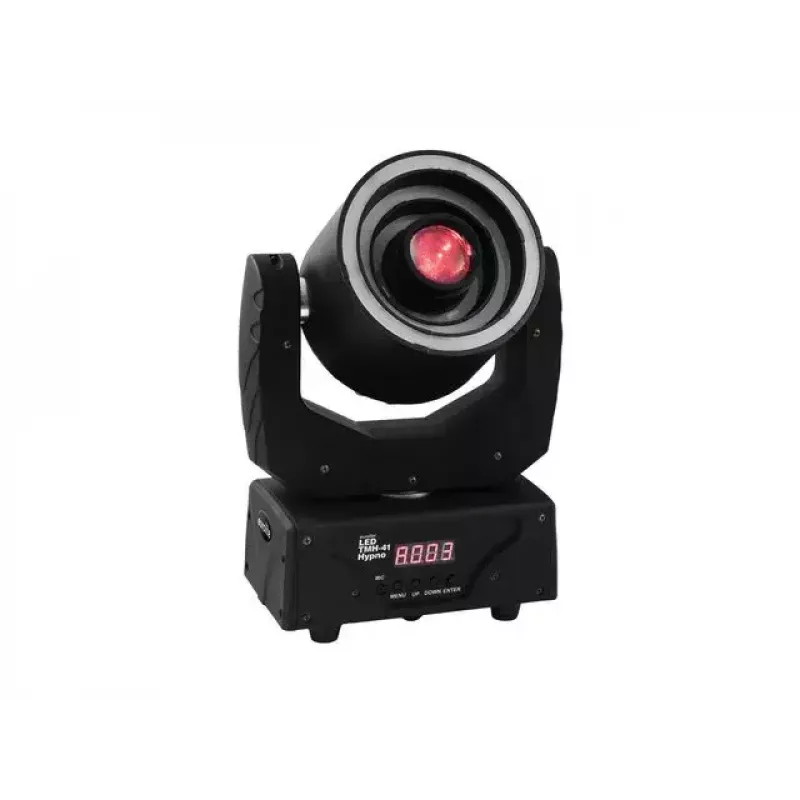

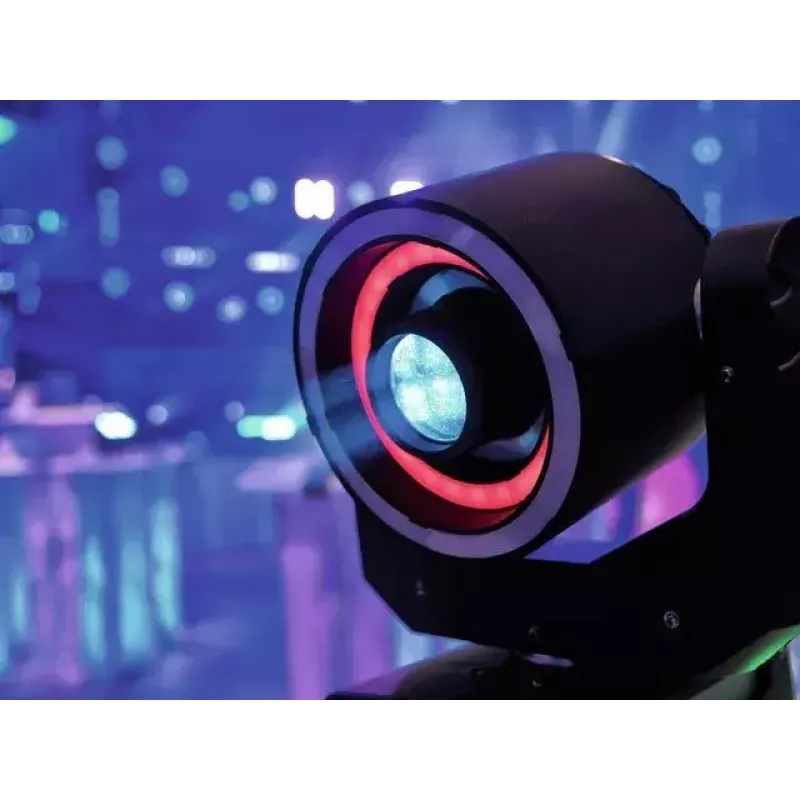

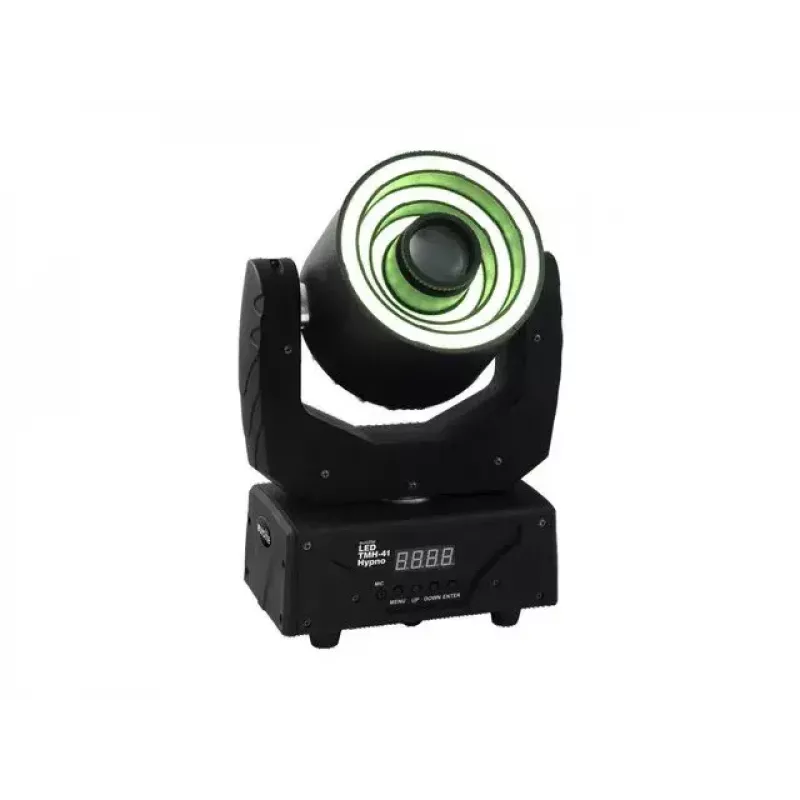

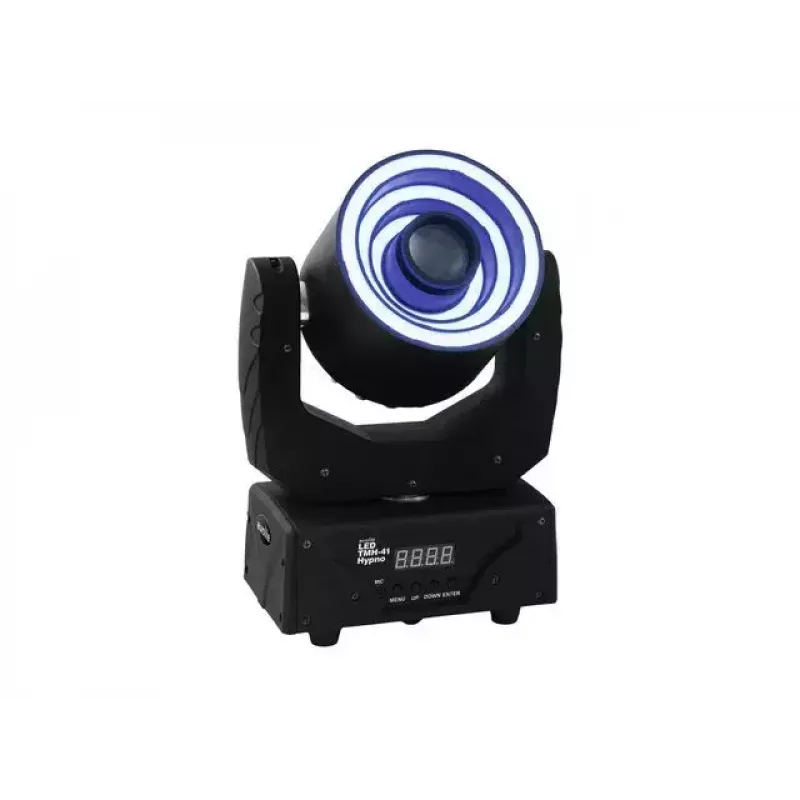

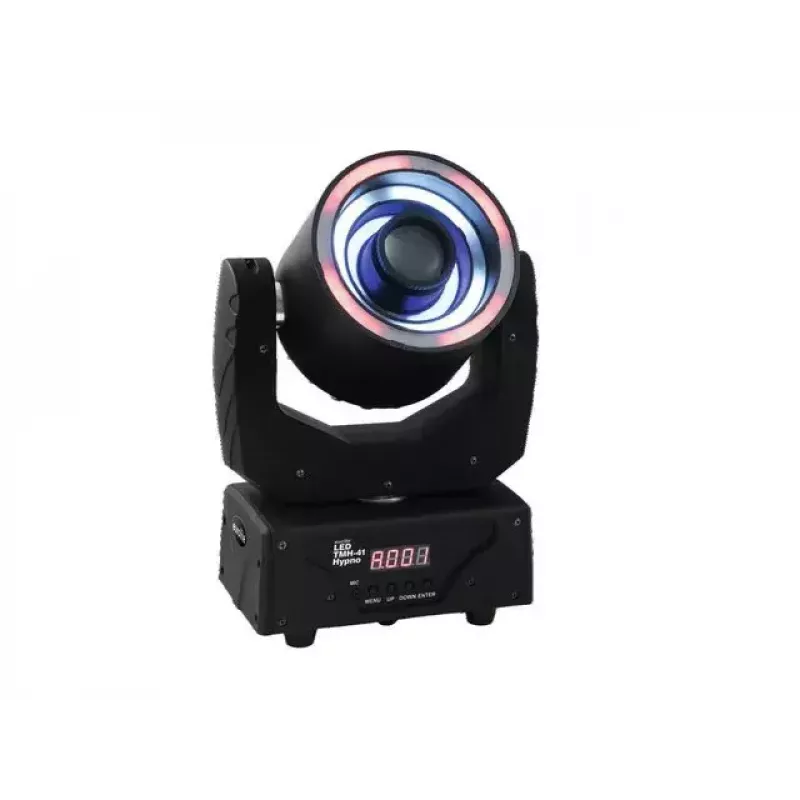

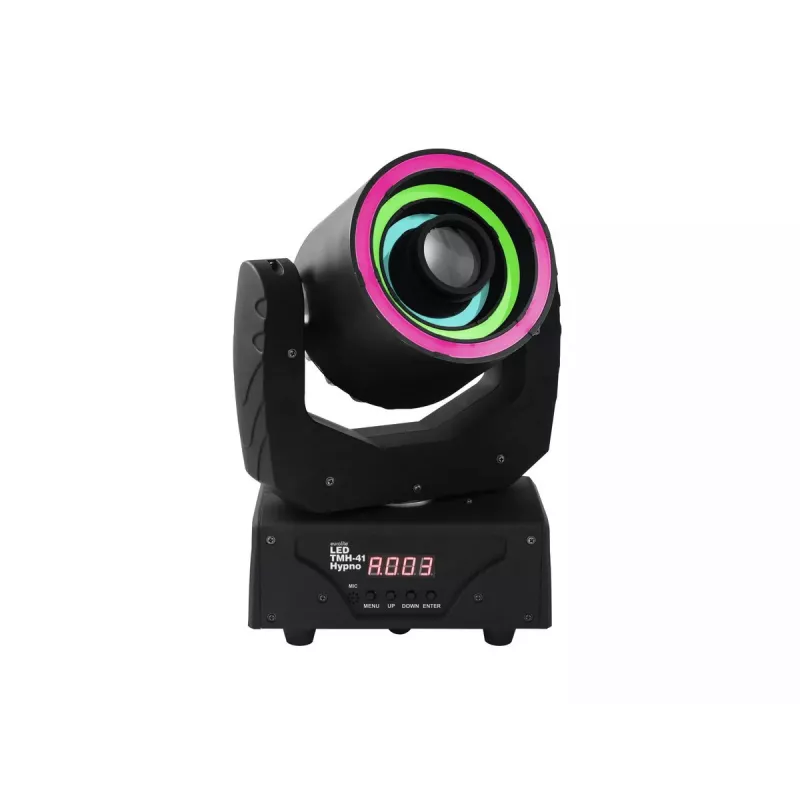

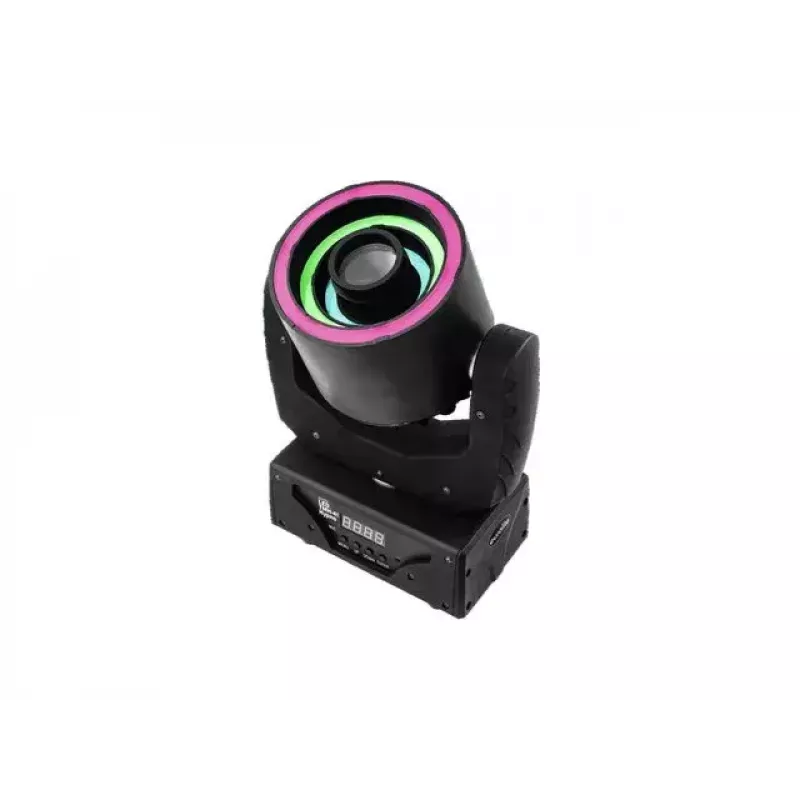

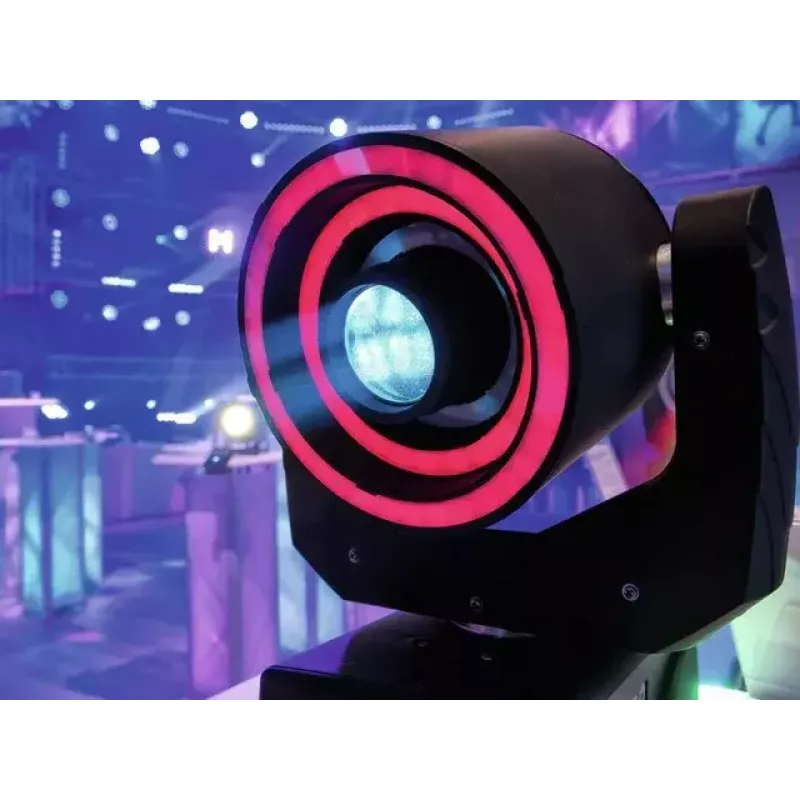

The Eurolite TMH-41 Black LED 30W DMX is a compact indoor spotlight designed for club and event lighting. It combines a powerful 30 W white COB LED beam with three concentric hypno rings containing a total of 76 RGB SMD LEDs, plus a color wheel and a gobo wheel for versatile beam shaping and color effects. The fixture supports DMX control, standalone and Master/Slave modes, and offers pan/tilt positioning with automatic correction.

Advantages

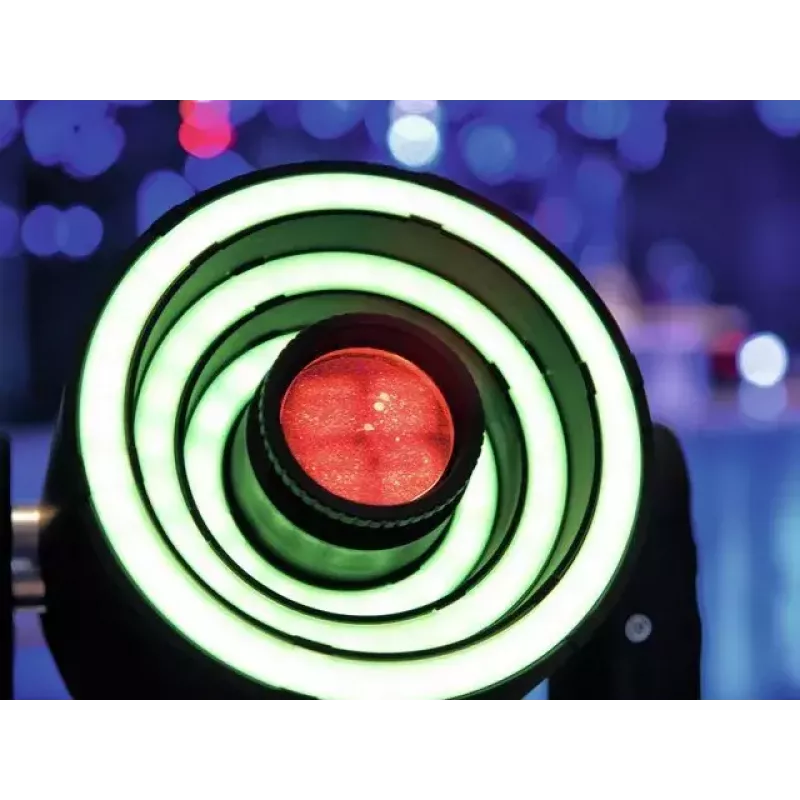

This narrow angled spotlight provides a strong single-beam effect from a 30 W COB LED while the three RGB hypno rings enable stepless color mixing and independent control of each ring and each color. The unit includes a 9-position dichroic color wheel plus white, a 9-gobo wheel with gobo shake, strobe and random strobe functions, and internal programs. Compact and lightweight, it accepts 100–240 V mains power and offers flexible control via DMX, sound activation or onboard controls.

Suitable for

Key specifications

How to use

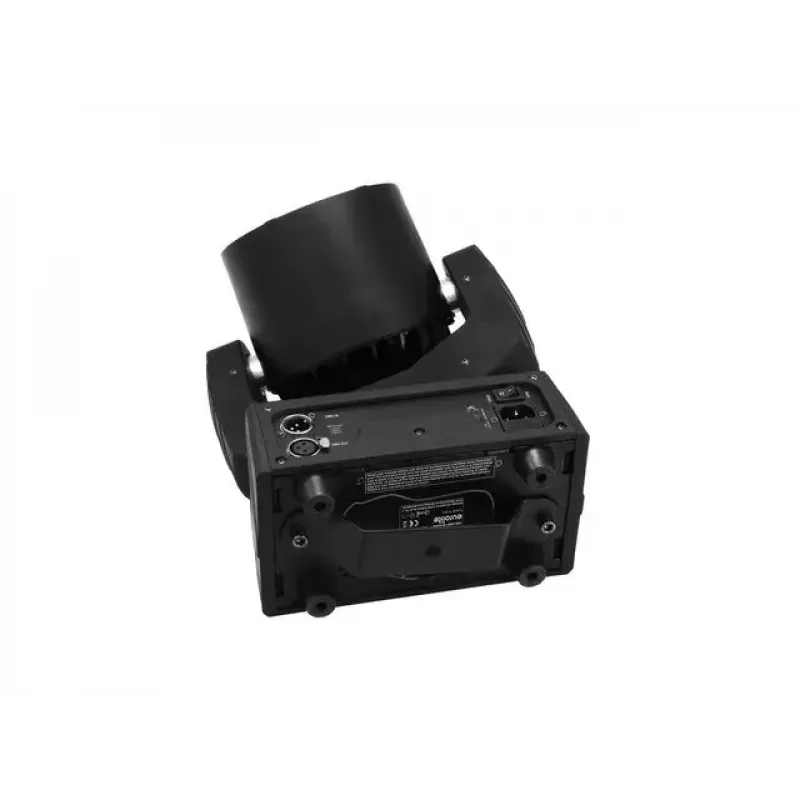

Mount the fixture on a suitable truss or stand using appropriate clamps and safety cable. Connect mains power using the supplied power cord and set the mains voltage range automatically via the internal switch-mode supply. Choose operation mode via the control panel: set DMX address and channel mode (12 or 23 channels) for control from a DMX console, or select stand‑alone, Master/Slave or sound control for automatic operation. Use manual focus to adjust beam sharpness and the control panel to trigger internal programs, strobe effects, color presets and gobo functions.

Recommendations

For reliable performance, install the Eurolite TMH-41 in a dry indoor environment, ensure adequate ventilation around the housing, secure the fixture with a safety cable, and allow the unit to reach room temperature before use. When integrating into a DMX system, verify cable wiring and set unique DMX addresses to avoid channel conflicts.
