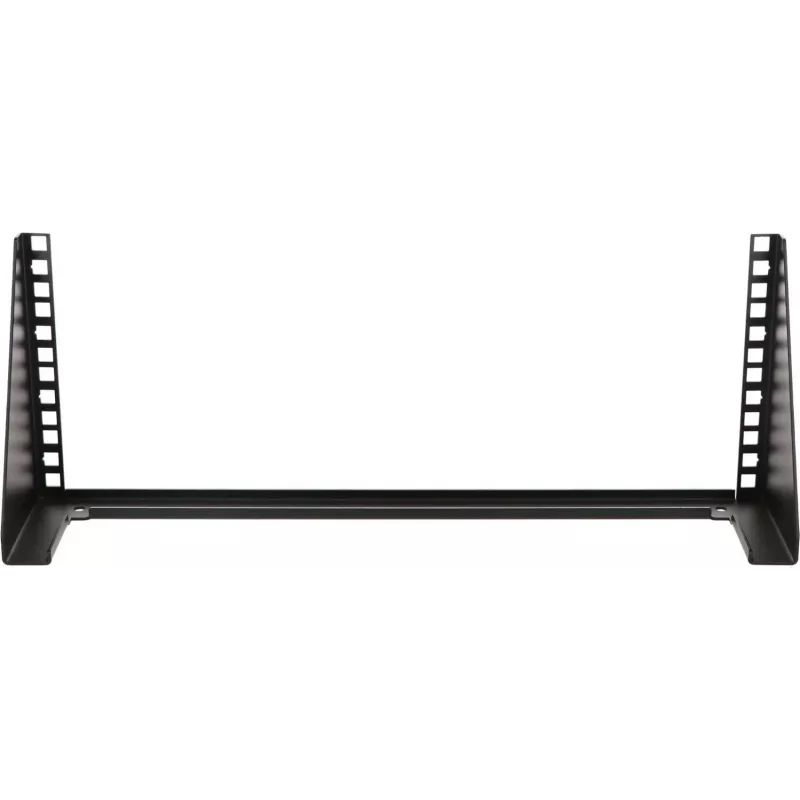

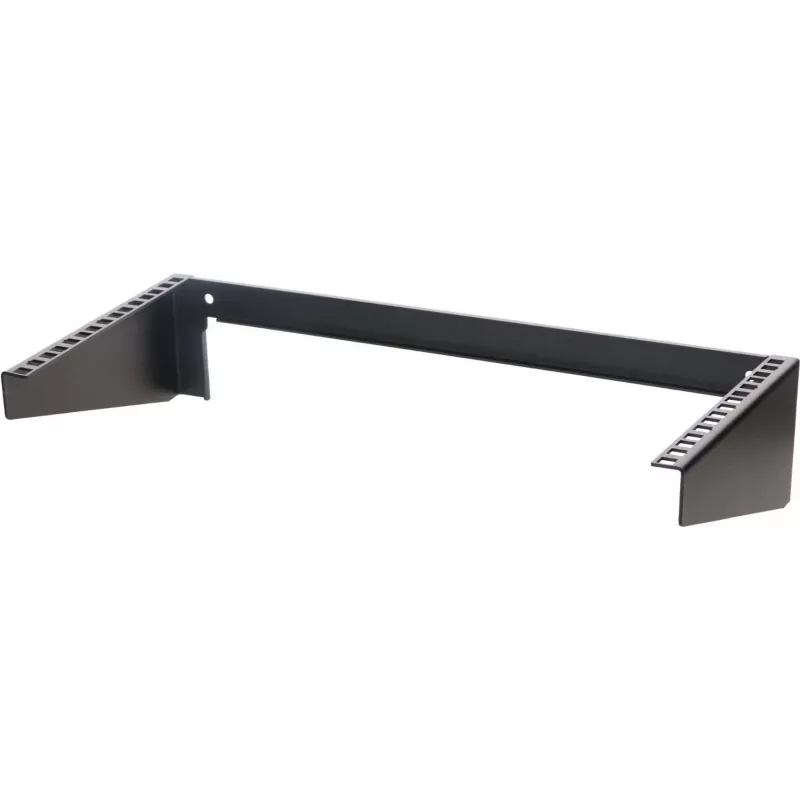

Estrutura de rack DSIT 5U 19" de montagem vertical na parede, preta

Limited floor space and cluttered network rooms are common challenges in small offices, retail back offices, and industrial control areas. The DSIT 5U 19-Inch Vertical Wall Mount Rack Frame solves this by securely mounting standard 19-inch equipment on a wall, keeping patch panels, switches, and small servers organized, accessible, and off the floor. Its vertical orientation maximizes space efficiency while providing a stable, open-frame platform for active and passive components.

Who is it for

This wall mount frame is ideal for IT technicians, network installers, and facility managers who need to deploy 19-inch rack-mountable hardware in locations where floor-standing racks are impractical. It suits small to medium network closets, security system enclosures, AV installations, and industrial control panels. The frame accommodates any standard 19-inch equipment, from patch panels and switches to compact servers and power distribution units.

Main features

• 5U vertical wall mount design for space-saving installation
• Compatible with all standard 19-inch rack-mountable devices
• Robust steel construction with powder-coated finish for durability
• Supports up to 60 kg static load for heavy equipment
• Open-frame design ensures passive ventilation and easy cable access
• Black RAL 9005 color blends with most equipment and environments

Specifications

• Rack standard: 19 inch
• Rack units: 5U
• Mounting type: Vertical wall mount
• Material: Steel
• Finish: Powder-coated
• Color: Black (RAL 9005)
• Maximum static load: 60 kg
• External dimensions (W x H x D): 500 x 222 x 200 mm
• Internal rack width: 482.6 mm (standard 19-inch mounting)
• Ventilation: Passive (open frame)
• Product type: Wall mount frame

Tips

Before installation, verify wall structure and use appropriate anchors for the total weight of the frame plus equipment. Ensure the mounting surface is level and can support at least 60 kg. For optimal cable management, route cables along the wall before securing equipment. The open frame allows easy access for maintenance; consider labeling ports and cables for quick identification. This frame is not suitable for outdoor use unless protected from moisture and extreme temperatures.
