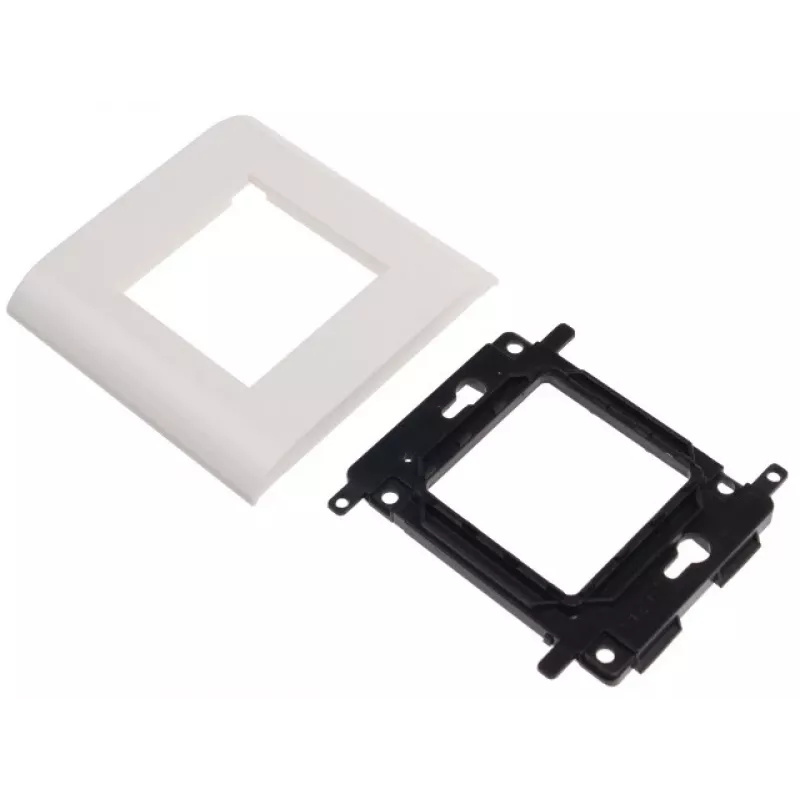

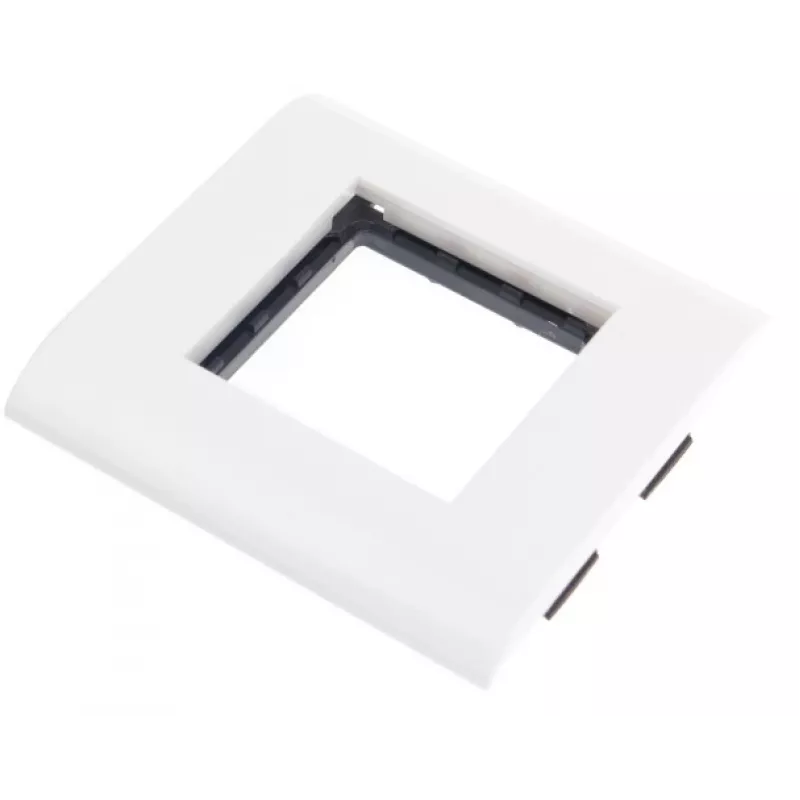

Estrutura de suporte individual JAVEL para 2 módulos M45, 1M, 45x45, branco

For installers and DIYers seeking a clean, modular solution for K45/M45 components, this single support frame stands out by offering a secure snap-in platform for two 45x45 mm modules in a compact 1-module-wide footprint. Unlike generic frames that require separate mounting boxes, this unit integrates directly into standard flush or surface installations, reducing clutter and simplifying wiring. Its flat profile and white ABS construction blend seamlessly with modern interiors, while the precise 90 x 45 mm faceplate covers the mounting area without protruding edges.

Highlights

• Holds exactly two M45 modules (45x45 mm each) in a single frame with support – ideal for combining power, data, or multimedia inserts.
• Compatible with Simon K45 series and other K45/M45 standard modules, giving you flexibility across brands.
• Durable white ABS plastic resists impact, scratches, and yellowing over time.
• Snap-in/clip-on module mounting – no screws or special tools needed for module installation.
• Flat, low-profile design (10 mm depth) sits nearly flush with the wall for a neat finish.
• Indoor use rated; suitable for residential, office, and light commercial electrical and data installations.

In daily use

This frame simplifies upgrades and repairs. When you need to add a second module – say, a USB charger next to a network jack – simply clip it into the empty slot. The support structure keeps both modules aligned and prevents wobble, even with frequent plugging and unplugging. The white finish matches standard wall plates and can be painted (with proper primer) to match custom décor. Because it accepts standard M45 inserts, you can reconfigure the frame later without replacing the entire assembly.

Full specifications

• Brand: JAVEL
• Model: 05-RS-1 OS103
• MPN: K45.02/11
• EAN: 5905567545092
• Product type: Modular mounting frame, single with support
• Module capacity: 2 modules
• Module standard: K45 / M45
• Supported module size: 45x45 mm per module
• External dimensions (L x W x D): 90 x 45 x 10 mm
• Material: ABS plastic
• Colour: White
• Mounting type: Snap-in / clip-on for modules
• Series compatibility: Simon K45 and other K45/M45 compatible modules
• Application: Electrical and data installations
• Intended use environment: Indoor
• Weight: 0.03 kg
• Warranty: 24 months (manufacturer)

Final note

With its straightforward snap-in design and universal M45 compatibility, this JAVEL frame is a reliable choice for anyone building or maintaining modular wall plates. It keeps your installation tidy, flexible, and future-ready.
