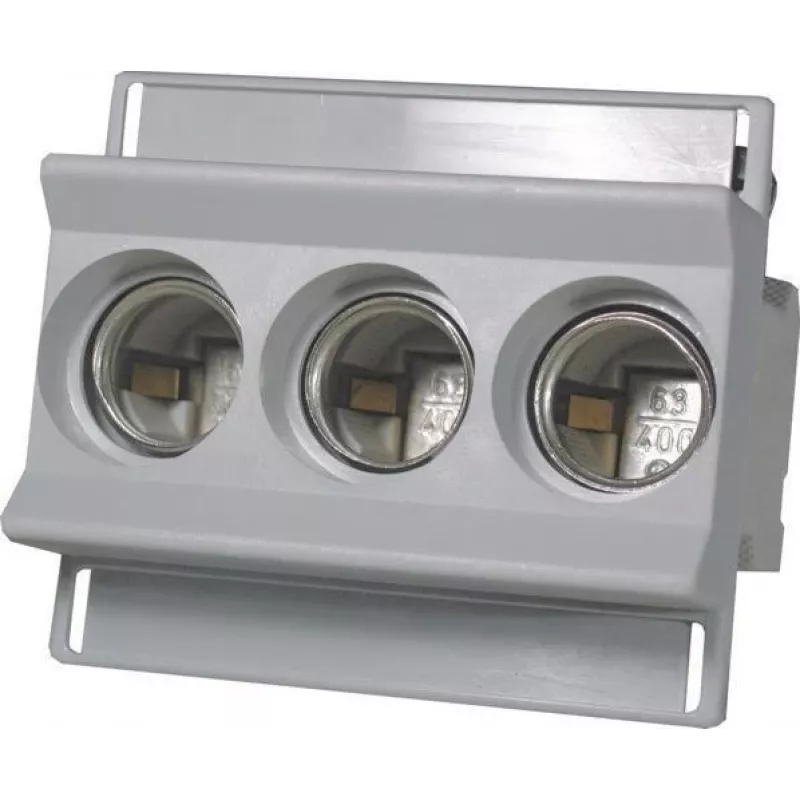

ETI D02 NEOZED base de fusível tripolar 63A com tampa de proteção 002222021

Rated for 63 A and 400 V AC, this NEOZED D02 fuse base handles high-current circuits with a 3-pole configuration and integrated protective cover. The ceramic base and thermoplastic housing provide thermal stability and insulation, while screw terminals accept conductors from 1.5 mm² to 25 mm². Mounting on a 35 mm DIN rail simplifies installation in distribution boards.

Overview

The ETI D02 fuse base is designed for NEOZED D02 fuse links, offering a secure and insulated connection point. Its 3-pole design with neutral conductor and protective cover ensures safe operation in three-phase systems. The unit complies with IEC 60269-3 and provides IP20 protection against solid objects.

What stands out

• High current rating: 63 A for demanding circuits
• 3-pole with neutral and integrated protective cover
• Ceramic base for excellent heat resistance
• Wide conductor range: 1.5 mm² to 25 mm²
• DIN rail mounting for quick installation

Technical details

• Fuse system: NEOZED D02
• Number of poles: 3
• Rated current: 63 A
• Rated voltage: 400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail TS35
• Terminal type: screw terminals
• Conductor cross-section: 1.5–25 mm²
• Degree of protection: IP20
• Standard: IEC 60269-3
• Housing material: thermoplastic
• Base material: ceramic
• Terminal torque: 2.5 Nm
• Number of modules: 3 (18 mm each)

Our verdict

A robust and safe choice for three-phase fuse protection up to 63 A, with a ceramic base and protective cover for enhanced durability.
