Exaustor de encastrar Elica ERA C IX/A, 520 mm de largura, filtro de gordura em alumínio, caudal máximo de extração 368 m³/h, 3 velocidades

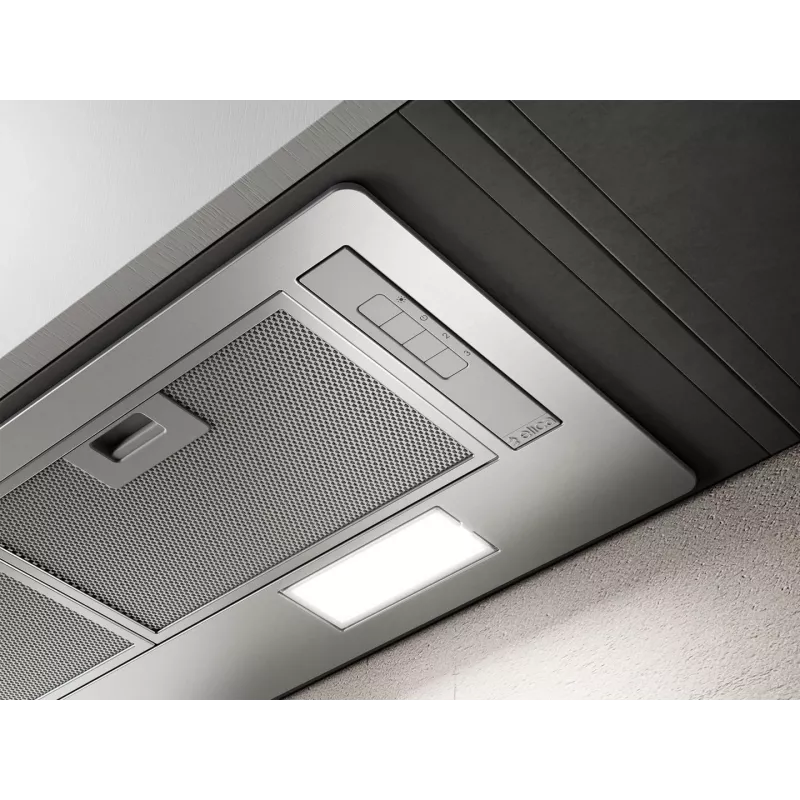

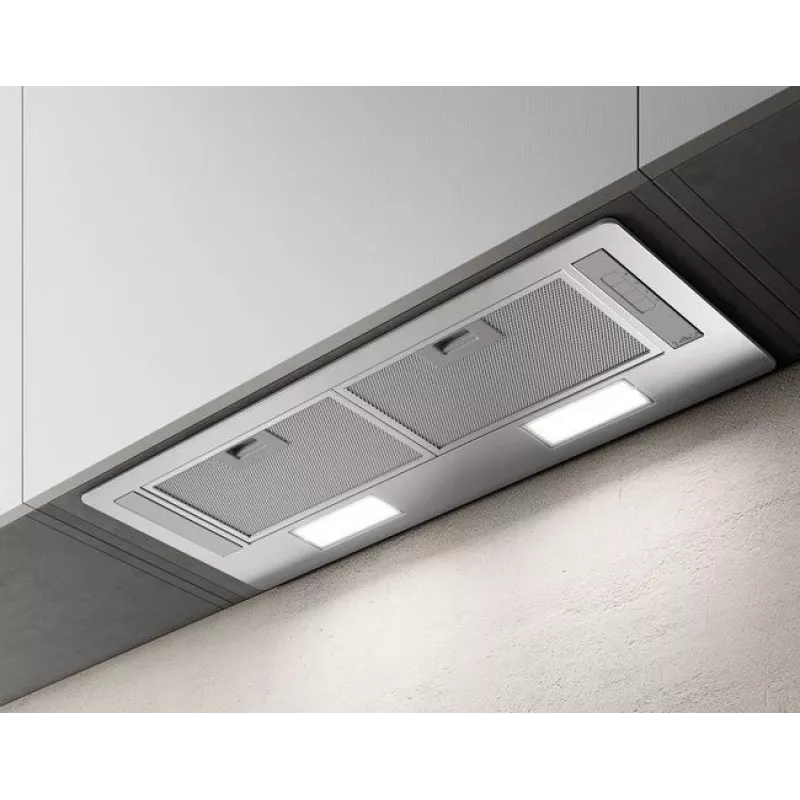

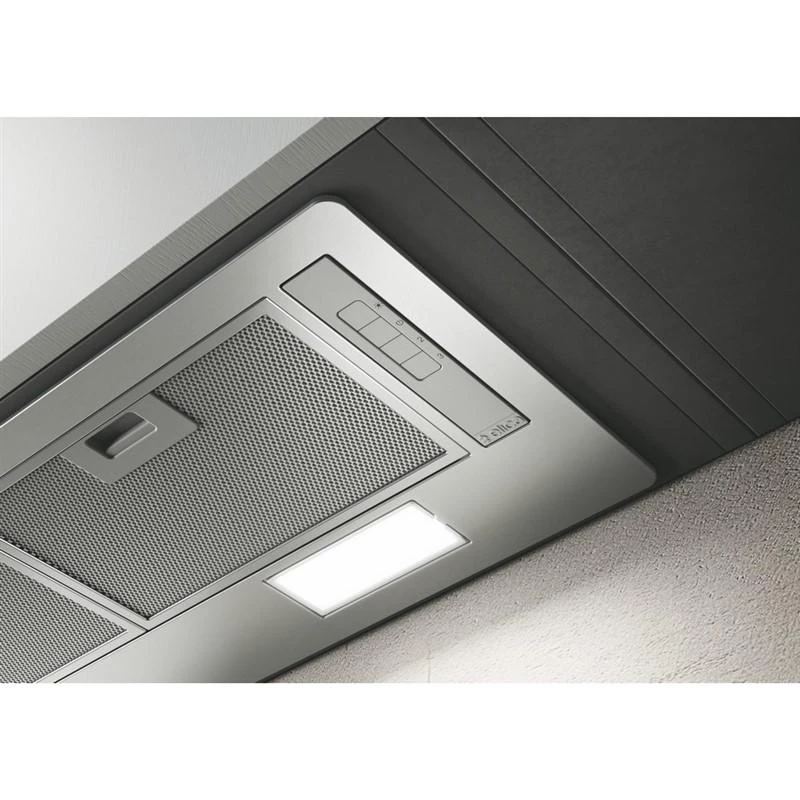

The Elica ERA C IX/A/52 is a built-in kitchen extractor hood designed for recirculating operation, combining compact dimensions and practical features for everyday ventilation. With a width of 520 mm and a maximum extraction power of 368 m³/h, this grey metal unit integrates into cabinetry to remove cooking fumes and odours through recirculation while retaining grease with an aluminium filter. The cooker hood is operated via push buttons and includes two rear-positioned bulbs to illuminate the cooking area. Energy performance is classified within the D band, with an annual energy consumption of 71 kWh and fluid dynamic efficiency class E.

Advantages

The built-in design allows the hood to be fitted flush with kitchen units, saving visible space while maintaining extraction capacity. The aluminium grease filter captures oil and particulate matter and is suitable for cleaning and reinstallation. Button controls provide straightforward operation and the twin rear lamps offer focused lighting over the hob. The metal construction in grey finishes provides durable surface resilience in a typical kitchen environment.

Suitable for

• Small to medium kitchens where a 520 mm built-in hood fits standard cabinetry
• Homes preferring recirculating ventilation without external ducting
• Cooking setups that require integrated lighting directly over the hob
• Users seeking a hood with an aluminium grease filter that can be removed and cleaned

Key specifications

• Width: 520 mm
• Maximum extraction power: 368 m³/h
• Noise level at maximum setting: 67 dB
• Operation mode: recirculating
• Grease filter: aluminium
• Control: buttons
• Product colour: grey (metal construction)

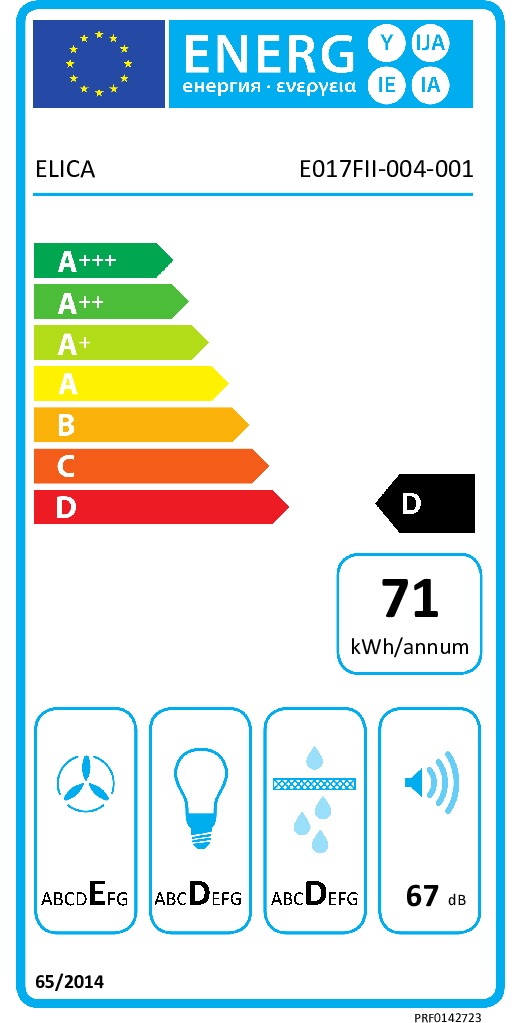

• Annual energy consumption: 71 kWh
• Fluid dynamic efficiency class: E
• Energy efficiency band: D

How to use

Install the Elica ERA C IX/A/52 into a suitable cabinet or recess following the manufacturer’s mounting instructions and recommended clearances from the cooking surface. Fit the aluminium grease filter and connect the unit to the electrical supply as required for recirculating mode, including any charcoal filter accessories if specified for odour reduction. Operate the hood using the front-mounted buttons to select the required fan speed; switch on the lamps as needed to illuminate the hob. Clean the aluminium filter at regular intervals according to cooking frequency and reinsert once fully dry.

Recommendations

For best performance, run the extractor during and for a short period after cooking at an appropriate fan speed to remove steam and odours. Clean the aluminium grease filter regularly with warm soapy water or a suitable dishwasher cycle if permitted, and check seals and lamp function during routine maintenance. In recirculating installations, replace or recharge any active charcoal filters according to the supplier’s guidance to maintain odour control.
