Exaustor de parede CATA VK 6000 X, aço inoxidável, filtro de gordura de alumínio, 395 m³/h, 150 mm

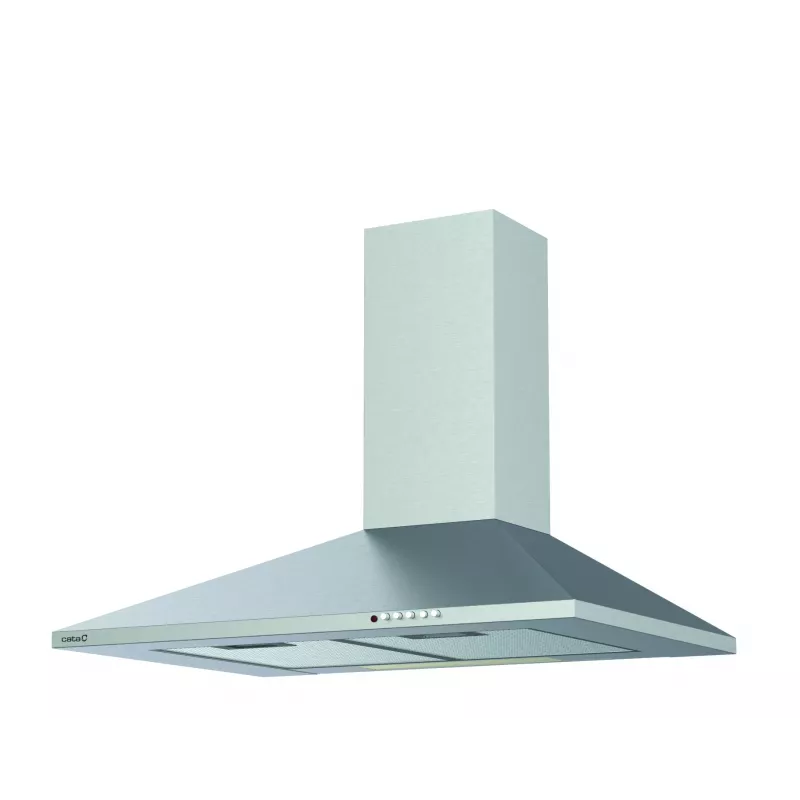

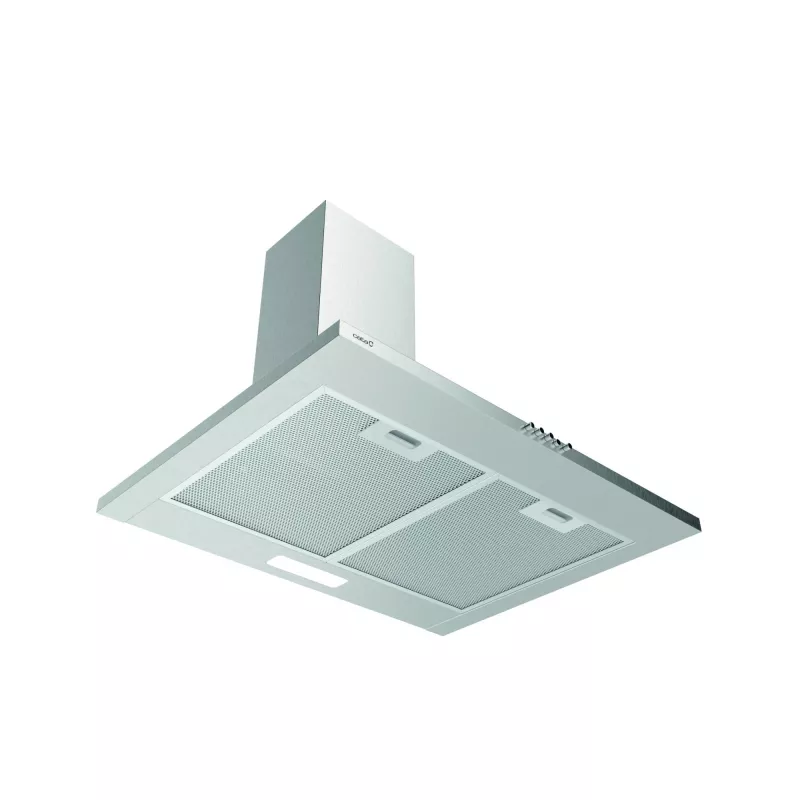

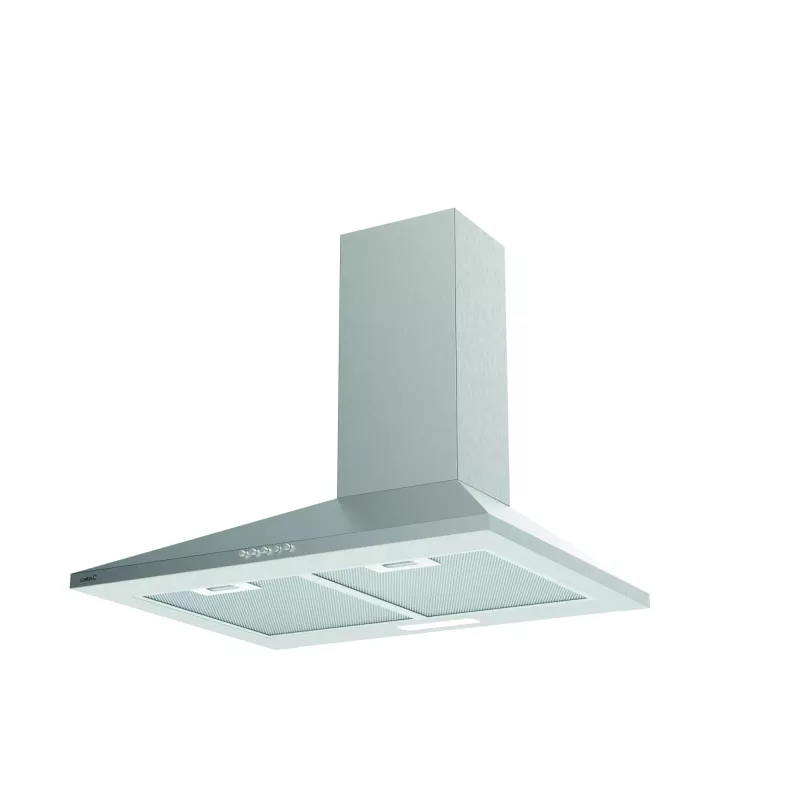

The CATA VK 6000 X wall-mounted extractor hood is made of stainless steel and designed for ducted kitchen ventilation. It provides a maximum extraction rate of 395 m³/h and connects to an external duct with a 150 mm diameter. Controls are by push-button switches, and the unit includes an aluminium grease filter and a 3 W LED lamp. The hood has an energy efficiency class A and annual energy consumption of 24.8 kWh. The exhaust outlet is located on the top of the appliance and the unit is suitable for typical domestic cooking environments.

Advantages

The stainless steel construction ensures resistant surfaces that are easy to clean and maintain in a kitchen environment. A relatively high maximum extraction rate of 395 m³/h supports effective removal of cooking fumes and odors when connected to a ducted system. Included aluminium grease filter captures grease particles and can be cleaned, while the integrated 3 W LED lamp provides task lighting with low power consumption. Push-button controls offer a simple and reliable user interface. Energy efficiency class A and modest annual energy consumption make the hood suitable for energy-conscious households.

Suitable for

• Standard domestic kitchens requiring ducted extraction
• Wall-mounted installations above cooktops and ranges
• Cooking areas up to medium ventilation demand where up to 395 m³/h is sufficient
• Users who prefer a stainless steel finish and simple push-button controls

Key specifications

• Maximum extraction rate: 395 m³/h
• Exhaust connection diameter: 150 mm
• Exhaust location: top
• Construction material: stainless steel
• Grease filter type: aluminium
• Lighting: 3 W LED
• Control type: push-button
• Energy efficiency class: A
• Annual energy consumption: 24.8 kWh
• Noise level: 67 dB
• Fluid dynamic efficiency class: B
• Grease filtering efficiency class: D

How to use

Mount the hood on a suitable wall above the cooking surface following installation clearances recommended by local building codes and the appliance manual. Connect the exhaust duct to the 150 mm top outlet and ensure airtight ducting to the external vent. Use the push-button controls to select the required extraction speed and switch the 3 W LED lamp on for cooking illumination. Clean the aluminium grease filter regularly according to the maintenance instructions; remove and wash the filter in warm soapy water or as specified by the manufacturer, then allow it to dry completely before refitting. Switch off power before carrying out any maintenance.

Recommendations

For effective ventilation and lower noise, use the lowest extraction setting that achieves satisfactory removal of steam and odors. Regular cleaning of the aluminium grease filter and external ducting will maintain performance and reduce energy use. If stronger extraction is needed for heavy cooking, verify that duct length and bends are minimized to preserve the unit's rated airflow.
