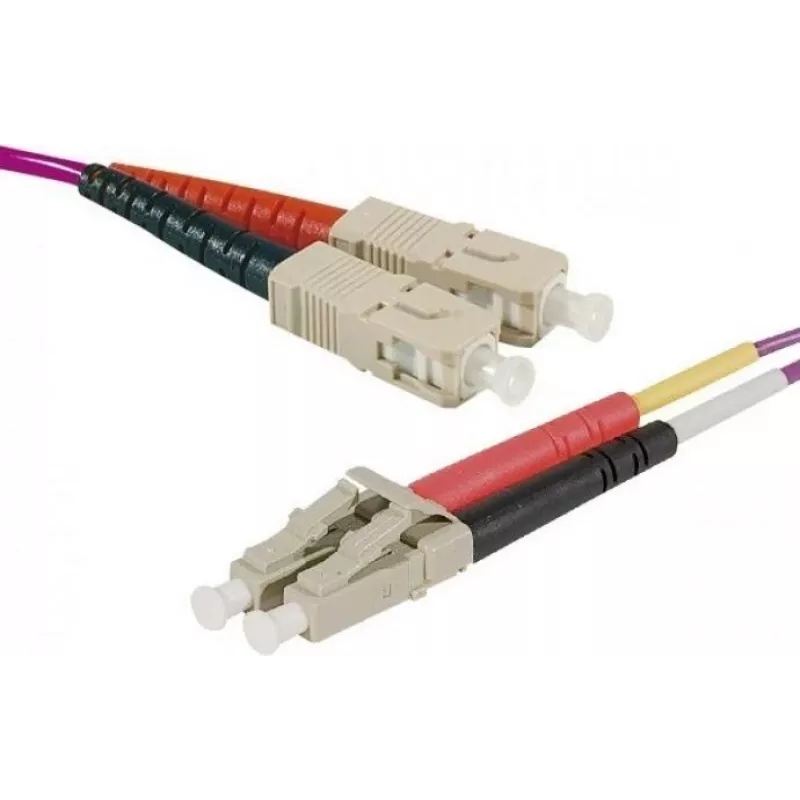

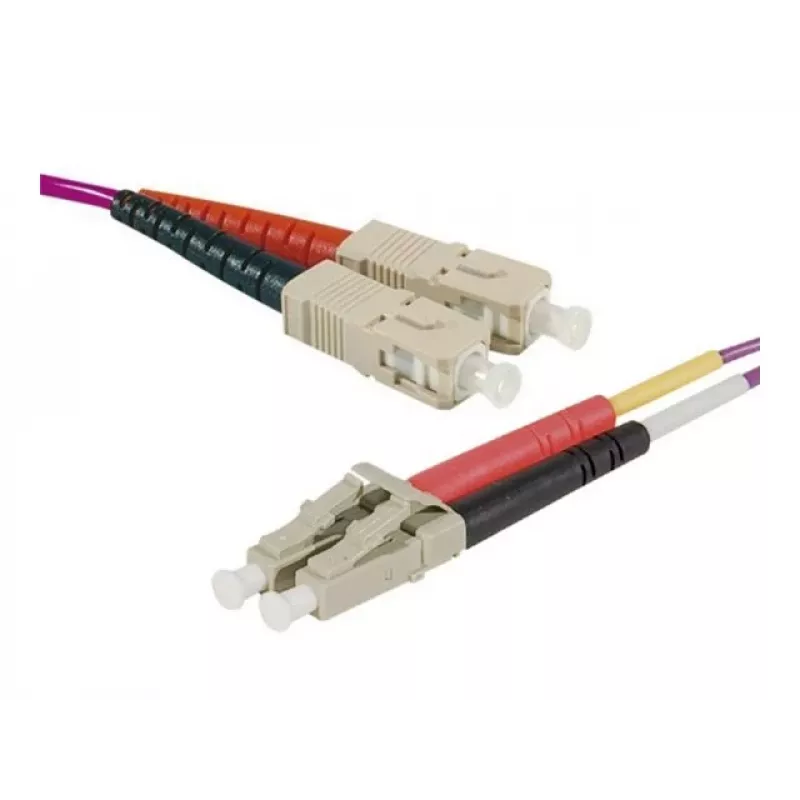

EXERTIS CONNECT cabo de patch de fibra ótica Eco, 50/125 µm, fibra OM4, ficha SC duplex/ficha LC duplex, violeta erika, 3,0 m polimento UPC UPC (392803)

Fiber optic patch cable with OM4 multimode fiber, SC duplex to LC duplex connectors, and UPC polish. The 50/125 µm core/cladding diameter supports high-speed data transmission over 3.0 meters with low insertion loss and high return loss. The erika-violet LSZH jacket is suitable for indoor use.

Advantages

OM4 fiber supports 10 Gigabit Ethernet up to 400 meters and 40/100 Gigabit Ethernet up to 150 meters at 850 nm. Duplex construction enables bidirectional communication. UPC polish reduces back reflection, ensuring stable signal integrity. LSZH jacket emits low smoke and zero halogen in case of fire.

Suitable for

• Data centers and server rooms
• High-speed backbone connections
• Telecommunications closets
• Indoor fiber optic installations

Key specifications

• Fiber type: OM4 multimode
• Core/cladding diameter: 50/125 µm
• Connectors: SC duplex to LC duplex, UPC polish
• Length: 3.0 m
• Jacket: LSZH, erika-violet
• Insertion loss: max 0.3 dB per connector pair
• Return loss: min 50 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C

Recommendations

For reliable high-speed fiber connections in indoor environments, this OM4 patch cable offers excellent performance and safety features.
