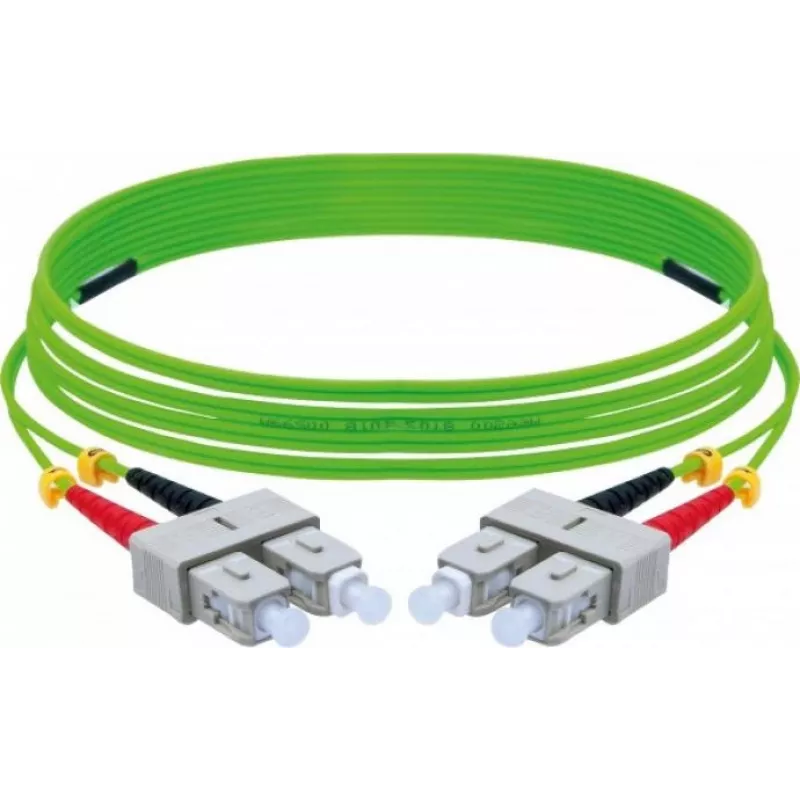

EXERTIS CONNECT Cabo de patch de fibra ótica OM5 SC Duplex para SC Duplex UPC, 50/125 µm, verde-limão, 5 m 392904

This OM5 wideband multimode fibre patch cable is built for high-speed data centre links, supporting 40GbE, 100GbE, and 400GbE over short distances. The lime green jacket makes it easy to identify as OM5, and the SC duplex connectors with UPC polish ensure a reliable, low-loss connection.

Highlights

• OM5 fibre supports 100G SWDM4 and 400G SR4.2 applications

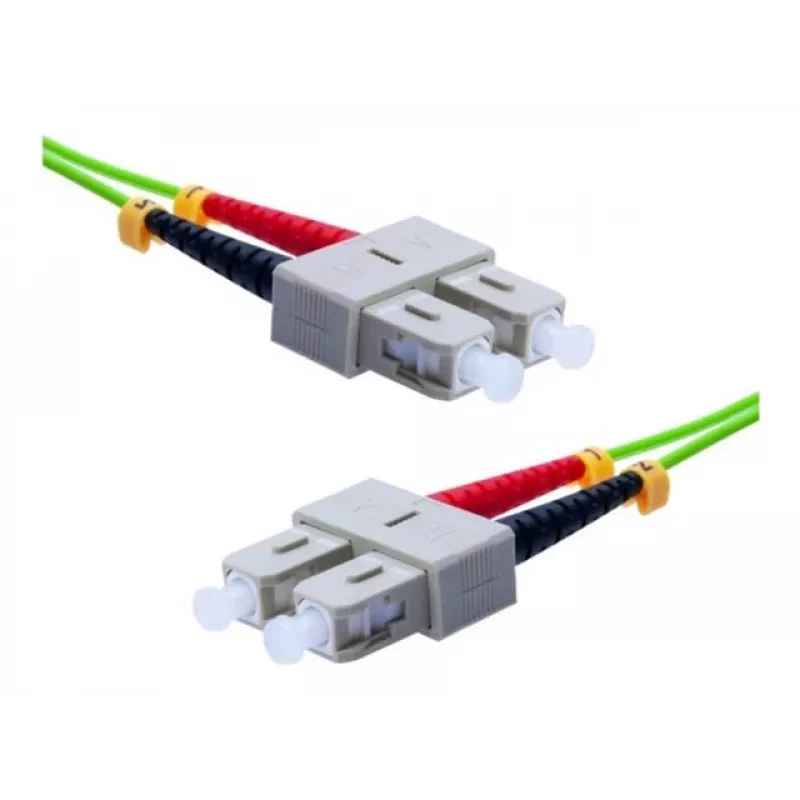

• SC duplex to SC duplex connectors with UPC polish for low return loss
• 50/125 µm core/cladding diameter for multimode transmission
• Lime green jacket per industry colour code for OM5
• 5 m length for flexible patching in racks and cabinets

In daily use

Patch panels, switches, and servers connect cleanly with this cable. The duplex clip keeps both fibres aligned, and the UPC polish reduces back reflections, which matters for high-speed transceivers. The 5 m length reaches between adjacent racks without excess slack.

Full specifications

• Fibre type: OM5 multimode
• Core/cladding diameter: 50/125 µm
• Connector 1: SC Duplex, UPC polish
• Connector 2: SC Duplex, UPC polish
• Cable length: 5 m
• Jacket colour: Lime green
• Number of fibres: 2
• Wavelengths supported: 850 nm, 953 nm
• Max attenuation @ 850 nm: 3.0 dB/km
• Max attenuation @ 1300 nm: 1.0 dB/km
• Min modal bandwidth @ 850 nm (OFL): 3500 MHz·km
• Min modal bandwidth @ 953 nm (OFL): 1850 MHz·km
• Min effective modal bandwidth @ 850 nm (EMB): 4700 MHz·km
• Min effective modal bandwidth @ 953 nm (EMB): 2470 MHz·km

Final note

OM5 is backward compatible with OM3 and OM4, so this cable can be used in existing multimode installations while preparing for future speed upgrades.
