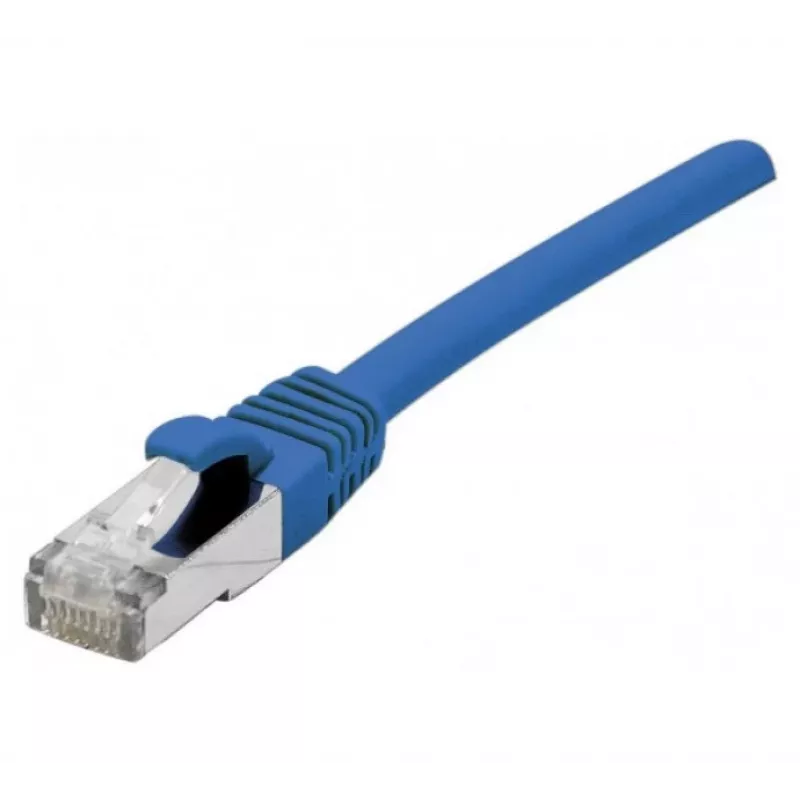

EXERTIS CONNECT Cabo de rede Cat 6A S/FTP, 0,3 m, azul 858450

Ethernet patch cable with Cat 6A performance, supporting data transfer rates up to 10 Gbps and a bandwidth of 500 MHz. The S/FTP shielding with PIMF (pairs in metal foil) ensures reliable protection against interference, making it suitable for demanding network environments.

Advantages

S/FTP shielding with PIMF provides excellent protection against crosstalk and external interference. The slim bend protection boot allows for easy installation in tight spaces. LSZH jacket material is halogen-free, reducing toxic smoke in case of fire.

Suitable for

• Connecting network components with RJ45 connectors
• 10GBASE-T Ethernet applications
• High-density patch panels and switches

Key specifications

• Category: Cat 6A (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Inner shielding: PIMF (Pairs in Metal Foil)
• Length: 0.3 m
• Colour: Blue
• Connector 1: RJ45 Male
• Connector 2: RJ45 Male
• Connector plating: Gold-plated (50µ)
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (Stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Wiring standard: TIA/EIA 568B
• Boot type: Snagless, Slim Bend Protection
• Compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568C.2
• Halogen free: Yes

Recommendations

Ideal for short patch connections in data centers, server rooms, and office networks where high performance and reliability are required.
