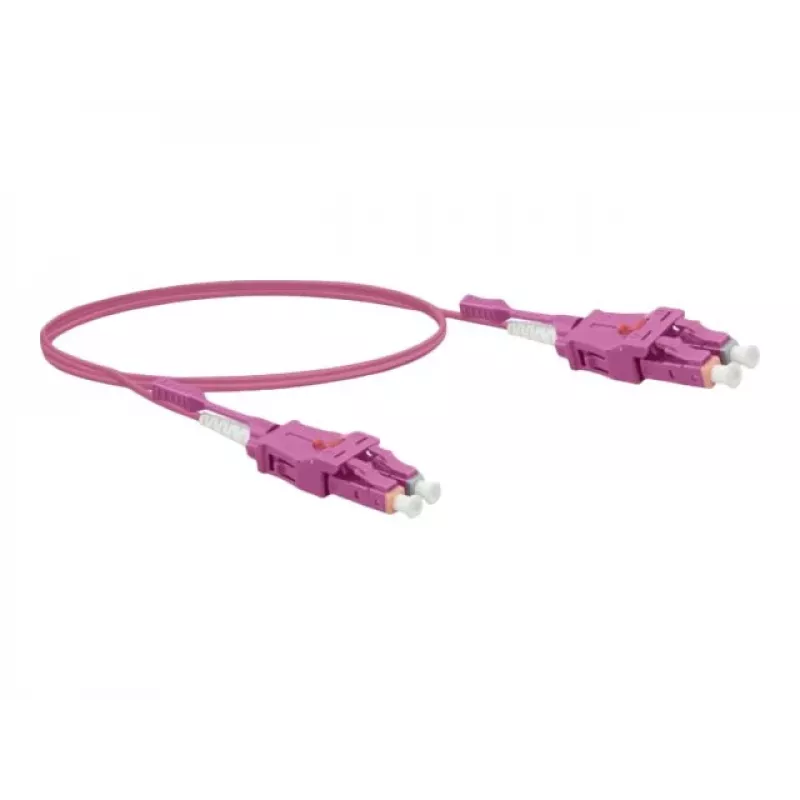

Exertis Connect Cabo de rede LC/UPC para LC/UPC OM4 Multimodo Duplex Uniboot, 1m, Violeta Erika, LSZH 392951

This Exertis Connect patch cable stands out with its Uniboot design, combining both fibers into a single 2mm jacket to reduce bulk and improve airflow in dense fiber installations. It is built for high-speed multimode links in data centers and enterprise networks.

Highlights

• LC/UPC to LC/UPC connectors, male on both ends
• OM4 multimode fiber, 50/125 µm core/cladding, supports high bandwidth
• Duplex construction with Uniboot cable for space savings
• LSZH jacket, halogen-free and low smoke
• Erika violet color for easy identification
• 1.0 m length, 2.0 mm cable diameter

In daily use

This cable is ideal for patching between fiber panels, switches, and transceivers in high-density environments. The Uniboot design allows both LC connectors to fit into standard duplex adapters while using a single cable body, reducing cable management clutter. The LSZH jacket ensures safety in enclosed spaces by limiting smoke and toxic emissions in case of fire.

Full specifications

• Cable length: 1.0 m
• Cable diameter: 2.0 mm
• Connector 1: LC/UPC male
• Connector 2: LC/UPC male
• Fiber mode: Multimode
• Fiber type: OM4
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Jacket material: LSZH
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Final note

The Uniboot construction and OM4 performance make this cable a practical choice for modern fiber networks where space and reliability matter.
