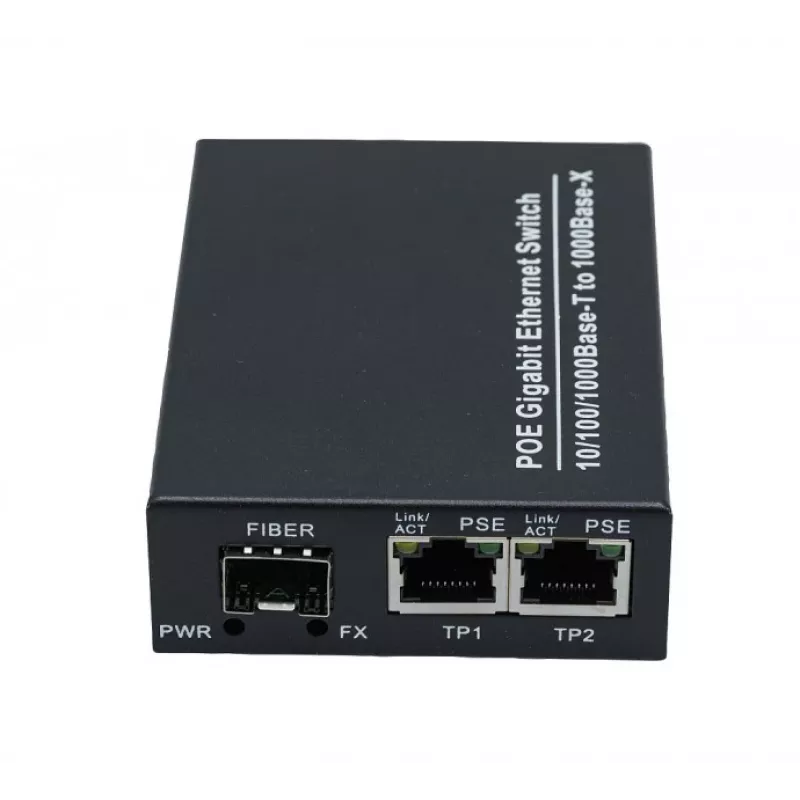

EXERTIS CONNECT conversor de media com injetor PoE+ 30 W, 2x 10/100/1000 Mbps RJ45, 1x slot SFP 100/1000 Mbps 311793

This media converter stands out by combining a 30 W PoE+ injector with a fibre uplink in a single compact unit, eliminating the need for a separate power sourcing equipment when connecting remote devices over fibre. It offers two Gigabit RJ45 ports—one for data input and one for PoE+ output—alongside an SFP slot for flexible fibre connectivity.

Highlights

• Delivers up to 30 W PoE+ (IEEE 802.3at) to power IP cameras, wireless access points, or VoIP phones
• Supports 10/100/1000 Mbps on copper and 100/1000 Mbps on fibre via SFP
• Link Fault Pass Through (LFP) and DIP switch configuration for network diagnostics and setup
• Metal housing with desktop or wall-mount options for versatile installation

In daily use

The converter simplifies network extension: connect a non-PoE switch to the data port, run fibre to a remote location, and use the PoE+ port to power a device without local AC. LEDs for power, link/activity, PoE, and speed provide clear status at a glance. Auto MDI/MDI-X on RJ45 ports removes cabling concerns.

Full specifications

• Ethernet ports: 2x 10/100/1000Base-T RJ45 (1x data input, 1x PoE+ output)
• Fibre port: 1x 100/1000Base-X SFP slot (SFP module not included)
• PoE standard: IEEE 802.3at (PoE+), max output 30 W
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
• Power input: 48–56 V DC
• Operating temperature: 0°C to 50°C
• Housing: metal, desktop or wall-mountable
• LED indicators: power, link/activity, PoE, speed
• Features: Auto MDI/MDI-X, Link Fault Pass Through, DIP switch configuration

Final note

A practical solution for powering devices over fibre without extra injectors, ideal for surveillance and access networks.
