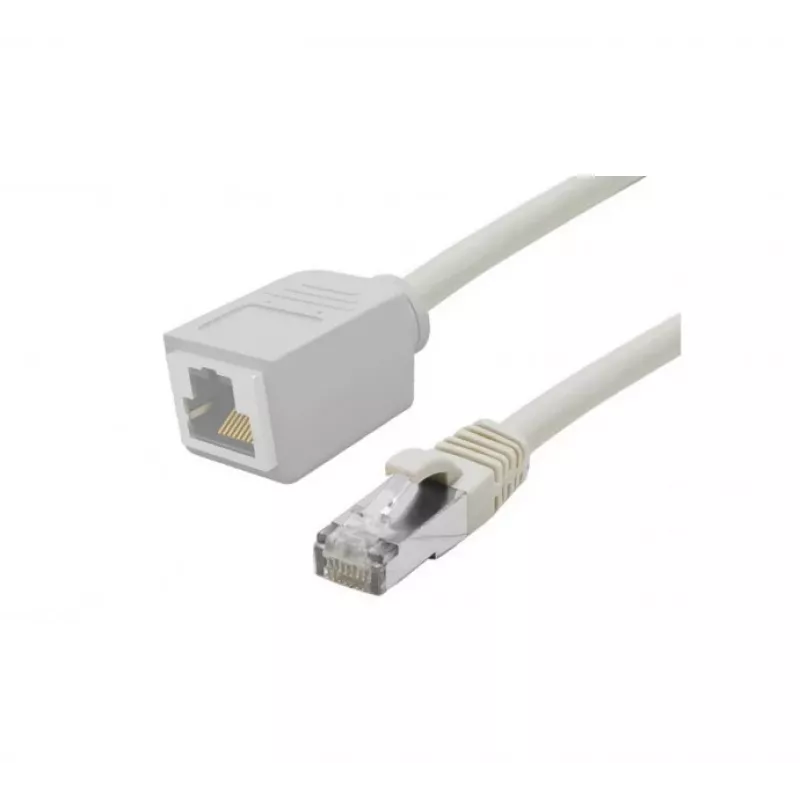

EXERTIS CONNECT Extensão de cabo de rede Cat. 6A S/FTP, sem halogéneos, cinzento, 1,0 m 858750

When a standard patch cable falls short, this 1-meter Cat. 6A extension bridges the gap without sacrificing signal quality. It's built for high-density 10 Gigabit Ethernet links where a permanent link is impractical.

Who is it for

Network installers and IT staff who need a reliable, halogen-free extension for shielded Cat. 6A runs in offices, data centers, or industrial settings.

Main features

• Cat. 6A (Class EA) performance up to 500 MHz
• S/FTP (PiMF) shielding: overall braid plus foil per pair
• Halogen-free LSZH jacket for low smoke and toxicity
• RJ45 male to RJ45 female, shielded connectors
• Molded boot with latch protection on the male end
• Stranded copper conductors, AWG 26/7
• 1:1 pin assignment (T568B)
• Supports 10GBASE-T up to 100 m channel length

Specifications

• Length: 1.0 m
• Colour: Grey
• Shielding: S/FTP (PiMF)
• Jacket: LSZH / halogen-free
• Connector 1: RJ45 male, shielded
• Connector 2: RJ45 female, shielded
• Conductor: Copper, stranded 7-wire, AWG 26/7
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flammability: IEC 60332-1
• Operating temperature: -20°C to +60°C

Tips

Use this extension only when necessary; each connection adds insertion loss. For best results, keep total channel length within Cat. 6A limits.
