EXERTIS CONNECT Ficha RJ45 de montagem no campo, Cat.6A, STP, ângulo ajustável (920822)

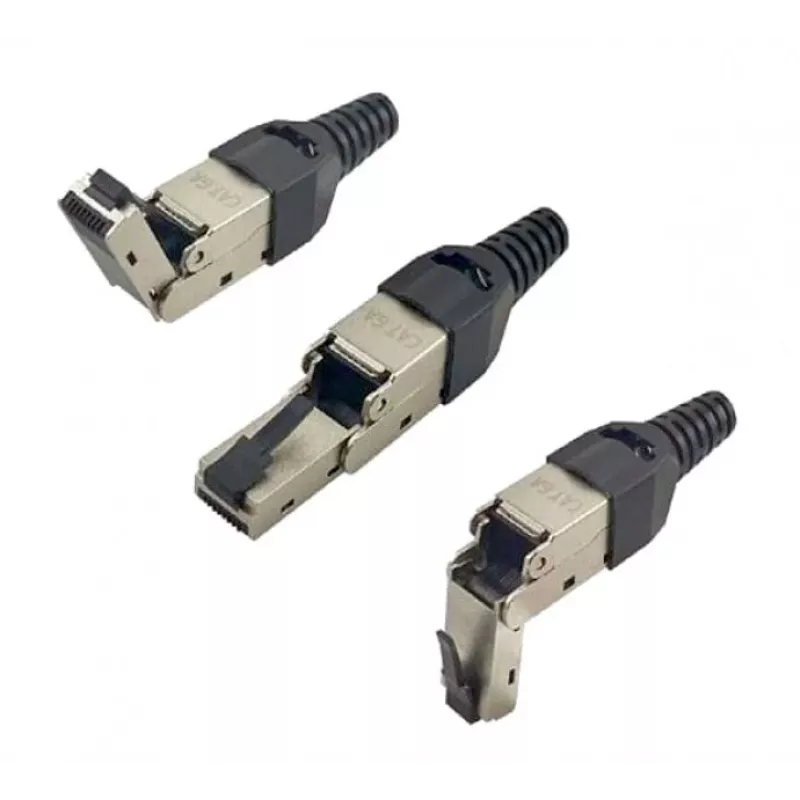

Terminating shielded Cat.6A cable in the field often means juggling crimp tools, dies and awkward angles. This field-terminable RJ45 plug eliminates that hassle: a tool-less IDC mechanism locks solid or stranded conductors into place, and the adjustable housing lets you set the cable exit to 90° or 270° to suit tight patch panels, wall outlets or equipment ports.

Who is it for

Network installers, data centre technicians and industrial maintenance teams who need fast, reliable 10-Gigabit Ethernet terminations without carrying a full crimp kit. It is equally useful for office cabling upgrades and PoE device deployments.

Main features

• Tool-less field termination for Cat.6A shielded twisted pair (STP) cable
• Adjustable cable exit angle (90°/270°) for confined spaces
• Supports solid and stranded wires, AWG 22–26, cable OD 5.0–9.0 mm
• Zinc die-cast nickel-plated housing, gold-plated contacts (50µ")
• PoE, PoE+ and 4PPoE (IEEE 802.3af/at/bt) compatible
• Colour-coded T568A/T568B wiring, reusable up to 10 cycles

Specifications

• Connector type: RJ45 plug, 8P8C
• Performance: Cat.6A, 10 Gigabit Ethernet
• Shielding: STP
• Termination: field-terminable, tool-less IDC
• Wire compatibility: solid and stranded
• Wire gauge: AWG 22–26
• Max cable outer diameter: 5.0–9.0 mm
• Housing: zinc die-cast, nickel-plated
• Contact plating: gold, 50µ"
• PoE support: PoE, PoE+, 4PPoE
• Wiring scheme: T568A & T568B
• Reusability: up to 10 cycles
• Operating temperature: -10°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

Use a cable stripper to expose exactly the required conductor length, then follow the colour code printed on the IDC block. For PoE++ (4PPoE) links, verify that the cable is Cat.6A or higher and properly bonded to ground at the patch panel.
