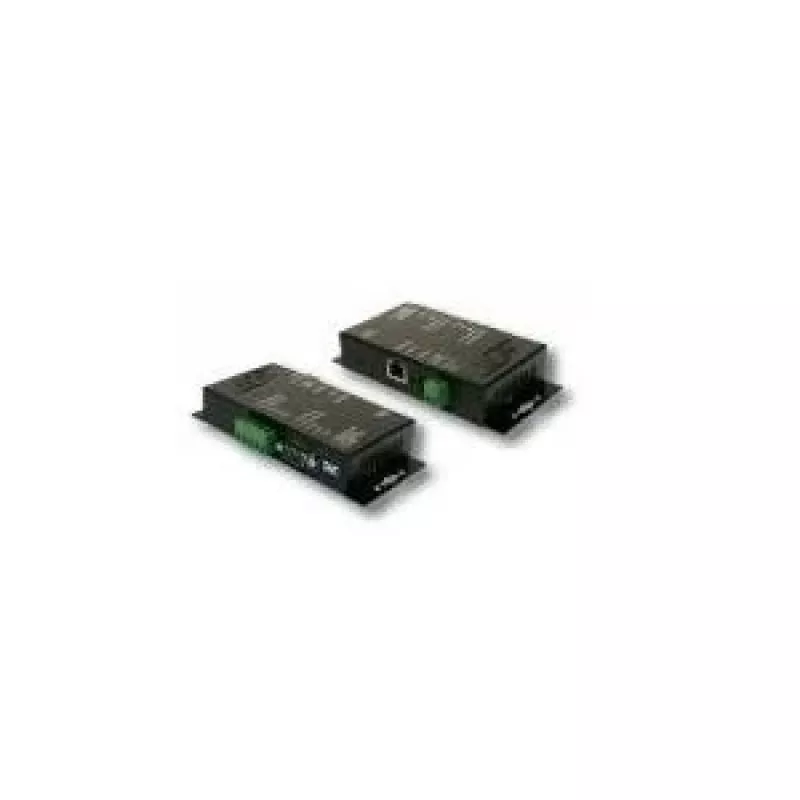

EXSYS EX-6051POEIS extensor / repetidor PoE industrial, 10/100 Mbit/s, IEEE 802.3at, montagem em calha DIN, caixa metálica, -40 a 75°C

Industrial-grade PoE extender/repeater that regenerates both power and data to extend Ethernet and Power over Ethernet beyond the standard 100-meter limit. With IEEE 802.3at compliance, it delivers up to 30 W to remote devices while supporting 10/100 Mbit/s full-duplex communication. Housed in a rugged IP30 metal enclosure, it operates reliably from -40°C to 75°C and mounts easily on a DIN rail or wall.

Advantages

This device eliminates the need for local power outlets at remote locations by passing through PoE power from the input to the output. It can be daisy-chained to reach distances of several hundred meters, making it ideal for IP cameras, wireless access points, and other PoE-powered endpoints in challenging environments. The wide temperature range and robust metal housing ensure dependable performance in industrial settings.

Suitable for

• Extending PoE network segments in factories, warehouses, and outdoor installations
• Powering IP surveillance cameras, VoIP phones, and access points beyond 100 m
• DIN-rail or wall-mounted deployments in control cabinets and enclosures
• Applications requiring IEEE 802.3af/at compatibility and surge protection

Key specifications

• 1× PoE input (RJ45, PD) and 1× PoE output (RJ45, PSE)
• Supports IEEE 802.3af/at, 10/100Base-TX, full duplex
• Max PoE output: 30 W; input voltage 48–57 V DC via PoE
• Extends network by 100 m per unit; daisy-chain for longer distances
• Operating temperature: -40°C to 75°C; storage: -40°C to 85°C
• Humidity: 5–95% RH non-condensing; IP30 metal housing
• LED indicators: Power, PoE In, PoE Out, Link/Activity
• ESD and surge protection; certifications: CE, FCC, RoHS

Recommendations

For reliable PoE extension in harsh industrial environments, pair this extender with shielded Cat5e/Cat6 cables and ensure the PoE source (switch or injector) provides sufficient power budget for the extender and the connected device.
