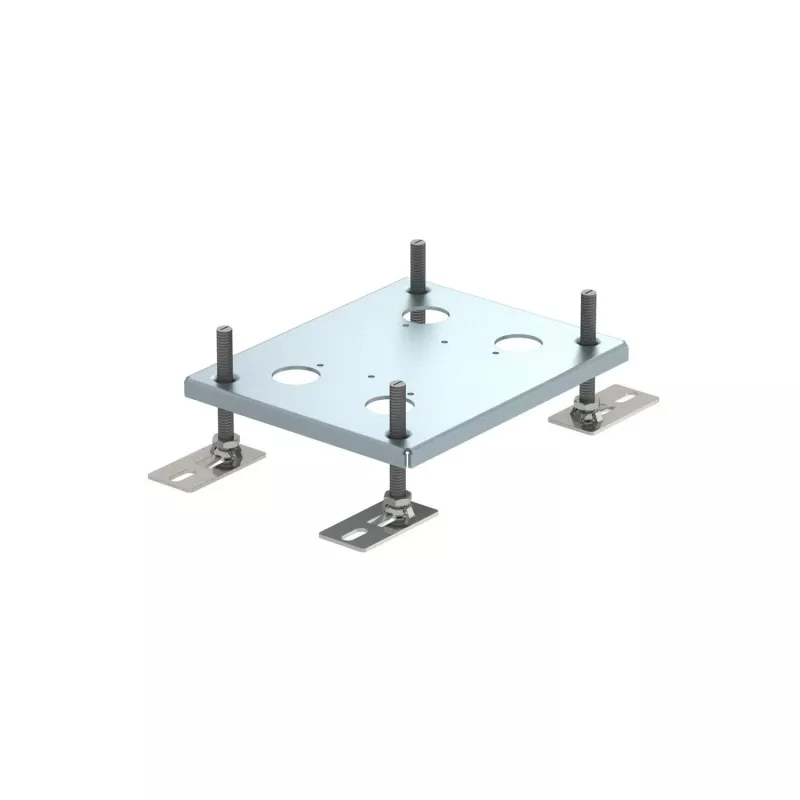

Extensão de altura OBO Bettermann UDHOME2 60 mm, aço, prateado (7368418)

When a UDHOME2 floor box lacks the internal depth needed for modern devices or cabling, this height extension solves the problem by adding 60 mm of installation space. It fits directly into compatible UDHOME2 models, creating room for deeper inserts, connectors, or cable management without replacing the entire floor box.

Who is it for

Electricians, installers, and facility managers working with OBO Bettermann UDHOME2 floor boxes who need extra depth for power, data, or multimedia connections in commercial or residential projects.

Main features

• Adds 60 mm installation depth to UDHOME2 floor boxes
• Compatible with UDHOME2-2R, UDHOME2-2S, and UDHOME2-2T models
• Steel construction with electro-galvanized surface treatment
• Square shape, 250 x 250 mm footprint
• Internal screw-fastened mounting

Specifications

• Product type: Height extension
• Material: Steel
• Surface treatment: Electro-galvanized
• Colour: Silver
• Overall length: 250 mm
• Overall width: 250 mm
• Overall height: 60 mm
• Added installation depth: 60 mm
• Mounting method: Internal, screw-fastened
• Shape: Square
• Number of units: 1
• Standards compliance: DIN EN 50085-2-2
• Halogen-free: No

Tips

Verify your UDHOME2 model before ordering. The extension is designed for internal mounting and requires the floor box to be accessible from above. For best results, follow the installation instructions provided by OBO Bettermann.
