Extensão de corrente Bachmann 19'' 2m 8 IEC320 C13 H05VV-F 3G 1,50mm²

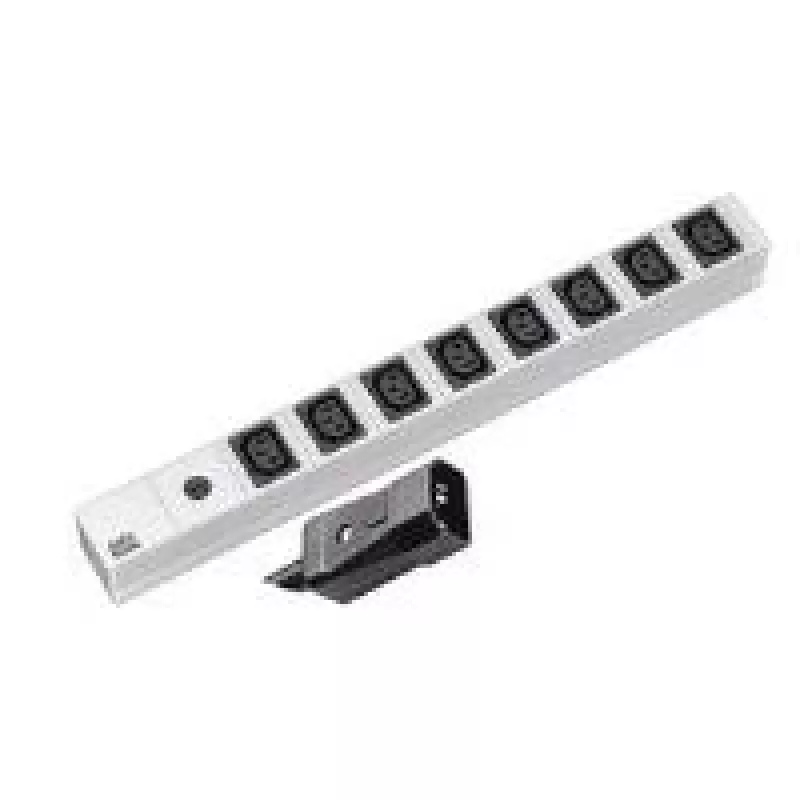

Bachmann 19" power extension with an aluminium profile and a 2 m H05VV-F cable. The unit provides eight IEC 320 C13 appliance sockets and is equipped with a wired IEC C14 inlet and a replaceable miniature 10 A fuse. The housing is silver with black socket inserts and is designed for installation in a 1 U, riveted end-cap 19" rack strip.

Advantages

The aluminium profile ensures a lightweight but sturdy housing suitable for rack mounting. Eight IEC 320 C13 outlets allow powering multiple devices from a single 2 m supply cable. The fitted miniature 10 A fuse protects the circuit, and the IEC C14 input provides a standardised, easily replaceable power connection.

Suitable for

• Server racks and 19" equipment cabinets
• Workstations and AV racks requiring multiple IEC C13 outlets
• Small office or home network installations

Key specifications

• Quantity of AC outlets: 8 × IEC 320 C13 (black)
• Cable length and type: 2 m, H05VV-F 3G 1.50 mm²
• Power input: IEC C14 appliance plug
• Fuse: 1 × miniature fuse 10 A
• Form factor: 1 U, end caps riveted (does not open)
• Housing material and colour: aluminium profile, silver with black sockets

How to use

Mount the power extension into a compatible 19" rack using the riveted end caps. Connect an IEC C13-to-mains cable to the IEC C14 inlet to supply power. Plug devices into the IEC 320 C13 outlets. If the fuse blows, replace it with a miniature 10 A fuse of the same type while the unit is disconnected from mains.

Recommendations

Use within the rated 10 A current; avoid overloading the strip. Ensure proper ventilation around the aluminium housing and secure rack mounting to prevent strain on the power cable. Do not attempt to open the riveted end caps—service and fuse replacement should be carried out with the unit disconnected from mains and, if necessary, by qualified personnel.
