Extensão de energia 7x Schuko Bachmann 333.604 2m

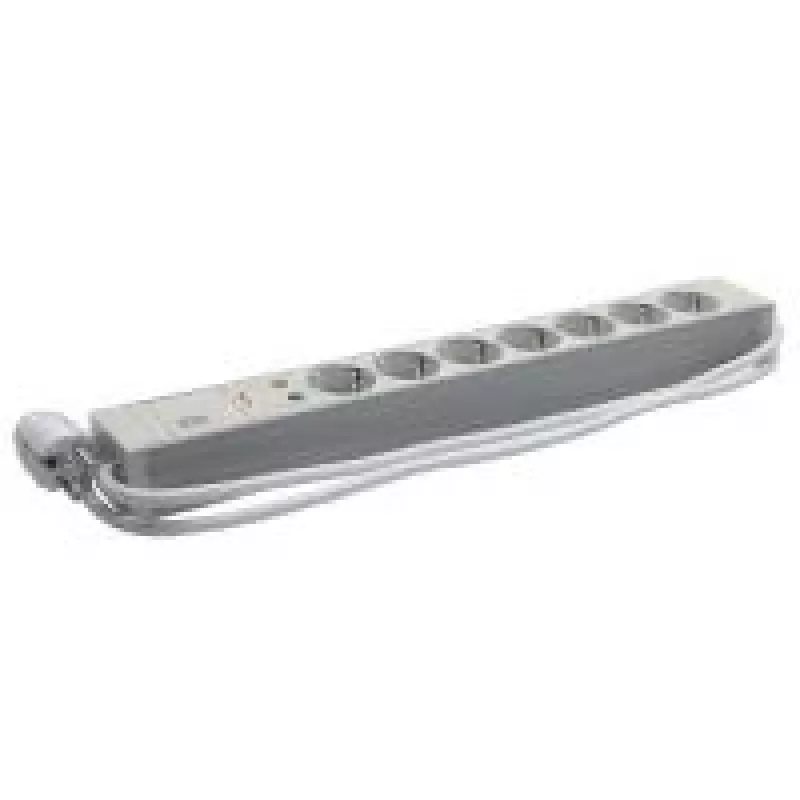

The Bachmann Power Extension 7x Schuko (model 333.604) is a compact power distribution unit in a torsionally rigid PVC profile with a depth of 44 mm and a usable height of more than 1 U (52 mm). It provides seven Type F (Schuko) earthed outlets arranged at a 35° angle and includes built-in electronics such as overvoltage protection and mains/frequency filters. The unit comes with a 2.0 m H05VV-F 3G 1.50 mm² grey cable terminated with a moulded right-angle plug featuring a dual earthing contact system and includes mounting brackets for secure installation.

Advantages

The device combines a rigid profile and durable PVC housing with integrated protective electronics to safeguard connected equipment against voltage spikes and interference. Its seven Schuko outlets and a 2 m cable offer convenient multi-device connection, while the angled socket arrangement and included mounting brackets simplify installation in desks, racks, or under counters. An illuminated 2-pole switch is available as an option.

Suitable for

• Home offices and study desks
• Office workstations and meeting rooms
• Under-desk or wall-mounted power distribution
• Connecting multiple small appliances and IT equipment

Key specifications

• Brand: Bachmann
• MPN: 333.604
• EAN: 4016514019366
• Cable length: 2 m (H05VV-F 3G 1.50 mm², grey)
• Number of AC outlets: 7 × Type F (Schuko) with earthing contact
• Profile depth: 44 mm; usable height > 1 U (52 mm)
• Sockets orientation: set at 35°
• Built-in features: overvoltage protection, mains and frequency filters
• Mounting: brackets included
• Optional: illuminated 2-pole switch

How to use

Place or mount the power extension using the supplied brackets in the desired location (desk edge, under-desk, or wall). Connect the moulded right-angle plug to a suitable mains socket. Plug devices into the seven Schuko outlets, observing device power ratings and ensuring the total load does not exceed the circuit capacity. If present, use the illuminated 2-pole switch to turn the unit on or off.

Recommendations

Use the Bachmann Power Extension indoors only; avoid exposure to moisture. Do not exceed the maximum current rating of the connected circuit. For sensitive equipment, ensure proper earthing and consider additional surge protection layers if required.
