Extensão de energia Bachmann 3x Schuko 2x GST18 preto prateado

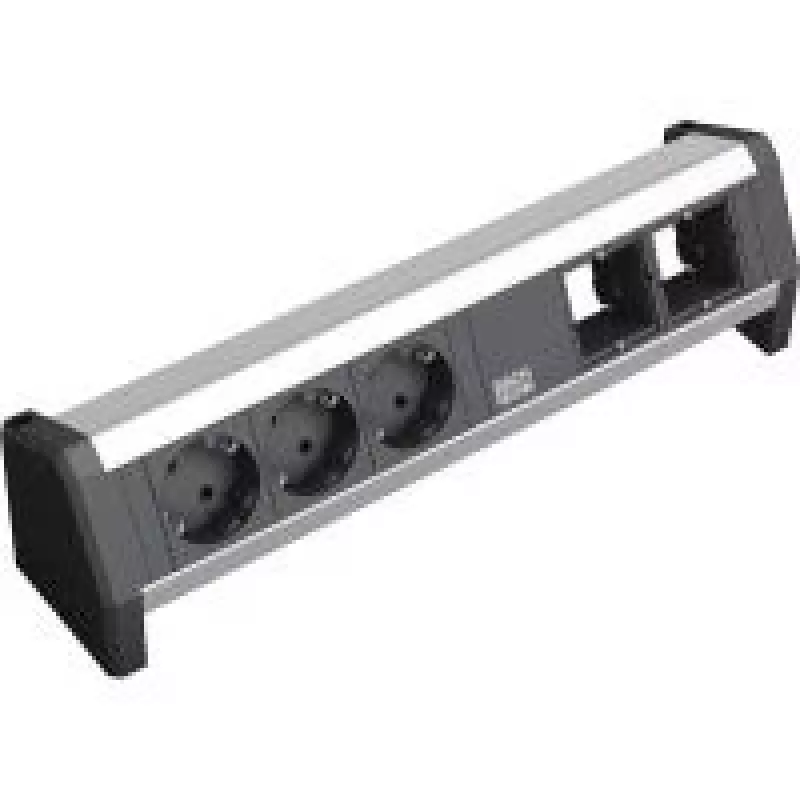

The Bachmann Power Extension (3x Schuko, 2x GST18) is a compact power distribution unit designed for desk-edge installation. It combines three grounded Type F AC outlets with two GST18 Wieland connectors for flexible power inlet and outlet options. The housing uses an anodised aluminium profile with black and silver finish and includes a neat 35° angled arrangement of the sockets for convenient cable routing.

Advantages

The integrated GST18 Wieland connector on the rear panel provides a secure, touch-safe connection with a catch mechanism that meets industry standards and allows easy release when required. A passthrough power output socket enables daisy-chaining of compatible modules. The anodised aluminium profile and plastic components ensure robust construction while keeping the unit lightweight. The angled placement of the three Schuko sockets improves access and cable management at the workstation.

Suitable for

• Individual office workstations — powering laptops, chargers and small peripherals
• Home offices where neat desk-edge power distribution is required
• Workspaces that require linking multiple power strips via GST18 connectors

Key specifications

• AC outlets: 3 × Type F (Schuko) with earth contact, angled at 35°
• Power connectors: 1 × GST18 input / 1 × GST18 output (Wieland)
• Length: 365 mm
• Material: Anodised aluminium profile and plastic
• Colour: Black, Silver
• Rated voltage/current: 230 V, up to 16000 mA (as per product data)

How to use

Install the unit on the edge of a desk or table using the supplied mounting bracket; tightening the internal bracket screw requires a size 4 Allen key. Connect the incoming mains supply to the GST18 inlet on the rear panel and, if needed, plug a GST18-equipped cable into the GST18 outlet to feed the next module. Plug devices into the three Schuko outlets. Ensure all connections are secure and comply with local electrical regulations before use.

Recommendations

The Wieland GST18 connector system allows chaining several compatible power strips in series; ensure the total load connected does not exceed the device’s rated current and follow local installation standards when routing cables and mounting the unit.
