Extensão elétrica Brennenstuhl 30m H07RN-F 5G2,5

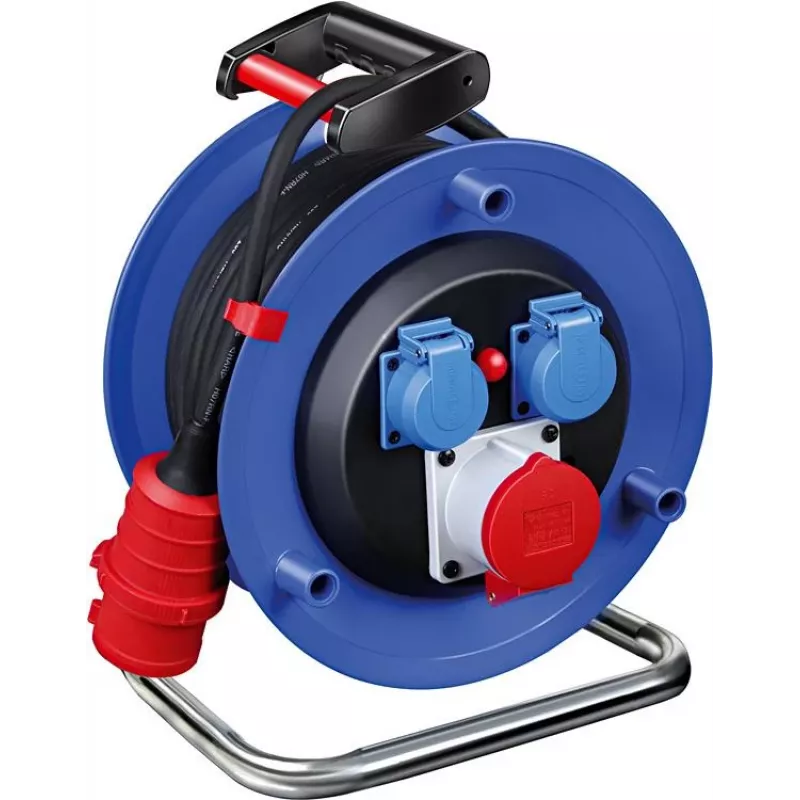

Power extension Brennenstuhl 30m H07RN-F 5G2,5 is a cable reel designed for universal outdoor use and for use on construction sites, with IP44 protection and compliance with EN 61316. The reel body is made from a special plastic mounted on a galvanized frame; it includes an ergonomic handle and axle to ensure precise cable management when winding and rewinding. The rubber-neoprene H07RN-F 5G2,5 cable is 30 m long and approved for site use according to VDE 0100 part 704.

Advantages

This cable reel provides a combination of site-approved RN cable quality and reinforced construction: earthed sockets are connected to separate phases, the unit has a 3-pin safety cut-out and built-in thermal overload protection, and the frame and reel design support frequent outdoor use. The compact reel diameter of 320 mm and ergonomic components simplify handling and storage.

Suitable for

• Outdoor power supply for tools and equipment
• Construction sites and temporary installations
• Workshops and garages requiring mobile power

Key specifications

• Cable length: 30 m
• Cable type and size: H07RN-F 5G2,5 (rubber-neoprene)
• Rated current: 16 A
• Voltage: 230 V (water-jet protected sockets), 400 V for CEE connections
• Sockets: 1 CEE plug 400 V/16 A, 1 CEE socket 400 V/16 A, 2 water-jet protected 230 V sockets
• Protection rating: IP44
• Standards: EN 61316, VDE 0100 part 704
• Reel diameter: 320 mm

How to use

Place the reel on a stable surface and check that the cable is fully rewound or properly unwound to the required length before connecting equipment. Connect appliances to the appropriate socket (230 V sockets for standard tools, CEE 400 V connections for three-phase equipment) and ensure the three-pin safety cut-out is engaged. Do not exceed the rated current of 16 A and monitor the thermal overload protection indicator during prolonged use. After use, disconnect all devices and rewind the cable neatly onto the reel using the ergonomic handle.

Recommendations

For safe and long-lasting operation, avoid prolonged exposure of the reel to direct sunlight and chemicals, keep the cable free of sharp edges, and do not operate the reel with damaged insulation. Use the product within its IP44 rating—do not immerse in water—and follow local regulations for site electrical installations.
