Extensão elétrica helos PROFESSIONAL montagem em rack 19 polegadas, 8 tomadas, 2,0 m cabo

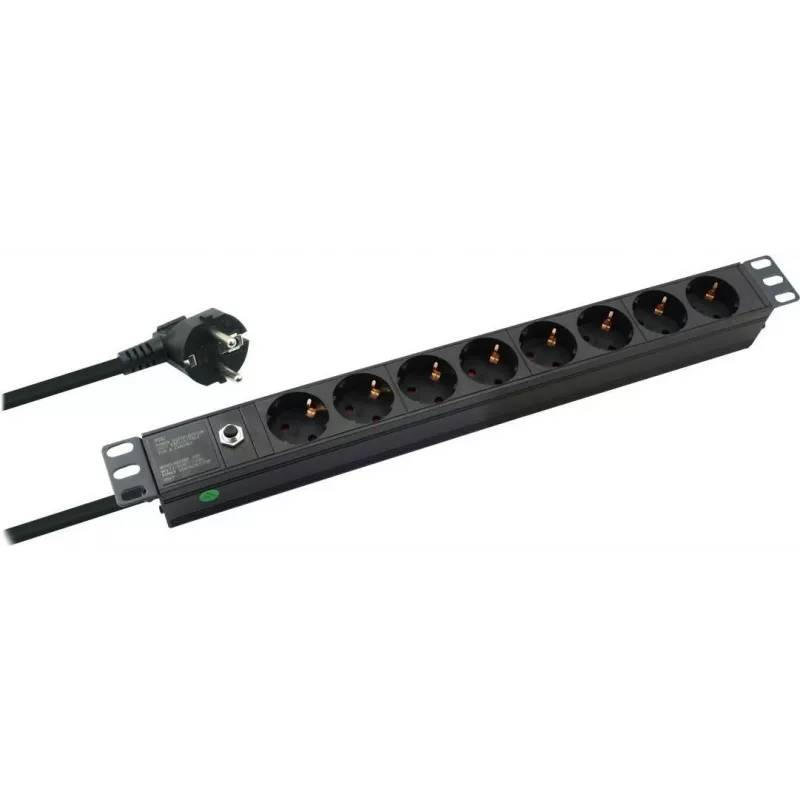

Rack-mount power strip helos PROFESSIONAL for 19" installations, 48.30 cm (1 HE) with eight grounded sockets rotated 45°, a 2.0 m supply cable and integrated surge protection. The aluminium housing and rack-compatible format provide centralized power distribution for servers, network devices and audio/video systems in server rooms, studios and IT closets. The unit is rated up to 16 A / 250 V (4000 W) and is VDE, CE and GS certified.

Advantages

The helos PROFESSIONAL 19" PDU features a robust aluminium enclosure, eight 45°-rotated CEE 7/4 (Schuko) sockets with child protection, and an integrated surge protection module. Its 2.0 m H05VV-F 3G1.5 mm² cable and 1.5 mm² conductor cross-section support reliable power delivery. Designed for rack mounting (1 HE), the compact shape simplifies cable routing and installation in professional environments.

Suitable for

• Server racks and data center cabinets
• Network and telecommunications equipment
• Audio/video racks and studio installations
• IT closets and equipment cabinets

Key specifications

• Brand: helos, model: PROFESSIONAL (MPN: 262834, EAN: 4005938628346)
• Form factor: 19" rack-mount, 48.30 cm (1 HE)
• Sockets: 8 × grounded (Schuko), 45° rotated, with child protection
• Cable: 2.0 m, type H05VV-F 3G1.5 mm²; conductor cross-section: 1.5 mm²
• Surge protection: integrated (ÜSS)
• Switch: without switch
• Rated current/voltage: 16 A / 250 V (max 4000 W)
• Housing: aluminium, color: black
• Certifications: VDE, CE, GS

How to use

Install the power strip in a 19" rack using standard mounting hardware occupying 1 HE. Connect the 2.0 m mains cable to a suitable, earthed supply outlet rated for 16 A/250 V. Plug equipment into the eight 45° rotated sockets, taking advantage of the rotated orientation for easier cable routing. Do not exceed the total rated power of 4000 W and ensure device inlet compatibility with Schuko sockets.

Recommendations

Place the PDU in a dry, ventilated rack space and distribute connected loads across the outlets to avoid concentrating the full current on a single circuit. For critical systems, use additional surge protection and follow local electrical regulations when integrating into server rooms or studio installations.
