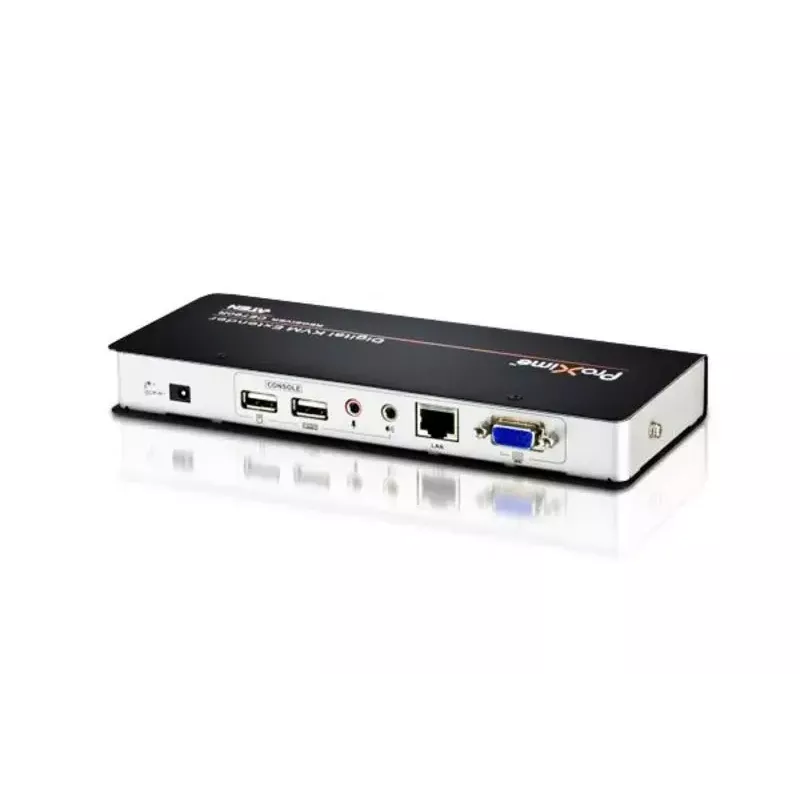

Extensor KVM ATEN USB VGA CE770-AT-G

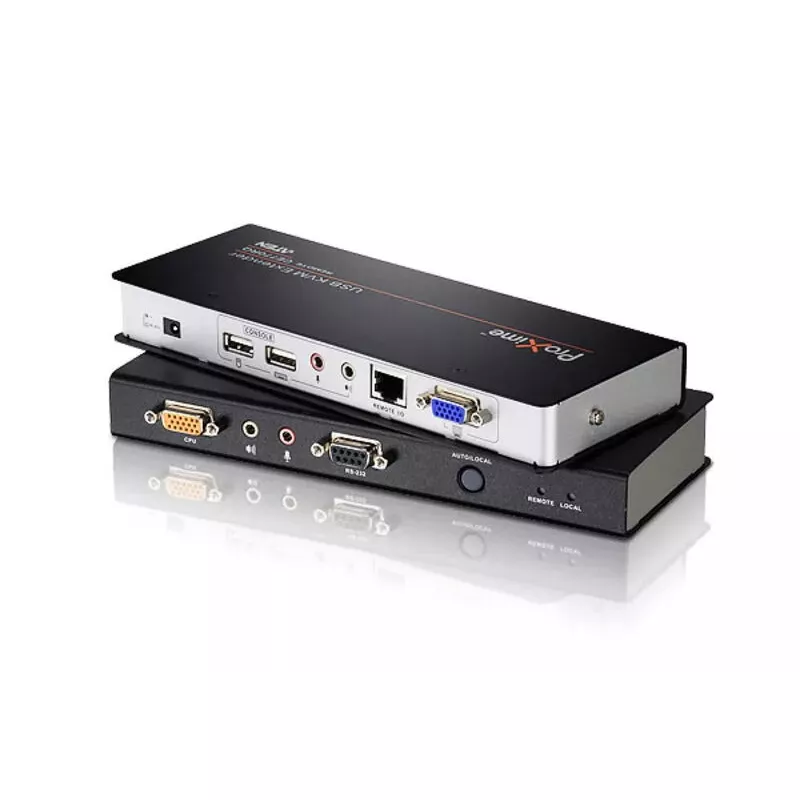

The ATEN KVM Extender USB VGA CE770-AT-G is a USB-based KVM extender that transmits VGA video, USB keyboard/mouse and audio signals up to 300 meters between a local and a remote unit. The kit includes a local unit (CE770L), a remote unit (CE770RQ), a USB KVM cable (1.8 m), two power adapters (0AD8-1605-24M1), a mounting kit and user instructions. The device supports RS-232 serial control and features deskew (automatic signal compensation) to maintain signal integrity over long distances.

Advantages

The CE770-AT-G provides long-distance extension of VGA and USB signals with built-in deskew for stable video quality and RS-232 support for serial device control. Its compact local unit and included mounting kit simplify installation in constrained spaces. The package contains both transmitter and receiver, along with power adapters and a standard USB KVM cable for out-of-the-box use.

Suitable for

• Remote access to desktop PCs and servers in control rooms and offices
• Industrial and manufacturing environments requiring serial device control via RS-232
• Situations where VGA video and USB input devices must be located far from the computer (up to 300 m)

Key specifications

• Model: ATEN CE770-AT-G
• Signal type: VGA video, USB HID (keyboard/mouse), audio, RS-232
• Maximum extension distance: up to 300 meters
• Kit includes: CE770L (local unit), CE770RQ (remote unit), 1.8 m USB KVM cable, 2 × 0AD8-1605-24M1 power adapters, mounting kit, user instructions
• Local unit dimensions (W×D×H): 20.2 cm × 8.64 cm × 2.5 cm
• Colour: Black
• Weight: 1.8 kg

How to use

Connect the CE770L local unit to the host computer using the supplied USB KVM cable and VGA/audio connections, then power both units with the included adapters. Place the CE770RQ remote unit near the remote console and connect the console's monitor, keyboard and mouse to the remote unit. Use RS-232 ports if serial control of equipment is required. The deskew function operates automatically to compensate for signal skew over the extended link.

Recommendations

For optimal performance, use high-quality VGA cables and ensure proper grounding. Keep cable runs within the specified maximum distance (300 m) and verify RS-232 settings when integrating serial devices. Mount the units using the supplied kit in ventilated locations to avoid overheating.
