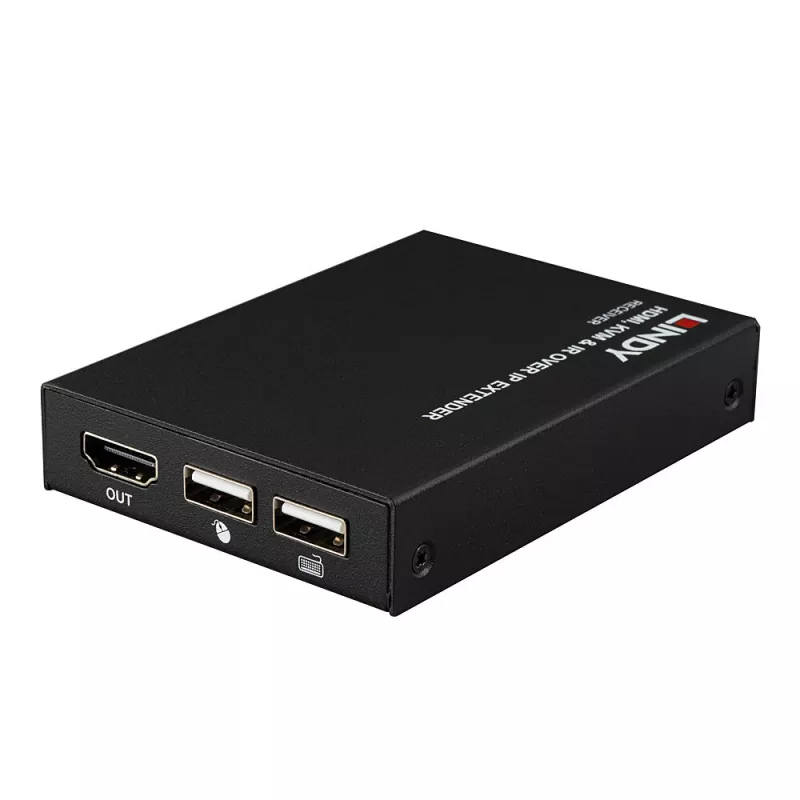

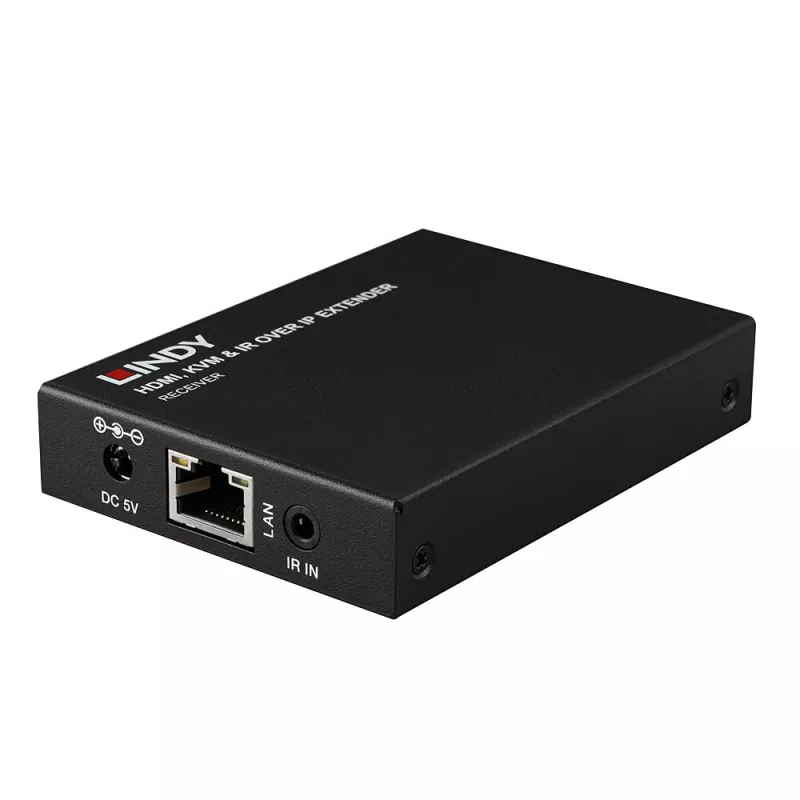

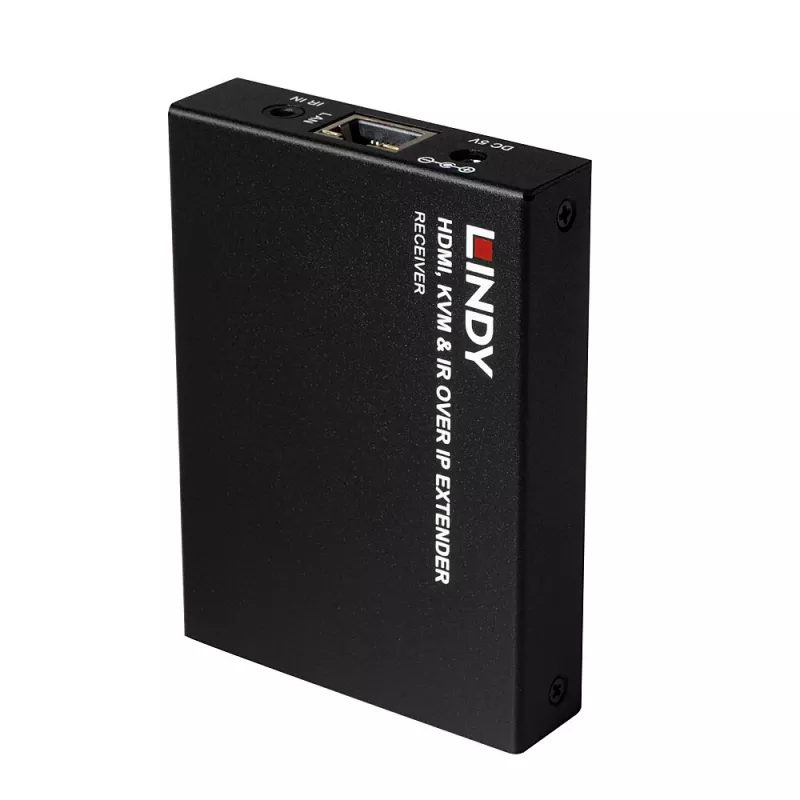

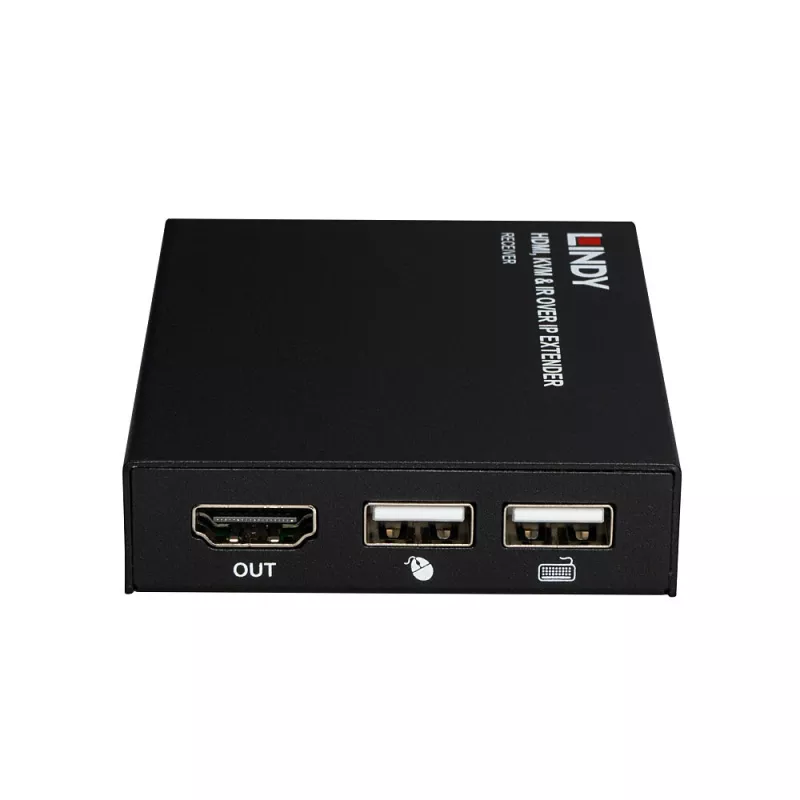

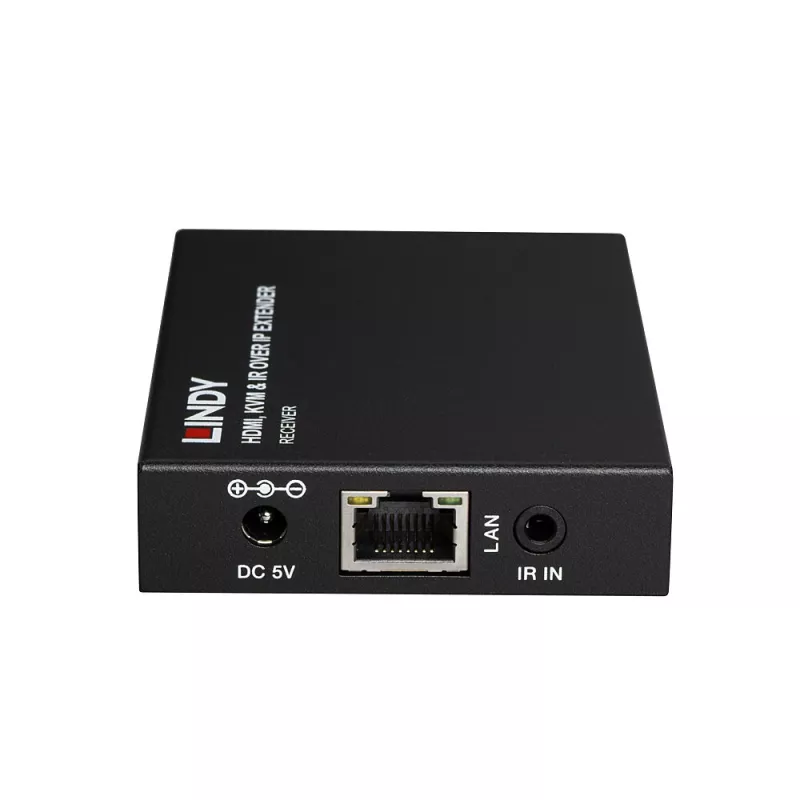

Extensor Lindy HDMI, KVM e IR over IP, recetor, transmissor e recetor, com fios, 150 m, Cat5e, Cat6, preto, metal

The Lindy HDMI®, KVM & IR over IP receiver is a supplementary solution for extending HDMI® and USB signals across greater distances via a local network setup and creating scalable IP installations by using multiple receivers when combined with 39320 and network equipment. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding receivers provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.



The installation is plug&play, no configuration needed also for point to multipoint over IP setups.



Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.



USB 1.1 HID ports are provided for KVM applications to connect mouse and keyboard and take control of the connected PC also in one to many installations.



Please Note: Use a dedicated network specially for larger installations. The HDMI® over IP Extender distributes in full 1080p resolution using H.265 video compression.


The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Lindy HDMI, KVM & IR over IP Extender, Receiver. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local keyboard/mouse port type: USB. USB port type: USB Type-A/USB Type-B. Transmitter width: 9.16 cm, Transmitter depth: 6.7 cm, Transmitter height: 1.75 cm. Package width: 170 mm, Package depth: 120 mm, Package height: 78 mm
