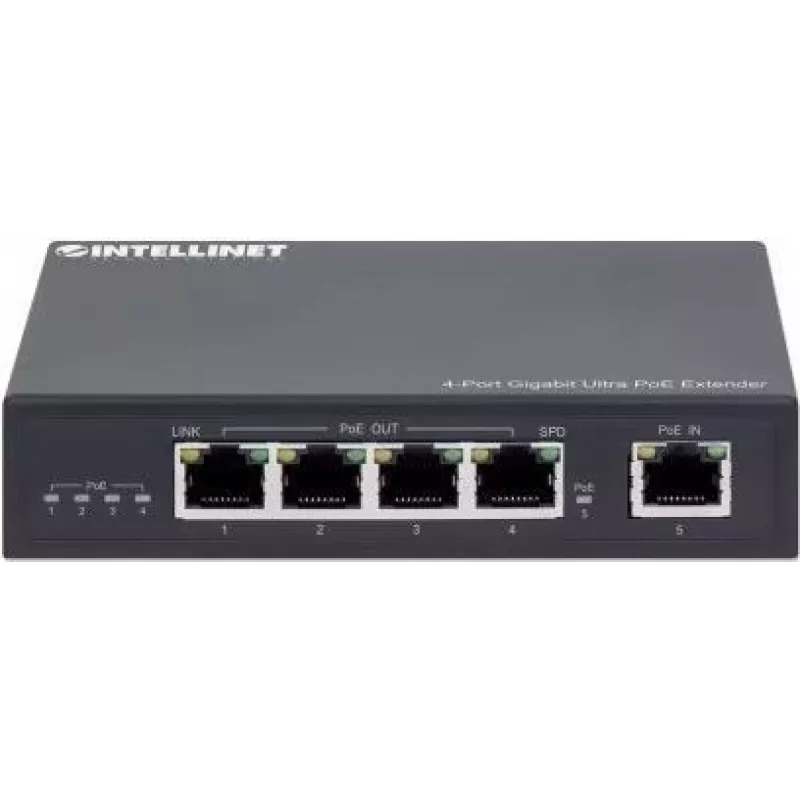

Extensor PoE Ultra Intellinet 4 portas Gigabit, aumenta o alcance PoE até 100 m, orçamento PoE de 90 W, quatro portas PSE com até 30 W de potência de saída, compatível com IEEE 802.3bt/at/af, caixa metálica

The Gigabit PoE Extender — for doubling the range of a Gigabit Power over Ethernet connection
The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to four output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.

Reduced Wiring Costs

This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Power over Ethernet 802.3bt Compliant

The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).

Simple Installation

This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).

Intellinet 4-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, 90 W PoE Power Budget, Four PSE Ports with up to 30 W Output, IEEE 802.3bt/at/af Compliant, Metal Housing. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 10000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 90 W, Power over Ethernet (PoE) voltage range: 44 - 57 V. Width: 130 mm, Depth: 86 mm, Height: 29 mm
