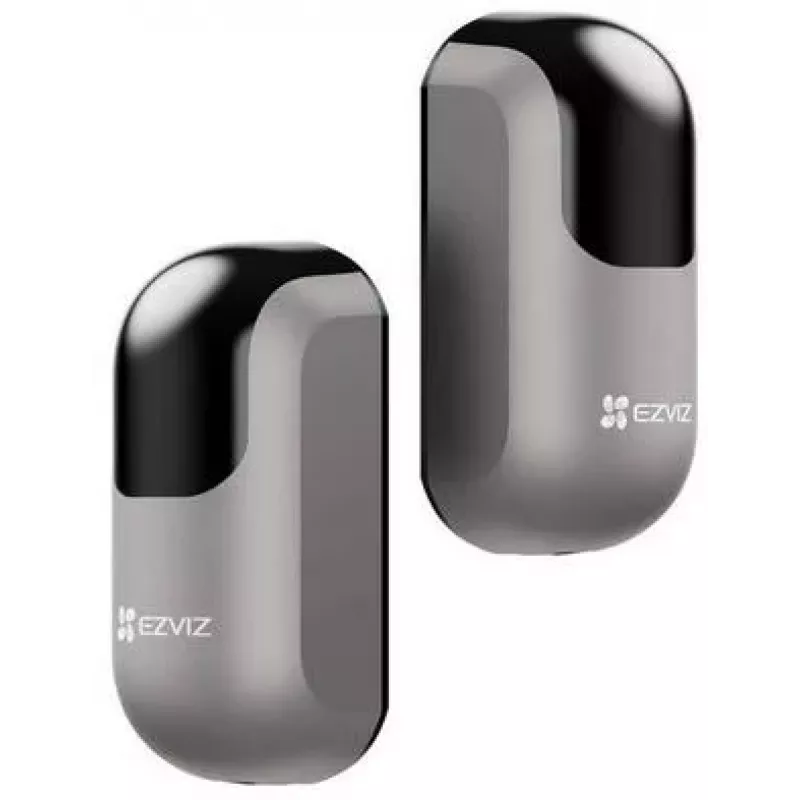

EZVIZ CS-HGD2-R100 Barreiras infravermelhas sem fios para acionamento de portões (1 emissor, 1 recetor)

The EZVIZ CS-HGD2-R100 is a set of wireless infrared photocells designed for gate automation systems. This kit includes one transmitter and one receiver, providing reliable detection up to 10 meters. Ideal for enhancing safety and convenience, these photocells are compatible with most gate openers and feature an IP55 weatherproof rating for outdoor use.

Advantages

Easy wireless installation at 433 MHz eliminates the need for wiring between the transmitter and receiver. The transmitter operates on two AA batteries with up to 2 years of typical life, while the receiver is powered by 12-24V DC. The relay output (NO/NC selectable) integrates seamlessly with existing gate controllers. Anti-tamper alarm and low battery reminder ensure ongoing security.

Suitable for

• Residential and commercial gate automation systems
• Driveway and entrance safety applications
• Retrofit or new installations requiring wireless photocells

Key specifications

• Product Type: Wireless Infrared Photocells
• Detection Range: Up to 10 meters (33 ft)
• Wireless Frequency: 433 MHz
• Transmitter Power Supply: 2 x AA Batteries (not included)
• Receiver Power Supply: 12V DC - 24V DC
• Transmitter Battery Life: Up to 2 years (typical)
• Output Type: Relay (NO/NC selectable)
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• IP Rating: IP55
• Installation Type: Wall-mounted
• Beam Type: Infrared
• Material: PC + ABS
• Safety Features: Anti-tamper alarm, Low battery reminder
• Compatibility: Universal with most gate openers
• Number of Units: 2 (1 Transmitter, 1 Receiver)

Recommendations

For optimal performance, install the photocells at a height of 30-60 cm above ground, ensuring a clear line of sight between transmitter and receiver. Use high-quality alkaline AA batteries for the transmitter. Test the system regularly to confirm proper operation.
