F-TRONIC quadro de contadores 3 campos Z31B H=1050mm 3-3.HZ 7141305

This F-TRONIC meter panel provides three meter positions and three distribution fields in a compact 1050 mm height, designed for residential and commercial electrical installations.

Overview

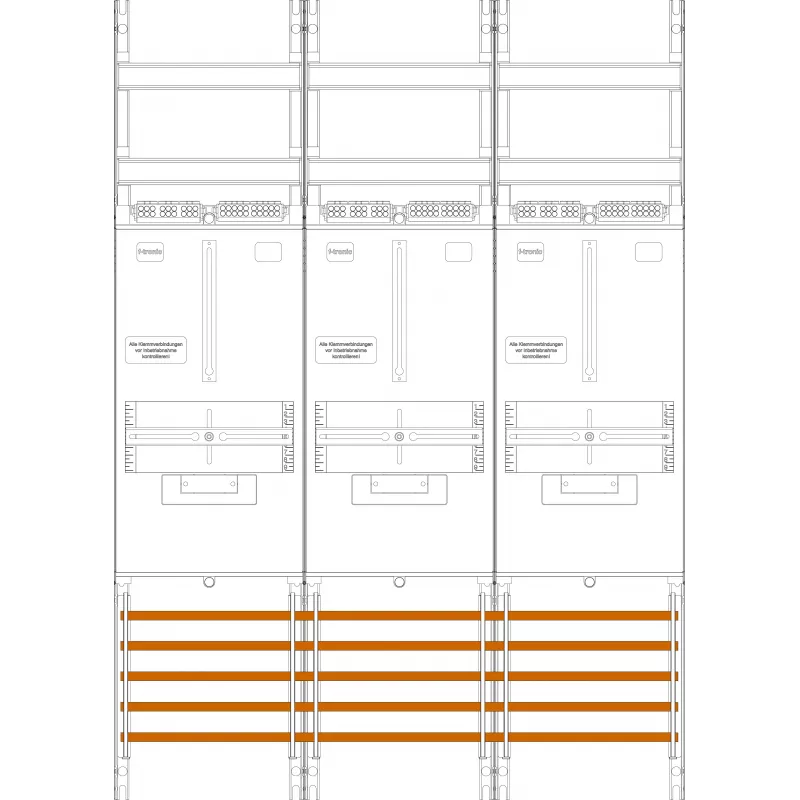

The F-TRONIC Z31B is a 3-field meter panel with a height of 1050 mm, width of 750 mm, and depth of 160 mm. It is constructed from sheet steel and intended for cabinet installation. The panel is unpopulated, allowing individual meter installation according to project requirements.

What stands out

• Three meter positions and three distribution fields for versatile configuration.
• 5-pole busbar system rated at 63 A for reliable power distribution.
• Each distribution field offers 12 TE (total 36 TE) for modular devices.
• Compatible with f-tronic universal cabinet systems.

Technical details

• Product type: Meter panel
• Number of meter positions: 3
• Number of distribution fields: 3
• Height: 1050 mm
• Width: 750 mm
• Depth: 160 mm
• Material: Sheet steel
• Mounting type: For cabinet installation
• Configuration: For 3 main meters (3.HZ)
• Rated current (busbar): 63 A
• Connection system: 5-pole busbar
• Number of TE per distribution field: 12 TE (total 36 TE)
• Meter type compatibility: Standard household meters (e.g., electronic or electromechanical)

Our verdict

A robust and flexible meter panel for professional electrical installations, offering ample space for meters and distribution modules.
