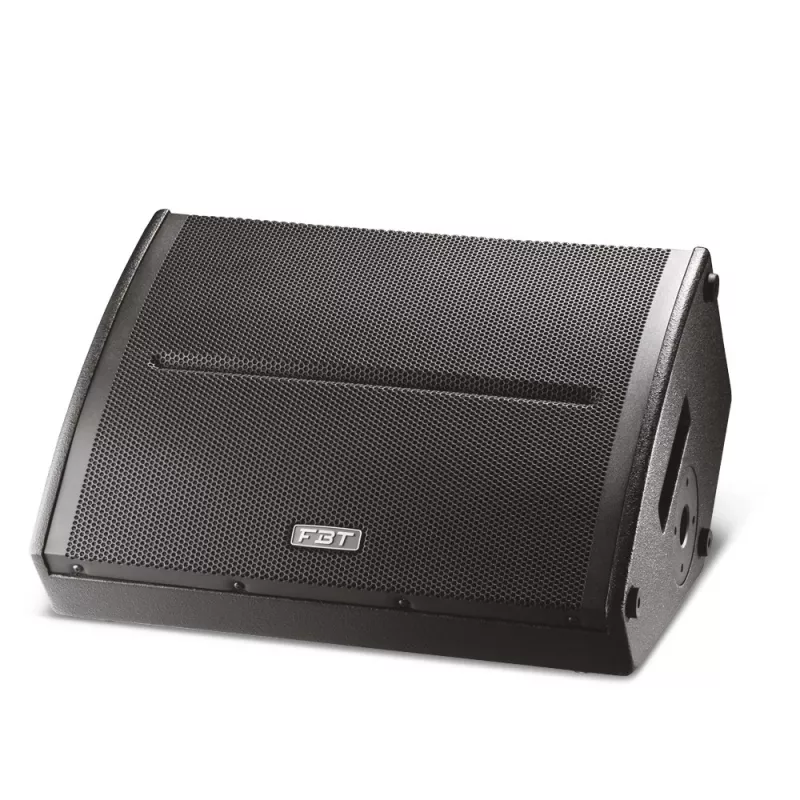

FBT X-Pro 112MA - monitor de palco ativo

Unlike conventional stage monitors that separate the woofer and compression driver, the FBT X-Pro 112MA employs a coaxial 12-inch woofer with a 1-inch compression driver, aligning acoustic centers for a natural, phase-coherent sound. This design delivers a seamless 90° conical dispersion, ensuring every performer hears themselves clearly even in tight spaces, while reducing ear fatigue during long sets.

Highlights

• Bi-amplified 750W RMS (600W LF Class D + 150W HF Class AB) for dynamic headroom
• Coaxial 12" woofer with 1" compression driver for uniform coverage
• DSP with 4 EQ presets to adapt to any stage or vocal style
• Birch plywood enclosure with full steel grille for road-ready durability
• 35° floor monitor angle and 35mm pole socket for versatile placement

In daily use

Set it as a wedge monitor and angle it up to 35° for optimal listening, or mount it on a pole for side-fill duties. The built-in DSP lets you switch between presets for flat response, vocal emphasis, or music playback, tailoring the sound to your performance. With XLR input and link output, chaining multiple monitors is straightforward, while PowerCON connectors ensure secure power linking on stage.

Full specifications

• Speaker configuration: 12" coaxial woofer with 1" compression driver
• Amplifier type: Bi-amplified, Class D (LF) and Class AB (HF)
• Power output: 600W RMS LF + 150W RMS HF (total 750W RMS)
• Frequency response: 50 Hz – 20 kHz (-6 dB)
• Maximum SPL: 129 dB peak
• Dispersion: 90° conical
• Crossover frequency: 2.5 kHz
• DSP: Yes, with 4 EQ presets
• Inputs: 1 x XLR input
• Outputs: 1 x XLR link output
• Power connector: PowerCON IN/OUT
• Enclosure material: Birch plywood
• Grille: Full steel grille
• Mounting options: 35mm pole mount socket, floor monitor angle
• Monitor angle: 35°
• Protection circuits: Thermal, RMS, limiter, overcurrent
• Power supply: Switching mode power supply

Final note

The FBT X-Pro 112MA combines coaxial precision, robust power, and flexible mounting in a road-ready package, making it an ideal choice for demanding stage monitoring applications.
