Fechadura elétrica de porta HARTTE XS12R-C série XS 12V

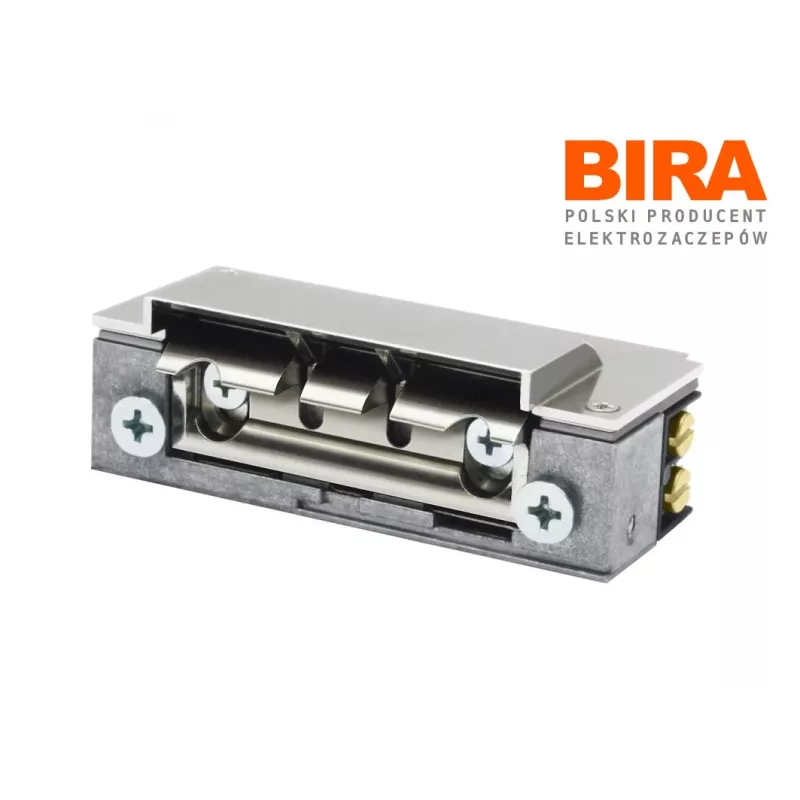

The HARTTE XS12R-C electric strike is a high-quality, fail-secure door locking solution designed for professional access control systems. Operating at 12V DC with a holding force of 3000 N, it is suitable for wooden, metal, and PVC doors in commercial and residential applications.

Advantages

This electric strike offers reliable security with a fail-secure mode, ensuring the door remains locked in case of power failure. Its reversible design allows for left or right-hand door installation, and the 3 mm latch bolt adjustment provides flexibility for various door frames. With a durability of 500,000 cycles, it ensures long-lasting performance.

Suitable for

• Access control systems for offices, hotels, and residential buildings
• Wooden, metal, and PVC doors
• Interior and exterior doors with standard mortise preparation

Key specifications

• Operating Voltage: 12V DC
• Operating Current: 250 mA
• Operating Mode: Fail-Secure (NC - Normally Closed)
• Holding Force: 3000 N (300 kg)
• Durability: 500,000 cycles
• Material: Zinc Alloy Body, Steel Faceplate
• Faceplate Dimensions: 75 x 20 mm
• Body Dimensions: 67 x 21 x 28 mm
• Installation Type: Mortise
• Operating Temperature: -20°C to +50°C
• Connection Type: Screw Terminals
• Protection Class: IP20

Recommendations

For optimal performance, pair this electric strike with a compatible 12V DC power supply and access control system. Ensure proper alignment during installation to achieve maximum holding force.
