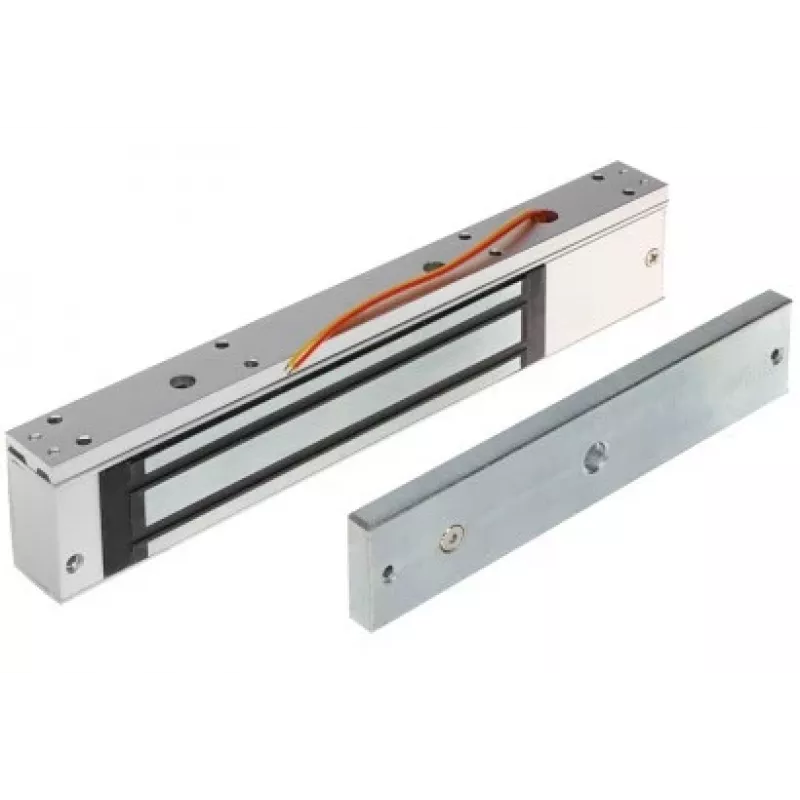

Fechadura eletromagnética de porta INNE ZE-280-5 280 kg força de retenção fail-safe montagem à superfície 12/24V DC com LED e proteção contra sobretensão MOV

Most electromagnetic locks force a choice between holding strength and longevity, but the INNE ZE-280-5 refuses that compromise. Its anodized aluminum body conceals a 280 kg (600 lbs) grip that secures wooden, glass, metal, and fireproof doors, while the built-in MOV surge protection shrugs off voltage spikes that would cripple lesser units. Selectable 12V or 24V DC operation and a fail-safe release make it a dependable anchor for high-traffic access control.

Highlights

• 280 kg (600 lbs) holding force secures wooden, glass, metal, and fireproof doors
• Fail-safe operation: unlocks automatically when power is removed, ensuring safe egress
• Selectable 12V DC (500 mA) or 24V DC (250 mA) input for flexible integration
• Built-in MOV surge protection guards against voltage spikes and transient surges
• LED status indicator provides clear visual confirmation of lock state
• Durable anodized aluminum alloy body with steel armature plate for long service life
• Surface mount design simplifies installation on door frames and glass doors

In daily use

The ZE-280-5 excels in offices, commercial buildings, and secure facilities where dependable access control is critical. Its fail-safe configuration releases the door instantly during power outages or emergency signals, meeting safety regulations. The lock operates quietly and remains cool even under continuous duty, while the LED indicator allows quick troubleshooting. With an operating temperature range of -10°C to +55°C and tolerance for high humidity (0-95% non-condensing), it performs reliably in diverse environments.

Full specifications

• Holding Force: 280 kg (600 lbs)
• Operating Voltage: 12V DC / 24V DC (selectable)
• Current Consumption (12V DC): 500 mA
• Current Consumption (24V DC): 250 mA
• Lock Type: Fail-Safe (Power to lock)
• Mounting Type: Surface Mount
• Lock Body Material: Anodized Aluminum Alloy
• Armature Plate Material: Steel
• LED Status Indicator: Yes
• Surge Protection: Built-in MOV (Metal Oxide Varistor)
• Operating Temperature: -10°C to +55°C
• Relative Humidity: 0-95% (non-condensing)
• Suitable Door Types: Wooden, Glass, Metal, Fireproof Doors
• Dimensions (Lock Body): 250 x 47 x 25 mm (L x W x H)
• Dimensions (Armature Plate): 180 x 38 x 11 mm (L x W x H)

Final note

Engineered for resilience, the INNE ZE-280-5 delivers a secure, fail-safe locking solution that stands up to daily demands without compromising safety or performance.
