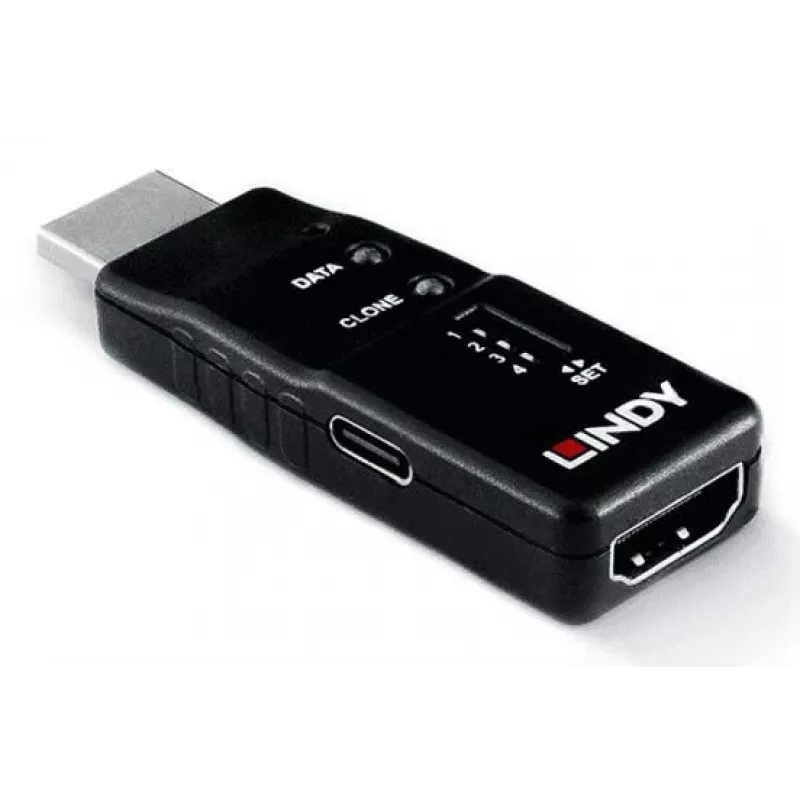

Feeder EDID LINDY HDMI 8K60

AV installers and system integrators often face EDID handshake issues when connecting sources to displays or matrix switches. The LINDY HDMI 8K60 EDID Feeder solves this by simulating a connected display, ensuring the source always outputs the correct resolution and audio format. This compact, bus-powered device is an essential tool for any HDMI installation where reliable signal negotiation is critical.

Key specifications

• HDMI Standard: HDMI 2.0
• Maximum Resolution: 3840x2160@60Hz (4K UHD)
• Color Subsampling: 4:4:4 8-bit
• HDCP Support: HDCP 2.2
• HDR Support: HDR10
• Bandwidth: 18 Gbps
• EDID Emulation: Pre-programmed & Learnable
• Audio Formats: LPCM 2.0/5.1/7.1, Dolby Digital, DTS-HD Master Audio
• Connectors: 1x HDMI Type A Male (Input), 1x HDMI Type A Female (Output)
• Power Source: HDMI Bus-powered
• Housing Material: ABS
• Operating Temperature: 0°C – 70°C
• Deep Color Support: Up to 12-bit
• Compliance: CE, FCC, RoHS, REACH

Why choose it

The LINDY HDMI 8K60 EDID Feeder eliminates the frustrations of blank screens, incorrect resolutions, and missing audio caused by EDID mismatches. Its learnable EDID function allows you to copy EDID from a specific display and then feed it to the source, ensuring perfect compatibility. The pre-programmed EDID profiles provide quick setup for common 4K and 8K configurations, saving time during installation. Being HDMI bus-powered, it requires no external power adapter, simplifying deployment.

Ideal use cases

• Digital signage systems where sources need stable EDID
• Kiosk and point-of-sale displays with non-standard EDID
• AV matrix switching environments with multiple displays
• Testing and troubleshooting HDMI links in production
• Extending cable runs by resolving handshake errors

Good to know

This EDID feeder supports ultra-fast 8K60 HDMI 2.1 signals (bandwidth up to 18 Gbps) and is backward compatible with 4K and 1080p devices. It is fully HDCP 2.2 compliant and supports HDR10, ensuring high-quality video transmission. The robust ABS housing withstands demanding conditions, and its wide operating temperature range makes it suitable for various environments.
