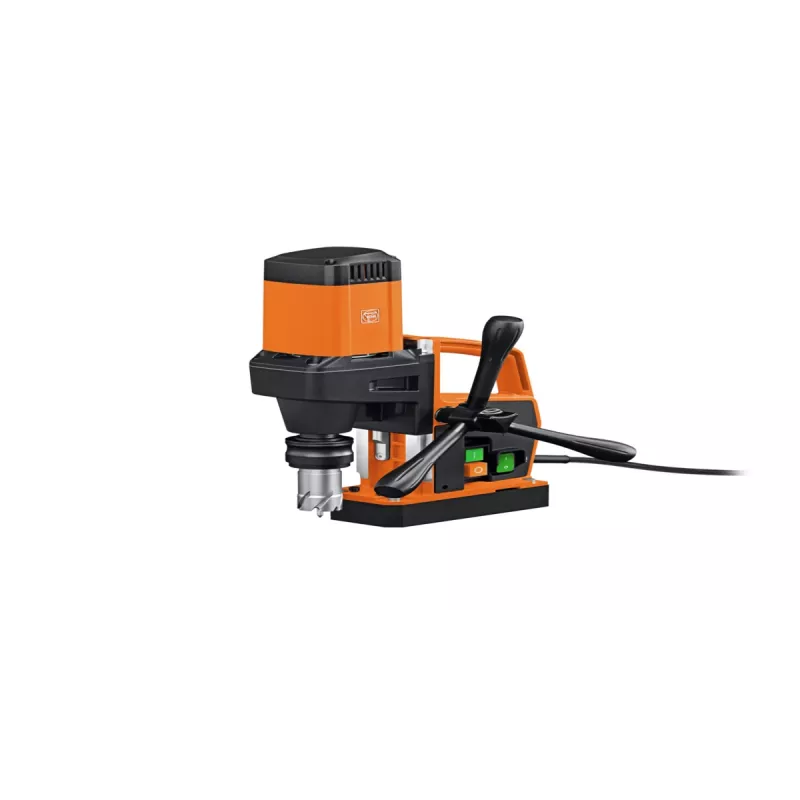

FEIN KBE 32 QW Broca de núcleo magnético 1 velocidade 1200 W com mala

Drilling large, precise holes in steel beams or plates on-site often means wrestling with heavy, unstable equipment that compromises accuracy and safety. The FEIN KBE 32 QW magnetic core drill eliminates that struggle by combining a powerful 1200 W motor, a 10,000 N magnetic base, and a compact single-gear design in one portable package. Whether you're fabricating steel structures, installing railings, or performing maintenance on heavy machinery, this tool delivers clean, chatter-free bores up to 32 mm in diameter without the need for a drill press.

Who is it for

Professional metalworkers, steel erectors, pipe fitters, and maintenance teams who need reliable, on-site drilling in ferrous materials. It's ideal for workshops and job sites where mobility, precision, and safety are paramount. If you regularly drill thick steel sections and demand consistent results, this core drill is built for you.

Main features

• 1200 W input motor with 620 W output for high-torque drilling in steel up to 32 mm core diameter.
• Powerful 10,000 N magnetic holding force keeps the drill rock-solid on vertical, horizontal, or overhead surfaces.
• Single-gear transmission optimized for core drilling: 700 rpm no-load, 450 rpm under load.
• Weldon 19 mm (3/4") tool holder accepts standard annular cutters and twist drills up to 13 mm.
• Integrated coolant tank with gravity feed extends cutter life and improves hole quality.
• Vario-Tacho-Constamatic (VTC) full-wave electronics maintain constant speed under load and provide soft start and overload protection.
• Compact and lightweight design with carrying case for easy transport and storage.

Specifications

• Power input: 1200 W
• Power output: 620 W
• Max. core drill diameter: 32 mm
• Max. spiral drill diameter: 13 mm
• Max. drilling depth: 50 mm
• No-load speed: 700 rpm
• Load speed: 450 rpm
• Tool holder: Weldon shaft 19 mm (3/4")
• Magnetic holding force: 10000 N
• Max. stroke: 160 mm
• Dimensions of magnet base: 160 x 80 mm
• Supply voltage: 230 V
• Cable length: 5 m
• Number of gears: 1
• Included accessories: Carrying case, safety strap, hex key SW 5, ejector pin

Tips

For best results, ensure the workpiece surface is clean and flat before engaging the magnet. Use a suitable cutting fluid and adjust the feed rate according to the material thickness. Always attach the safety strap when drilling vertically or overhead.
