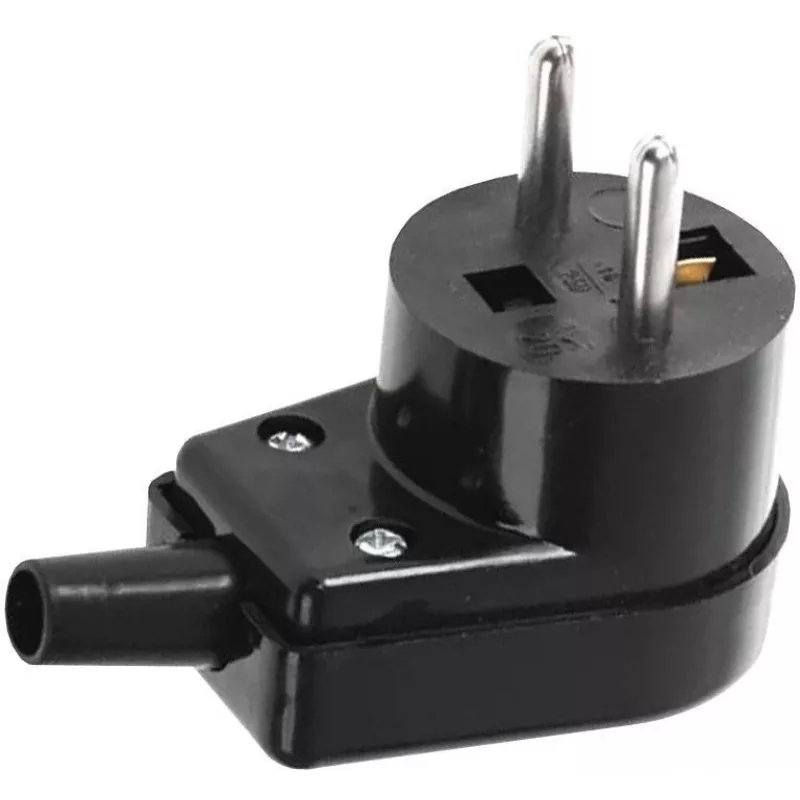

Ficha angular VIPLAST 220-05 16A 250V IP20 preto

In tight spaces behind furniture or inside cabinets, a standard straight plug can force cables into sharp bends, risking damage and disconnection. The VIPLAST 220-05 angled plug solves this by redirecting the cable at 90 degrees, keeping your setup neat and safe.

Who is it for

Electricians, technicians, and DIY enthusiasts who need a reliable, space-saving plug for indoor appliances, power tools, or extension leads. Ideal for use with standard European Schuko/French sockets (Type E/F).

Main features

• Angled cable entry (90°) for flush mounting in confined spaces
• Rated 16 A / 250 V AC for high-power appliances
• IP20 protection – suitable for dry indoor environments
• Robust thermoplastic housing in black
• Compatible with CEE 7/7 hybrid plug standard (Type E/F)
• Screw terminals accept cables up to 2.5 mm²

Specifications

• Brand: VIPLAST
• Model: 220-05
• MPN: 220-05
• EAN: 5906365211707
• Product type: Angled electrical plug
• Current rating: 16 A
• Voltage rating: 250 V AC
• IP rating: IP20
• Colour: Black
• Plug type: CEE 7/7 (Schuko/French hybrid)
• Number of poles: 2P+E (2 poles + earth)
• Grounding: Yes
• Connection type: Screw terminals
• Cable entry direction: Angled (90 degrees)
• Housing material: Thermoplastic
• Application environment: Indoor
• Maximum cable cross-section: Up to 2.5 mm²
• Mounting type: Cable mount
• Orientation: Angled
• Compatibility: Standard European sockets (Type E/F)

Tips

Ensure the plug is fully inserted into the socket and the cable is securely clamped. For optimal safety, use with cables rated for at least 16 A. Not suitable for outdoor or damp locations.
