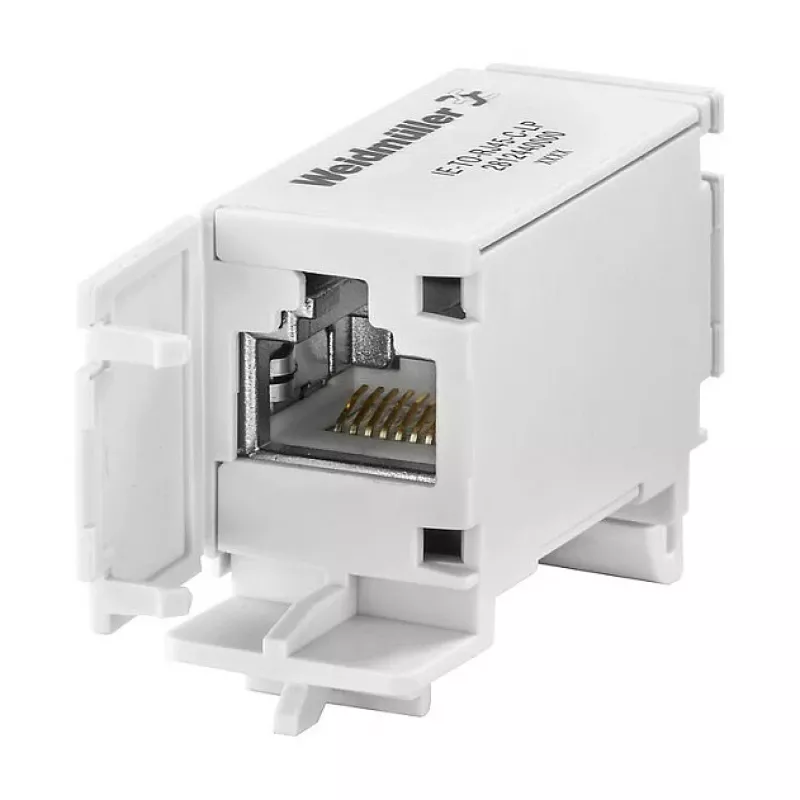

Ficha de campo RJ45 industrial Weidmüller IE-TO-RJ45-C-LP, Cat.6A, blindada, IDC sem ferramenta, zamak

Industrial Ethernet connectivity demands a field-termination RJ45 connector that combines high-speed performance with rugged, tool-less installation. The Weidmüller IE-TO-RJ45-C-LP delivers Cat.6A transmission up to 10 Gbit/s in a low-profile, shielded zinc die-cast housing, making it ideal for demanding automation environments.

Advantages

Tool-less IDC termination speeds up field assembly without sacrificing reliability. The shielded metal housing provides excellent EMI protection, while gold-plated contacts ensure long-term signal integrity. Its low-profile design fits into tight spaces, and the robust construction withstands industrial conditions.

Suitable for

• Industrial Ethernet networks requiring Cat.6A performance
• Field assembly of shielded patch cables in machinery and panel building
• Applications with PoE, PoE+, and PoE++ power delivery
• Harsh environments with temperature extremes from -40 °C to 70 °C

Key specifications

• Connector type: RJ45, 8P8C, shielded, IP20
• Category: Cat.6A, data rate up to 10 Gbit/s
• Termination: tool-less IDC for solid AWG 24/1–22/1 and stranded AWG 26/7–22/7
• Cable diameter: 4.5–8.0 mm
• Housing: zinc die-cast, nickel-plated; contacts: copper alloy, gold-plated
• Mating cycles: ≥750; standards: IEC 60603-7-51

Recommendations

For reliable, high-speed industrial Ethernet connections that can be terminated quickly in the field, the Weidmüller IE-TO-RJ45-C-LP is an excellent choice. Its Cat.6A rating and robust shielding make it future-proof for demanding automation networks.
