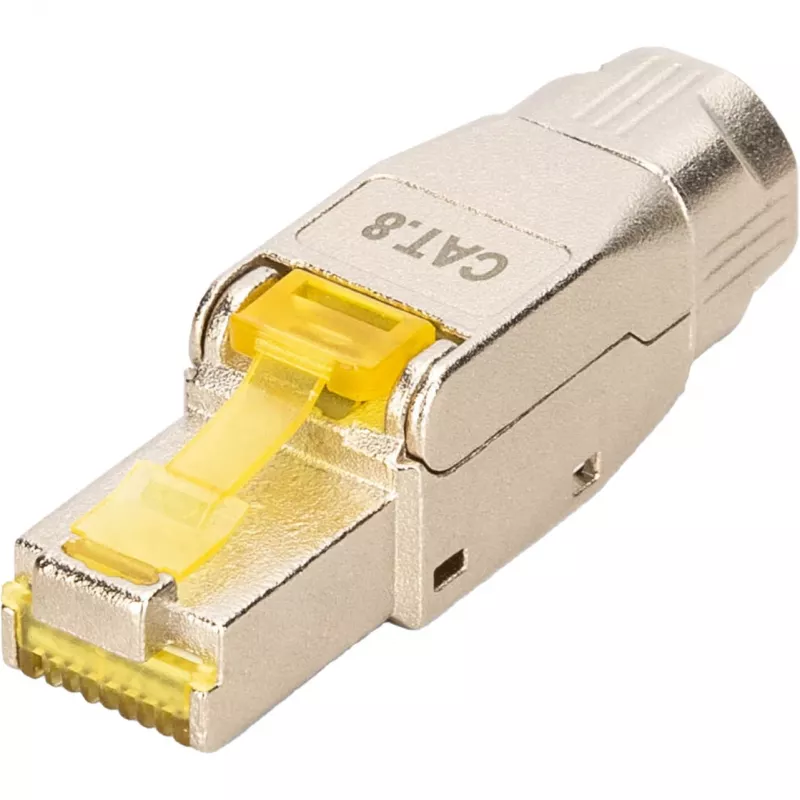

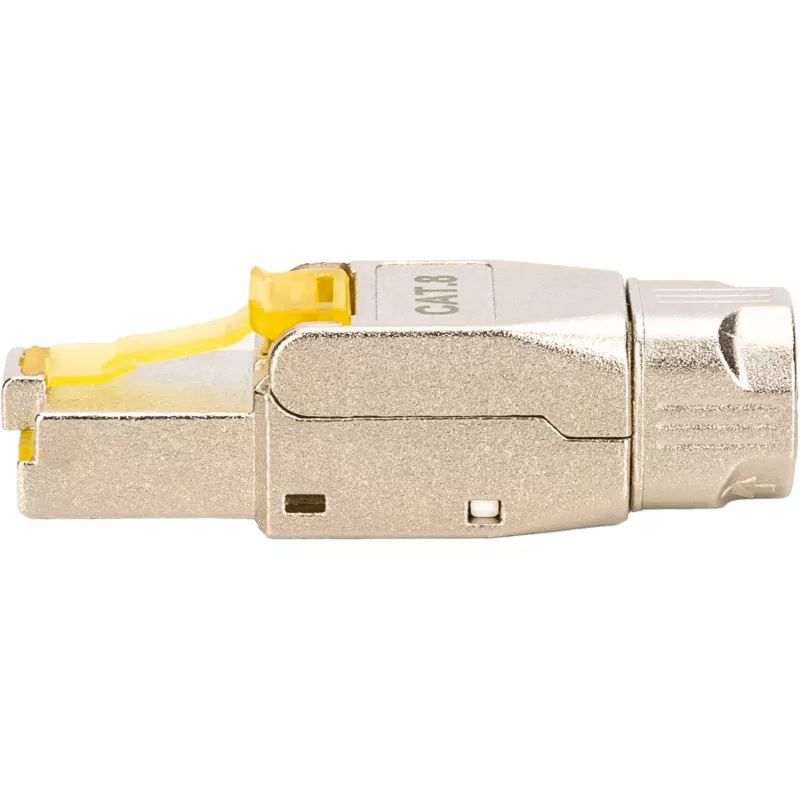

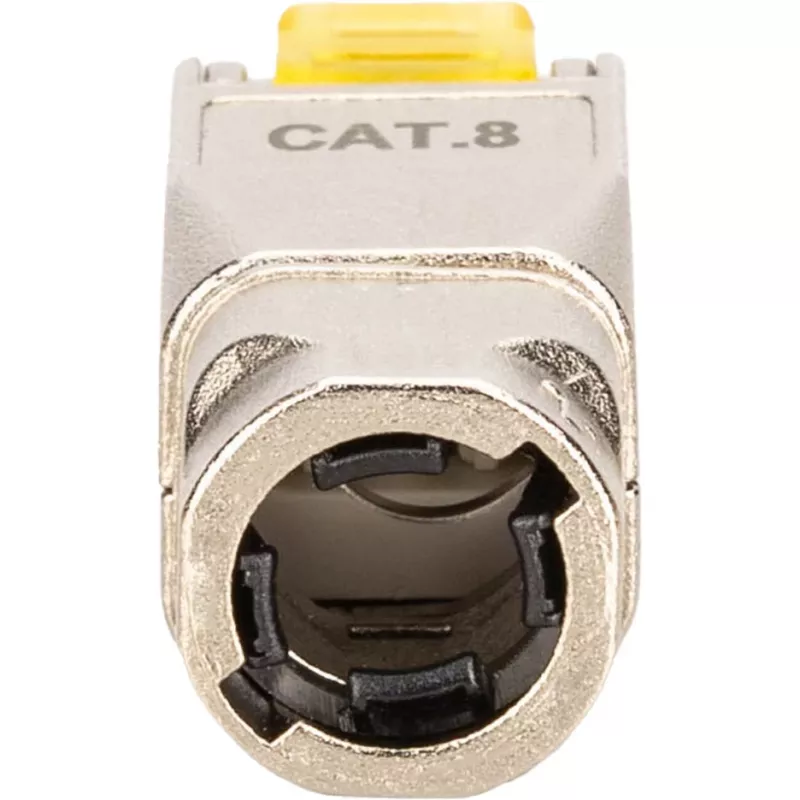

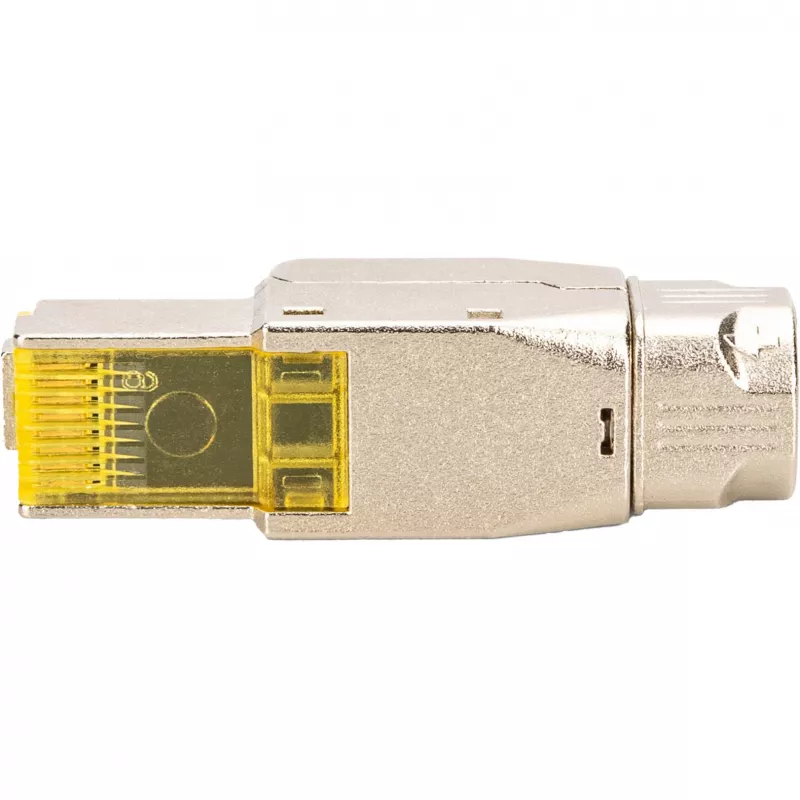

Ficha de montagem em campo Digitus CAT 8.1 DN-93838

The DIGITUS CAT 8.1 field connector DN-93838 is a shielded, tool-free RJ plug designed for high-speed copper networks. It supports 25/40GBase-T transmission in permanent links up to 24 m and channel links up to 30 m, and is suitable for installation on both solid and stranded conductor cables. The connector meets Category 8.1, ISO/IEC 11801 and IEC 60603-7-81 standards and features a robust metal housing for long-lasting, stable connections.

Advantages

The field connector provides high-speed transmission with a bandwidth of up to 2000 MHz, enabling 25/40GBase-T performance for ultra-fast networks. Its 360° shield contact minimizes electromagnetic interference and ensures consistent signal integrity. The tool-free, field-mount design allows quick installation, repair and maintenance without special tools, and the metal housing adds mechanical durability suitable for professional environments.

Suitable for

• Data centers and server rooms
• Enterprise and campus network backbones
• Industrial network installations
• Building cabling projects and telecommunications

Key specifications

• Standard: Category 8.1 / 25/40GBase-T
• Standards compliance: ISO/IEC 11801, IEC 60603-7-81
• Bandwidth: up to 2000 MHz
• Transmission speed: supports 25/40GBase-T
• Permanent link length: up to 24 m
• Channel link length: up to 30 m
• Compatibility: solid and stranded conductor cables
• Shielding: 360° shield contact
• Mounting: tool-free field connector
• Brand / MPN / EAN: DIGITUS DN-93838 / 4016032499381

How to use

Prepare the cable by stripping the outer sheath and arranging conductors according to the required wiring scheme. Insert the prepared solid or stranded cable into the connector body and close the tool-free housing according to the manufacturer's assembly instructions to ensure full 360° shielding contact. Verify correct seating and, if available, test the link with appropriate network certifiers or cable testers to confirm performance up to 25/40GBase-T.

Recommendations

Use the connector within the specified permanent and channel link lengths (24 m and 30 m respectively) and on cables that meet Category 8.1 requirements. For reliable high-speed performance, ensure proper cable preparation, secure 360° shielding contact and validate the installation with standard network testing tools.
