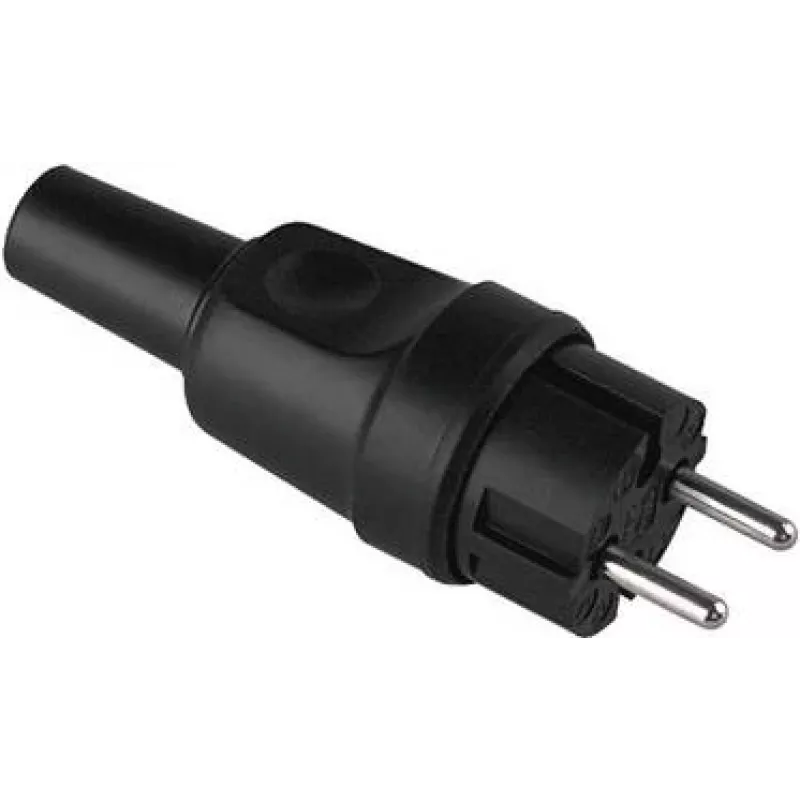

Ficha de rede Bachmann 919.179, 2 polos (2P), 250 V AC, 16 A, caixa de borracha preta

Bachmann 2‑pole power plug model 919.179 is designed for mains connections up to 250 V AC and a rated current of 16 A. The plug comes with a black rubber housing that provides electrical insulation and mechanical protection. It is intended for use without an earthing contact and can be mounted on flexible cables up to H07RN‑F 2 x 2.50 mm². The device is supplied in assembled condition and features a clip‑in function for secure installation into compatible sockets or housings.

Advantages

The rubber housing offers resistance to abrasion and improves grip during handling while helping to dampen mechanical shocks. Compact 2‑pole design keeps the connection straightforward where earthing is not required. The clip‑in mechanism ensures a reliable fit and reduces the risk of unintended disconnection. The product is suitable for repeated connection cycles and is designed for professional assembly to ensure safe electrical contact.

Suitable for

• Connecting mains-powered devices and appliances that require a 2‑pole connection
• Temporary or fixed installations in residential and office environments
• Light industrial equipment where a non‑earthed 2P plug is acceptable
• Use with flexible rubber‑insulated cables H07RN‑F 2 x 2.50 mm²

Key specifications

• Poles: 2‑pole (2P), no earth contact
• Rated voltage: 250 V AC
• Rated current: 16 A
• Compatible cable type and size: up to H07RN‑F 2 x 2.50 mm²
• Housing material: black rubber for insulation and mechanical protection
• Mounting: cable‑mounted, delivered assembled with clip‑in function

How to use

Installation and electrical connection must be performed by qualified specialists only. The plug is supplied assembled; to mount it on a cable, ensure the cable conforms to the specified type and conductor size (H07RN‑F 2 x 2.50 mm²). Follow standard safety procedures: disconnect power before work, strip the conductor insulation to the recommended length, insert conductors into the terminals and secure them according to the manufacturer’s torque specifications, then engage the clip‑in function to lock the plug into the mating socket or housing. Verify correct mechanical and electrical contact before returning the circuit to service.

Recommendations

Use this 2‑pole plug only where a non‑earthed connection is permitted by applicable regulations and the connected equipment is suitable for a 2P supply. Inspect the rubber housing and cable before each use for signs of damage or wear. Do not attempt to open or modify the assembled plug; service and installation must be carried out by qualified personnel.
